Product Description

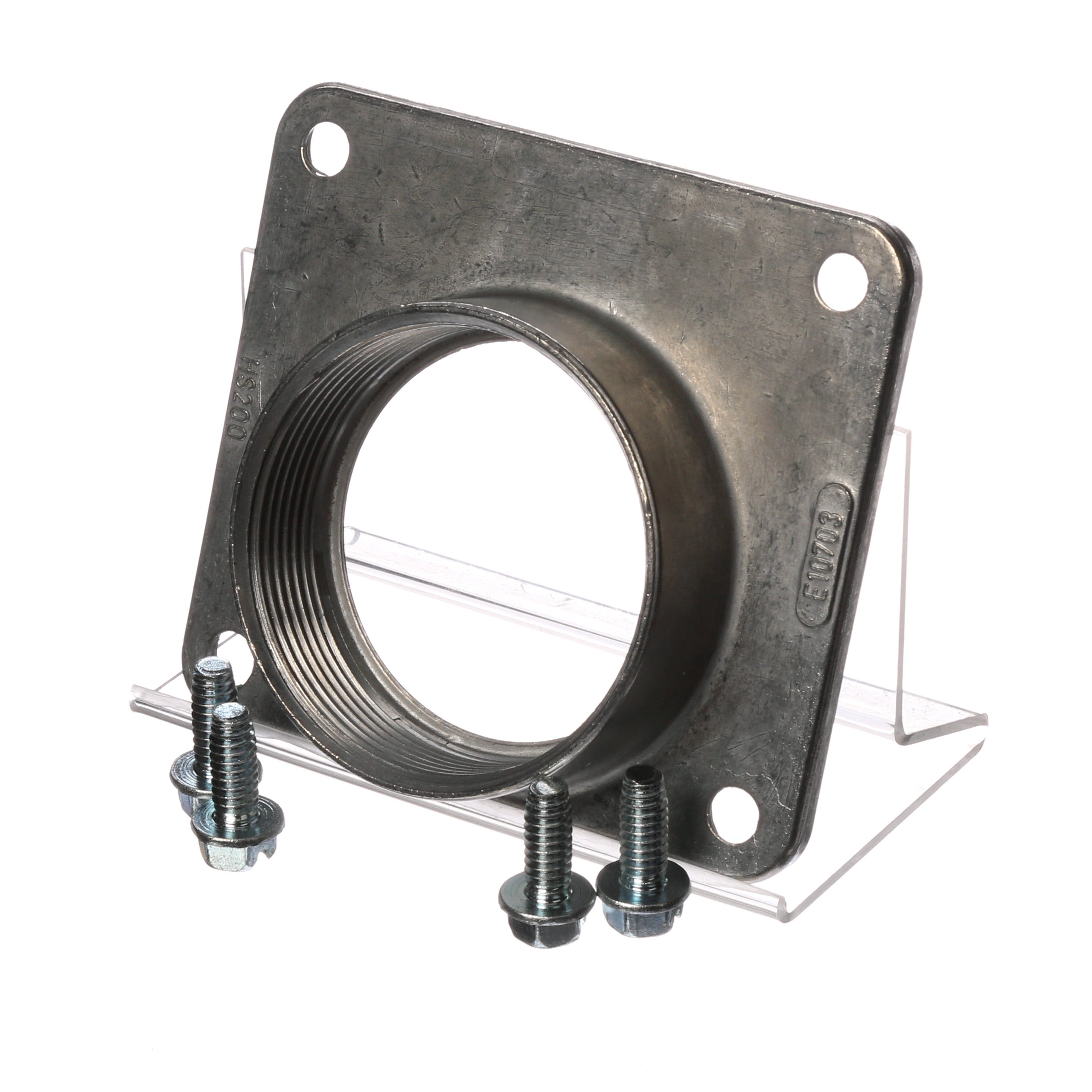

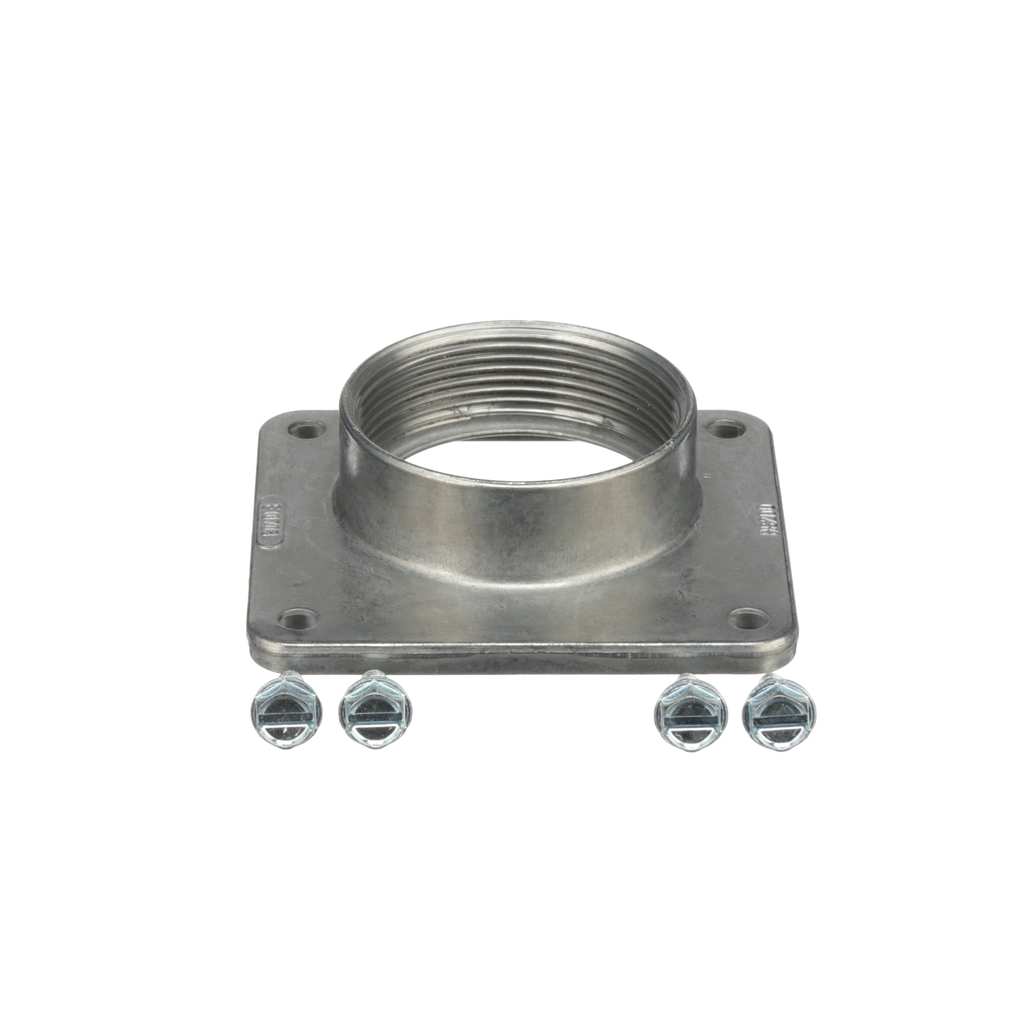

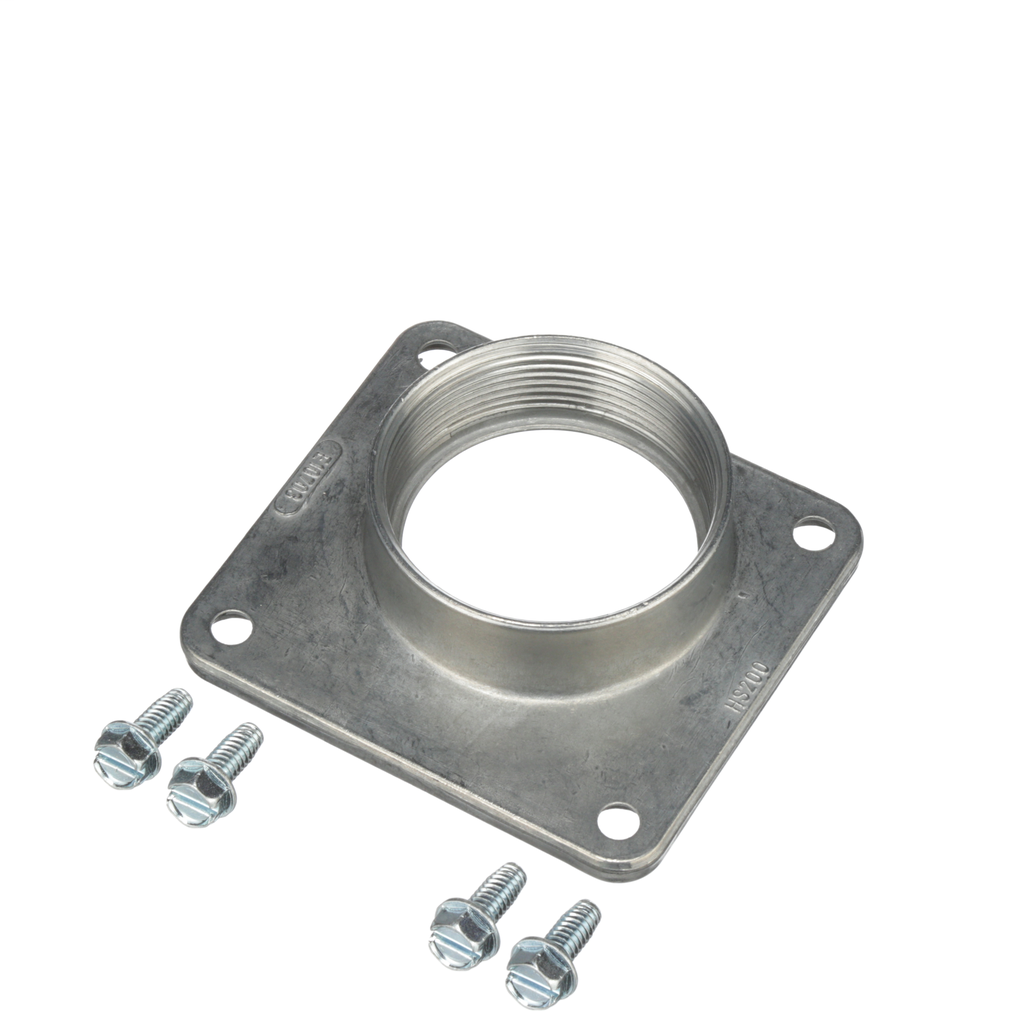

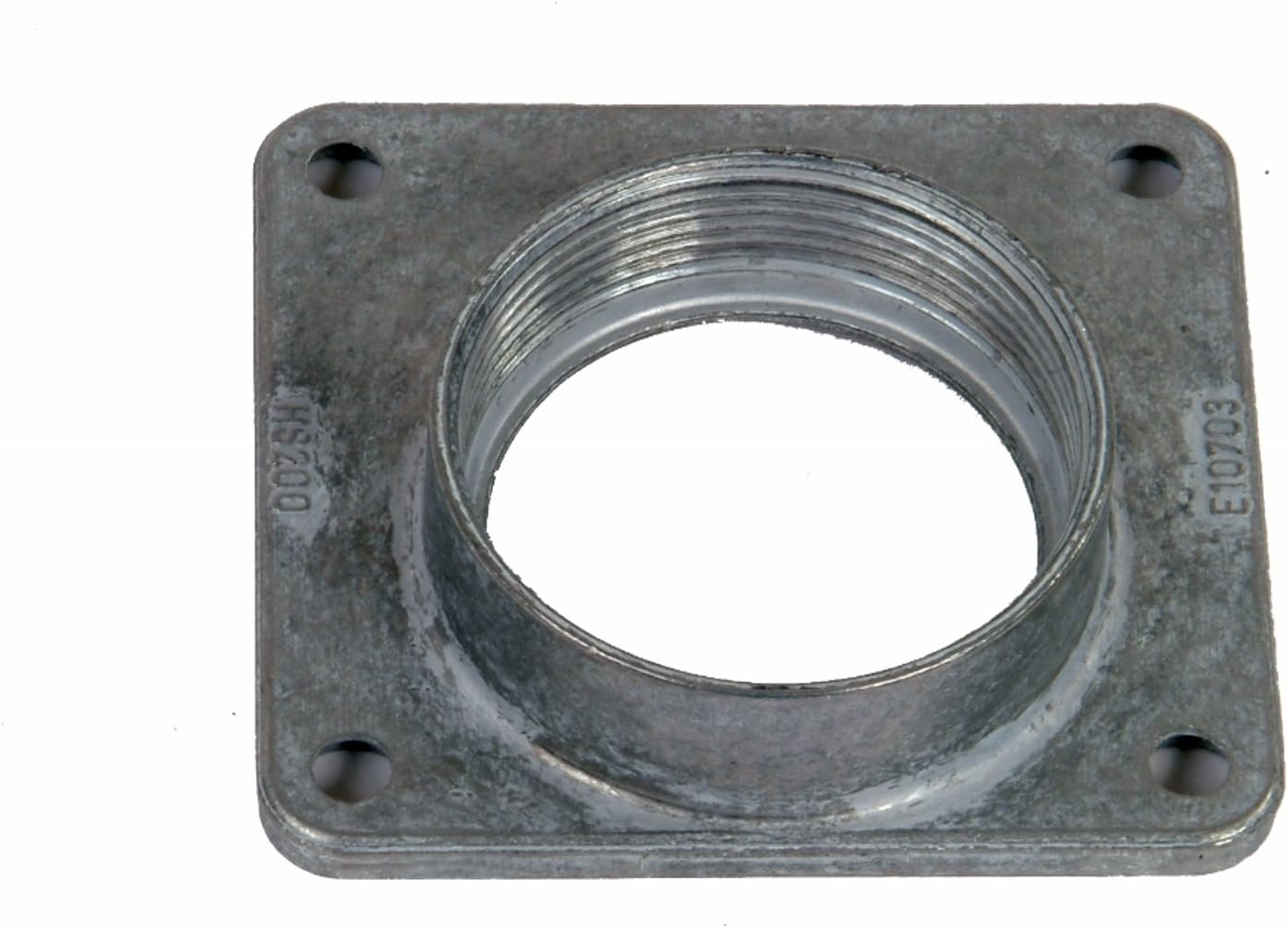

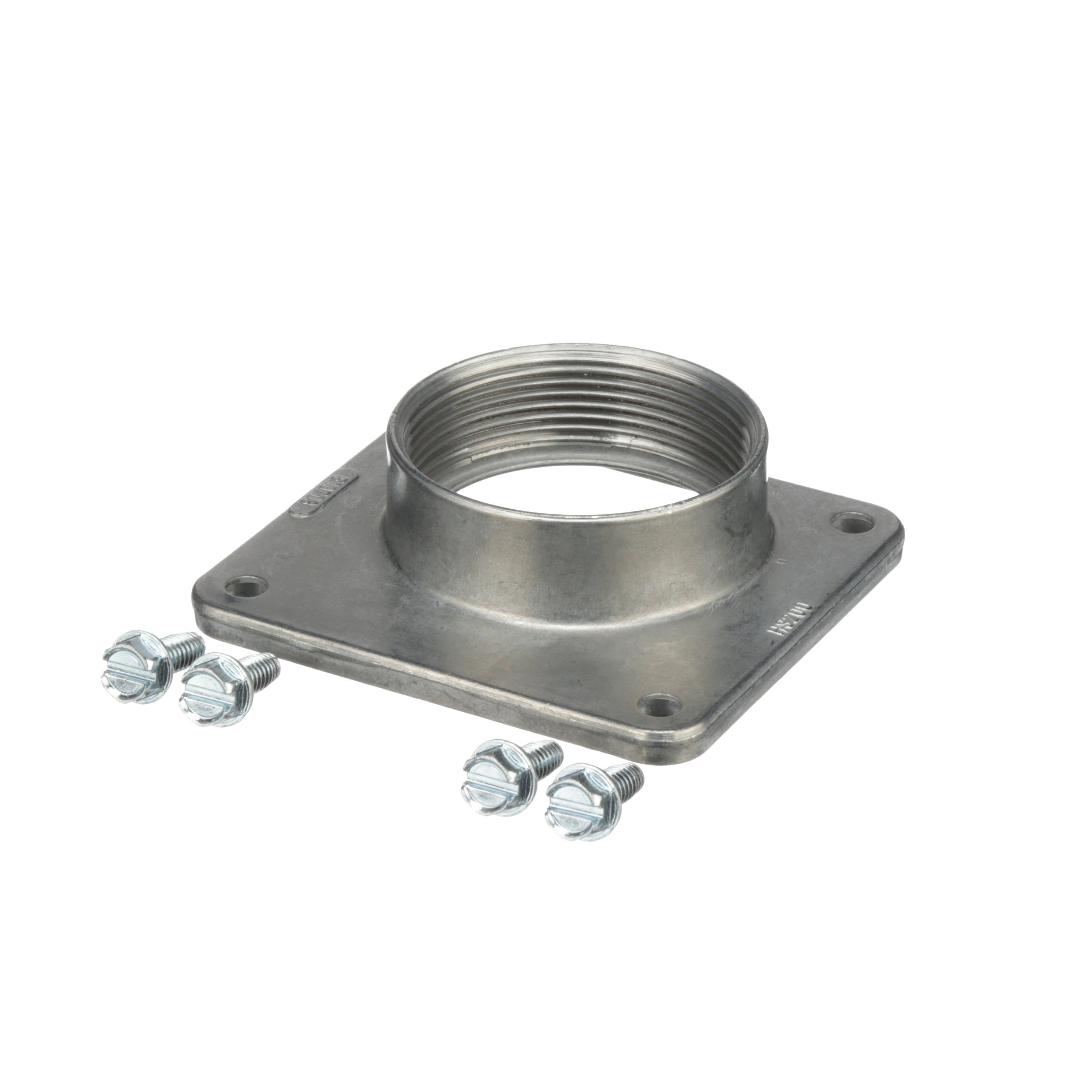

The Siemens ECHS200 is a 2-inch hub designed for electrical load centers. This hub is suitable for residential applications and is for use on Siemens or Murray panels that call for an HS type hub. It is constructed from aluminum and steel and includes mounting screws for easy installation.
- 2-inch conduit size
- Aluminum/steel construction
- Suitable for residential applications
Product Highlights
The Siemens ECHS200 hub is designed for use with electric load centers and provides a reliable connection for various electrical installations.
Product Information
Standard Information
-
Brand: SIEMENS
-
Manufacturer Part Number: ECHS200
-
Country of Origin: Mexico
Technical Specifications
-
Material: Aluminum
-
Unit Count: 1.0 Count
-
Number Of Holes: 1
-
Included Components: ECHS200
-
Item Model Number: ECHS200
-
Part Number: ECHS200
-
Size: 2 in
-
Conduit Size: 2 Inch
-
Application: Residential Applications
-
Type: HS
-
Brand: SIEMENS
-
MPN: ECHS200
-
Enclosure Type: 3R
-
Amperage: 60-200 Amp
-
Mounting Type: Threaded
-
Suitable For Use With: Circuit Breakers, Load Center, Main Lugs, Main Breakers and Meter Sockets
-
Vendor SKU: ECHS200
-
UPC: 783643455122
-
UNSPSC: 39121101
-
Manufacturer: Siemens
-
Depth: 2500020000 in
-
Width: 5.200 in
-
Height: 2.55 Inch
-
Length: 5.2 Inch
-
Sub Brand: Load Centers
-
Used With: 60-200 A GD or 30-200 A HD Switches
-
Bus Rating: 60-200A GD OR 30-200A HD
-
Cable Size: N/A
-
Cover Type: N/A
-
Product UPC: 78364345512
-
12-Digit UPC: 783643455122
-
Applications: For Residential use
-
Number of Spaces: N/A
-
Country of Origin: Mexico
-
Circuit Breaker Type: HS
-
Catalog Number: ECHS200
-
Made in USA: No
-
Enclosure: N/A
-
Series: HS
-
Specifications: 2 Inch
-
Includes: (4) Mounting Screws
-
Standard/Approvals: ANSI Specified, CSA Certified, UL Listed
-
Item Diameter: 5.1 Inches
-
PDW ID: ECL533242
-
Standard & Approvals: UL Listed|CSA Certified|ANSI Specified
-
Used On: Low Voltage Residential Specialty Load Center
-
Switch Current Rating: 30 to 200 Ampere (Heavy Duty), 60 to 200 Ampere (General Duty)
-
Mounting: 30 to 200 Ampere (Heavy Duty), 60 to 200 Ampere (General Duty)
