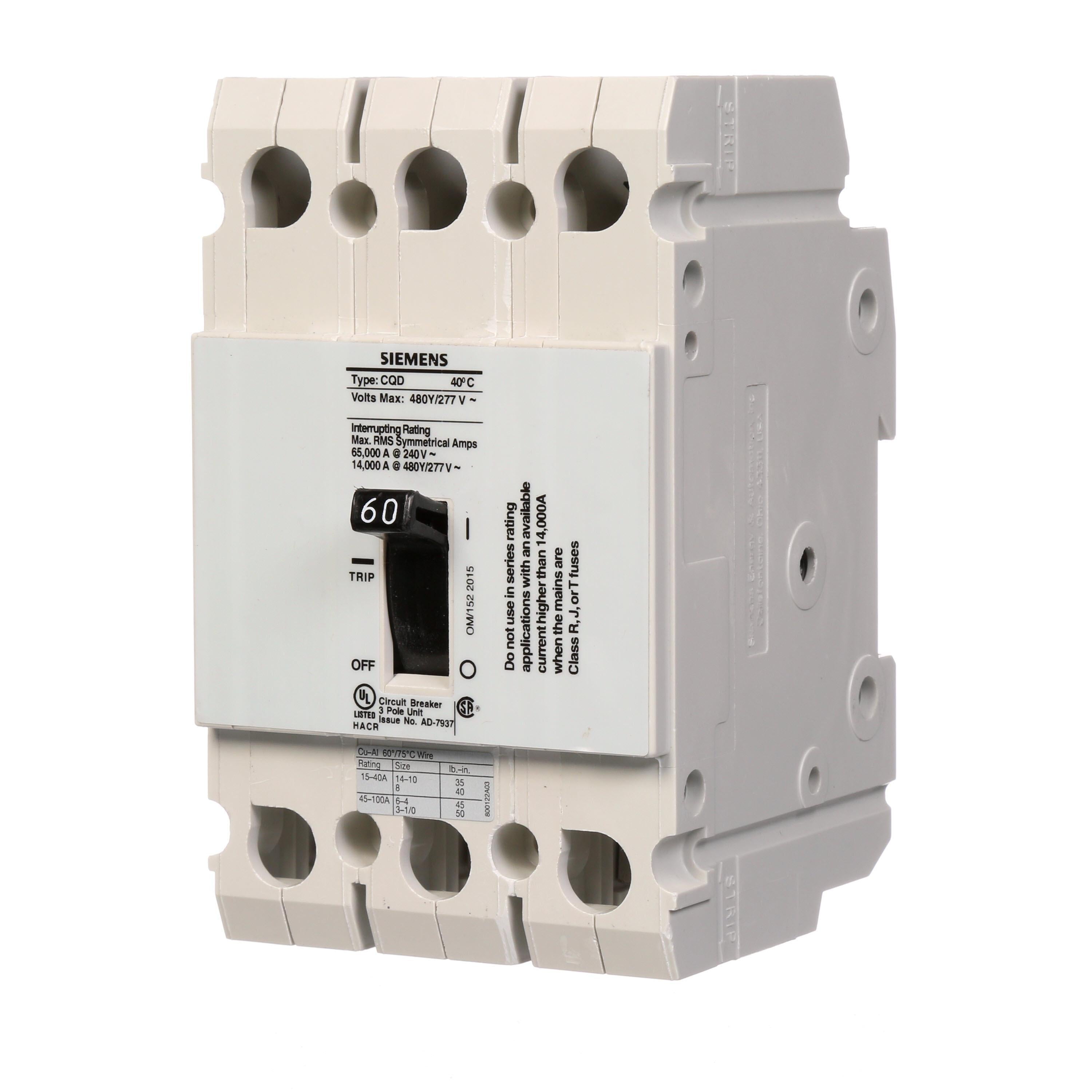

Siemens CQD360 Molded Case Circuit Breaker 60 A

Product Description

The Siemens CQD360 is a molded case circuit breaker, Type CQD Low Voltage, designed for industrial and general-purpose applications. It operates at 277/480 V AC and 50/60 Hz. This 3-pole breaker has a 60 Ampere current rating at 40 degrees C, a 14 kA interrupt rating, and a 100 A frame. It features a thermal magnetic trip and cable-in/cable-out connection.

• 8 to 1 AWG copper, 6 to 1/0 AWG aluminum wire
• Industrial and General Purpose Applications
• Authorized Distributor

Product Highlights

The Siemens CQD360 circuit breaker provides reliable circuit protection with a thermal magnetic trip mechanism and is suitable for various industrial applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: CQD360

Technical Specifications

• Brand: Siemens
• Part Number #: CQD360
• SKU #: 19760
• Frame: 100 A
• Type: Type CQD Low Voltage
• Wire Size: 8 to 1 AWG, 6 to 1/0 AWG
• Connection type: Cable-In/Cable-Out
• Amps: 60
• Volts: 480
• Poles: 3
