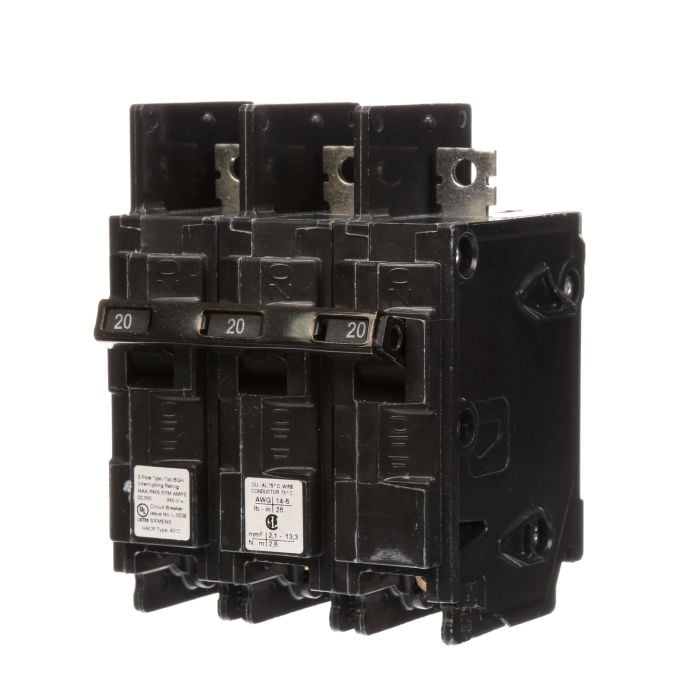

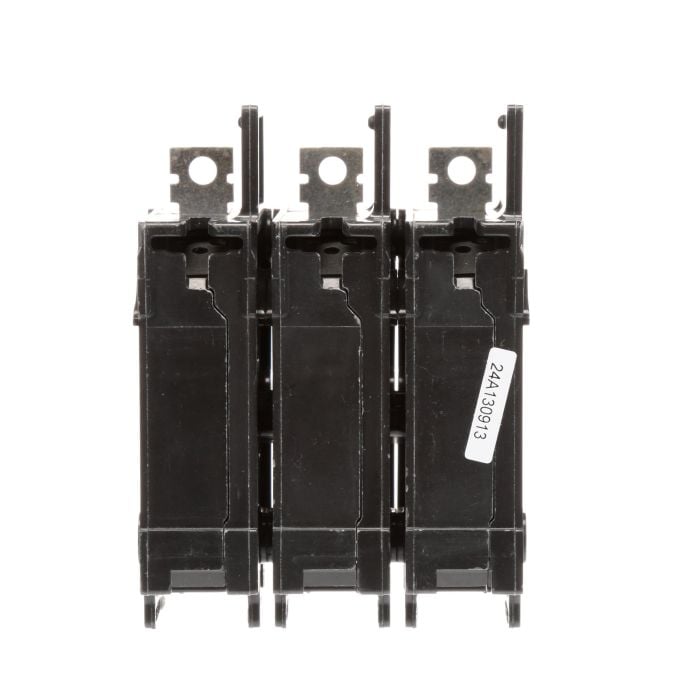

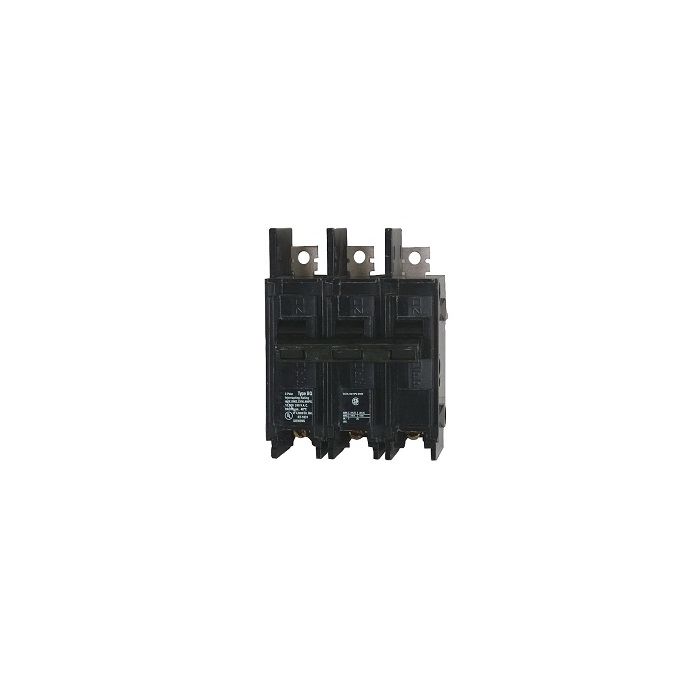

Siemens BQ3B020H Bq 20 Amp, 240V, Circuit Breaker

Product Description

The Siemens BQ3B020H is a BQ 20 Amp, 240V circuit breaker, also known as ITE BQ3B020H. This 3-pole breaker is designed for high interrupting applications. It provides over current protection, and allows circuits to be quickly reactivated after a short circuit or overload is cleared.

• 20 Amp
• 240 Volts AC
• High Interrupting

Product Highlights

Siemens BQ3B020H circuit breakers provide automatic over current protection and a manual means of energizing and de-energizing a circuit.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: BQ3B020H

Technical Specifications

• Amperage: 20 Amp
• Voltage: 240V
• Poles: 3
• Actuator Type: Toggle
• Manufacturer: SIEMENS
• Current Rating: 20 A
• Manufacturer Part Number: BQ3B020H
• Number of Poles: 3
• Overload: Thermal/Magnetic
• Series: BQ Series
• Special Features: Finger Safe Terminal Shield
• Termination: screw
• UPC Code: 783643161689
• Voltage Rating: 240 V
• Connection Type: Lug-In/Out
• Frame: BQ
• Frequency Rating: 60
• Interrupt Rating: 22
• Mounting Type: Bolt-On/Panel
• Phase: 3
• Temperature Rating: 40
• Trip Type: Thermal/Magnetic
• Type: Type BQH Low Voltage
• Wire Size: 12 to 10 AWG Aluminum, 14 to 10 AWG Copper
