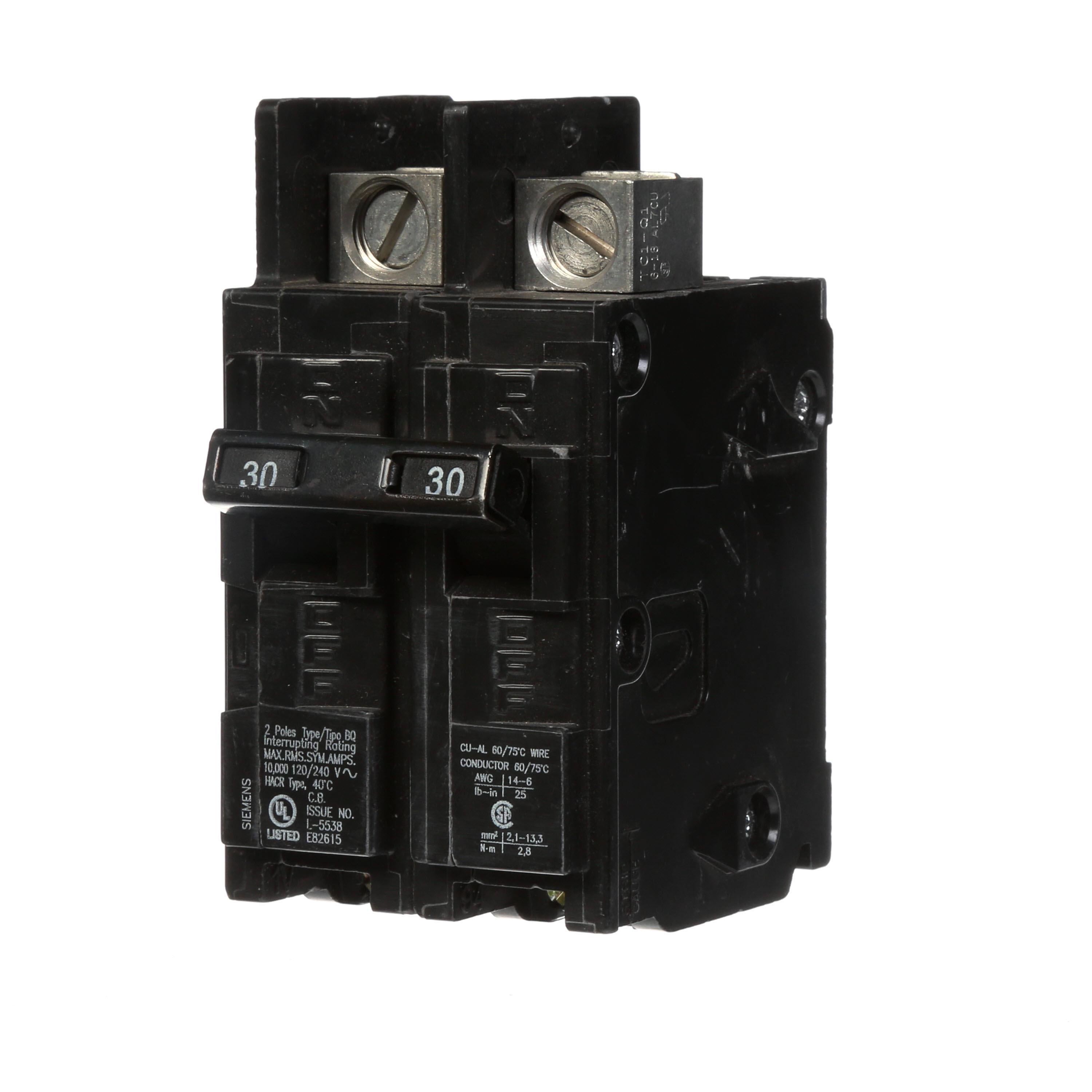

Siemens BQ2B030L Breaker 30A 2P

Product Description

The SIEMENS BQ2B030L is a molded case circuit breaker with thermal and fixed magnetic trip. This 2-pole breaker is rated for 120/240 VAC at 50/60 Hz (UL) with a current rating of 30 Ampere at 40 Deg C. It has an interrupting rating of 10 Kiloampere at 120/240 VAC Symmetrical (UL).

• Type Molded Case, Thermal and Fixed Magnetic, Common Trip
• Interrupting Rating 10 Kiloampere at 120/240 VAC Symmetrical (UL)
• Wire Size 14 to 6 AWG (Copper), 12 to 6 AWG (Aluminum)

Product Highlights

The SIEMENS BQ2B030L circuit breaker is suitable for use on P1/P2/P3/P4/P5 Panelboards. It is UL 489 and CSA C22.2 approved.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: BQ2B030L
• Country of Origin: MEX

Technical Specifications

• Number of Poles: 2
• Voltage Rating: 120/240 VAC
• Current Rating: 30 A
• Interrupting Rating: 10 Kiloampere at 120/240 VAC Symmetrical (UL)
• Wire Size: 14 to 6 AWG (Copper), 12 to 6 AWG (Aluminum)
• Frame Type: BQ
• Approval: UL 489, CSA C22.2
• Manufacturer: SIEMENS
• UPC Code: 783643237155
• Trip Type: Thermal/Magnetic
• Application: Electrical Distribution and General Purpose Applications
• Mounting Type: Panel
• Temperature Rating: 40
• Type: Type BQ Low Voltage
• Actuator Type: Toggle
• Rated current: 30A
• Rated voltage (AC): 120Vac / 240Vac
• Short circuit breaking rating: 10kA.I.R. (120Vac / 240Vac)
• Mounting mode: bolt-on
• Order code / Manufacturer SKU: BQ2B030L
• Compliant with standard(s): UL listed, CSA
• Net width (in): 2 in
• Network frequency: 60 Hz
