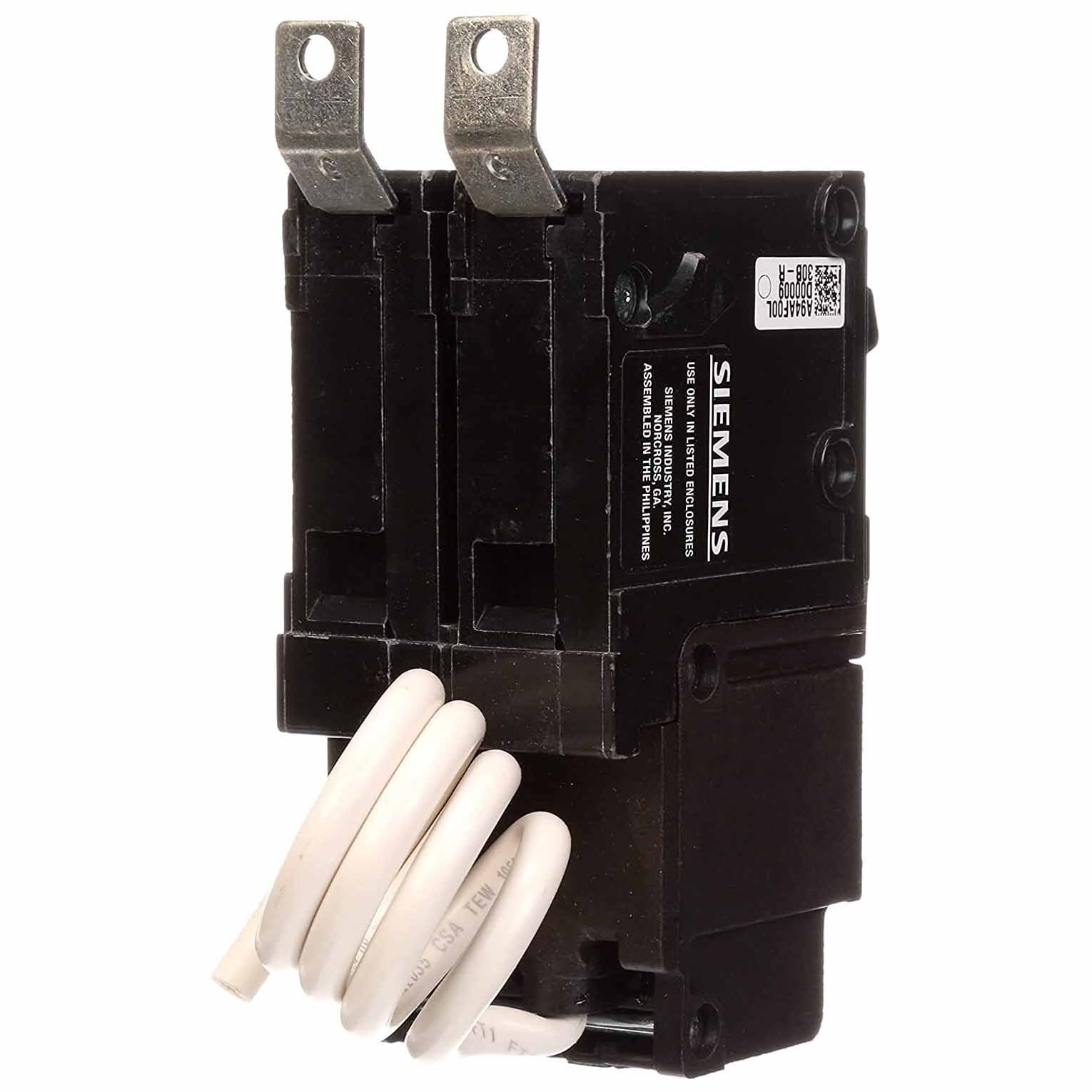

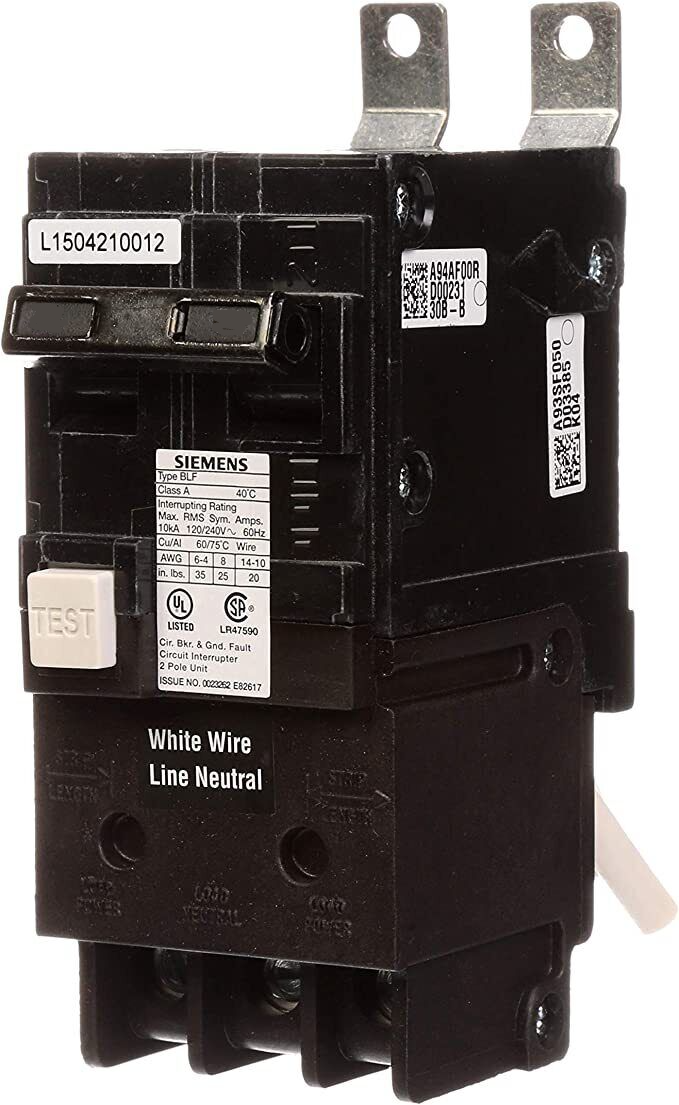

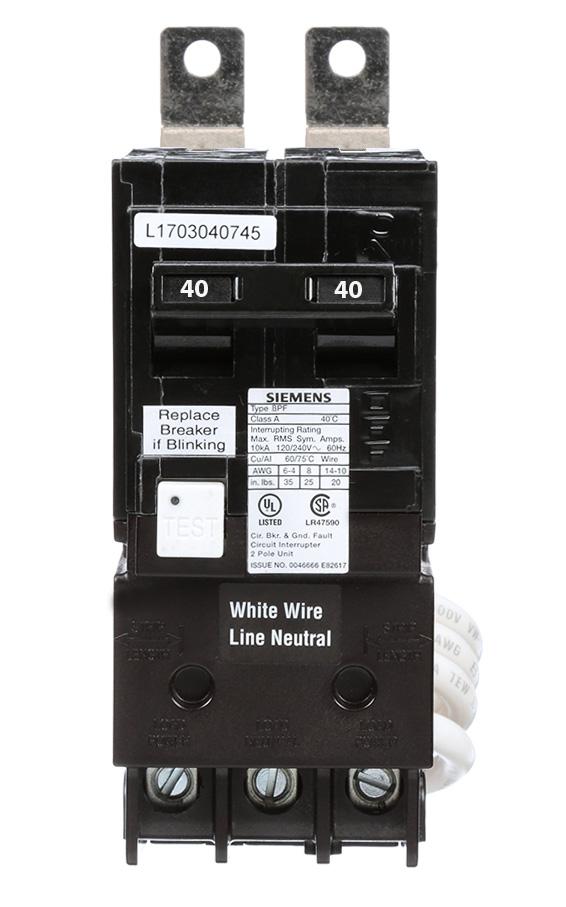

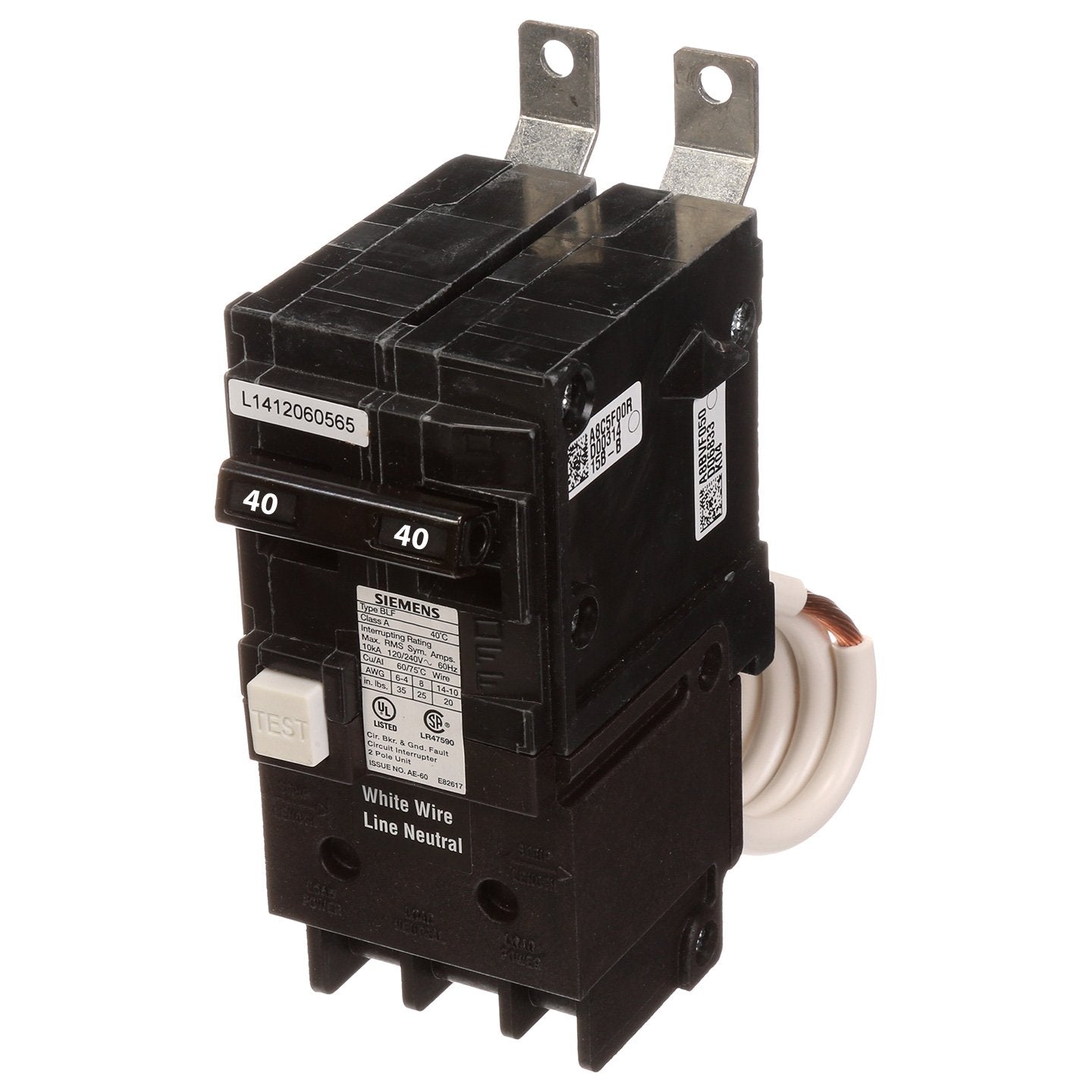

Siemens BF240 40 Amp GFCI Circuit Breaker

Product Description

The Siemens BF240 is a 40 Amp Ground Fault Circuit Interrupter (GFCI). This GFI type bolt-on circuit breaker features a terminal load lug connection and a thermal magnetic BQD frame breaker. It is UL listed, CSA certified, and NOM certified.

• Siemens Ground Fault Circuit Interrupter (GFCI)
• GFI type Bolt-On Circuit Breaker
• Terminal load lug connection

Product Highlights

This Siemens GFCI circuit breaker provides reliable ground fault protection and is suitable for use in Siemens panelboards.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: BF240
• Country of Origin: Philippines

Technical Specifications

• Manufacturer: Siemens
• Family: B / BL Series
• Type: BLF
• Cat. No.: BF240
• Pole: 2
• Amp: 40 Amp
• Volt: 240 Volt
• Connection: Bolt-On
• Phase: 1
• Interrupting Rating: 10000 Ampere
• Dimensions (H x W x L): 3.5" x 2" x 3"
• Brand: Siemens
• Series: BL
• Amperage: 40A
• Voltage: 120/240VAC
• AIC Rating: 10kA @ 120/240VAC
• Special Classification: GFCI
• Mounting Style: Bolt-On
• Terminal Type: Lugs
• For Use With: Siemens P1, P2, P3 Panelboards
• Trip Technology: Thermal Magnetic
• Trip Function Code: LIG
• Trip Function: Long-Time, Instantaneous, Ground Fault
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Wire Gauge: 8-6 AWG (Cu), 8-4 AWG (Al)
• Max Wire: 6 AWG (Cu), 4 AWG (Al)
• Min Wire: 8 AWG
• Available Options: Padlock Attachment
• Standards: CSA C22.2 No. 5, UL 489, UL 943, HACR Rated
• Approval: CSA, UL
• Temp Rating: 40C
• Construction Features: HACR Rated
• Part Number / Catalog: BF240
• Frame Type: BLF
• Amps: 40
• Mounting: Bolt-On
• Category: Circuit Breaker
• Item Subcategory: Molded Case
• AIC rating: 10kA@240V
• Functions: LI - Long-Time and Instantaneous Trip
• Protection: Thermal Magnetic
• MPN: BF240
• GTIN: 0783643274013
• UPC: 0783643274013
• eBay Product ID (ePID): 1811939931
• Number of Throws: 1
• Tripping Characteristics: Type A
• Current Type: AC
• Operation Method: On/Off
• Maximum Amperage: 40 A
• Number of Phases: 1
• Model: BF240
• Number of Poles: 2
• Number of Circuits: 1-10
• Item Height: 3 in
