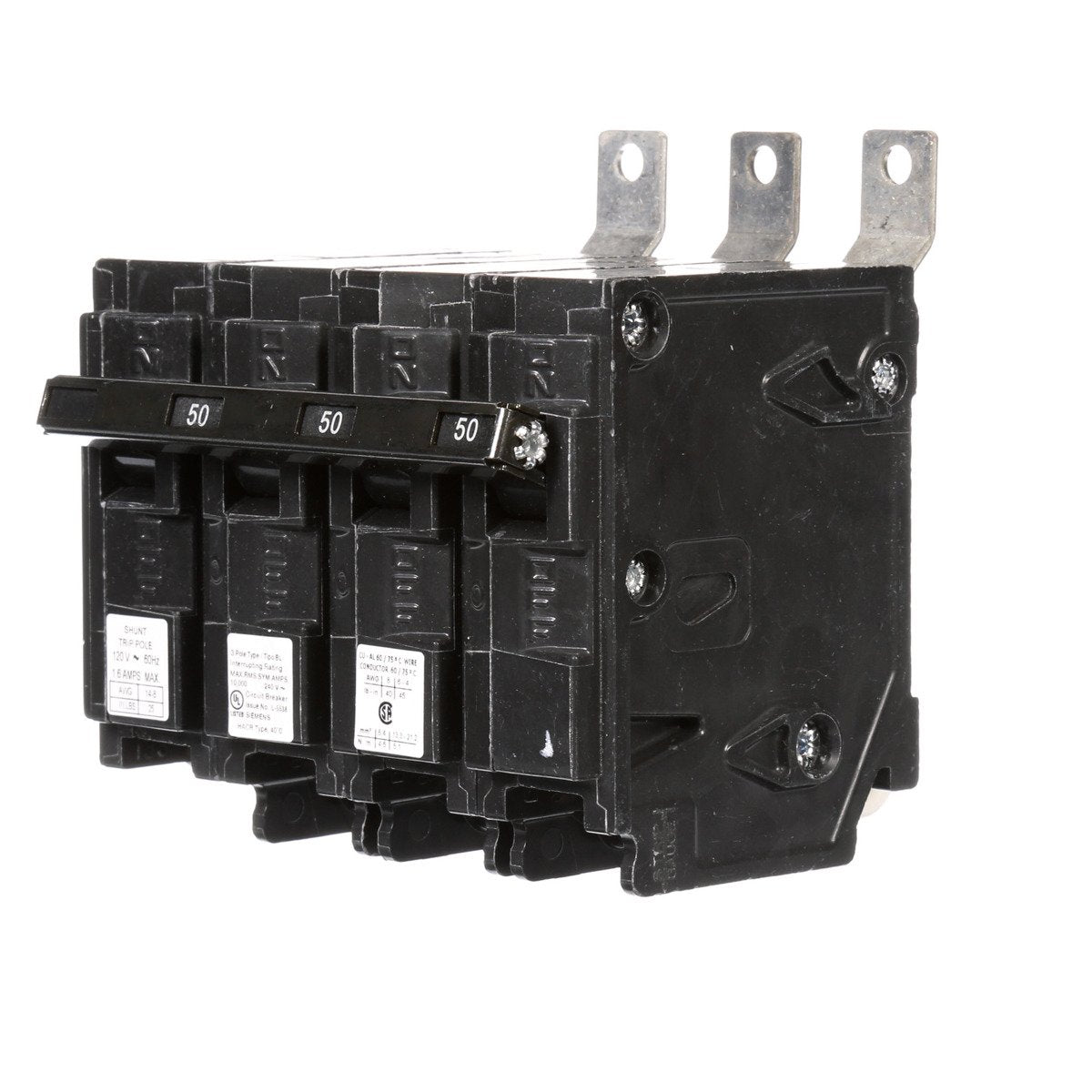

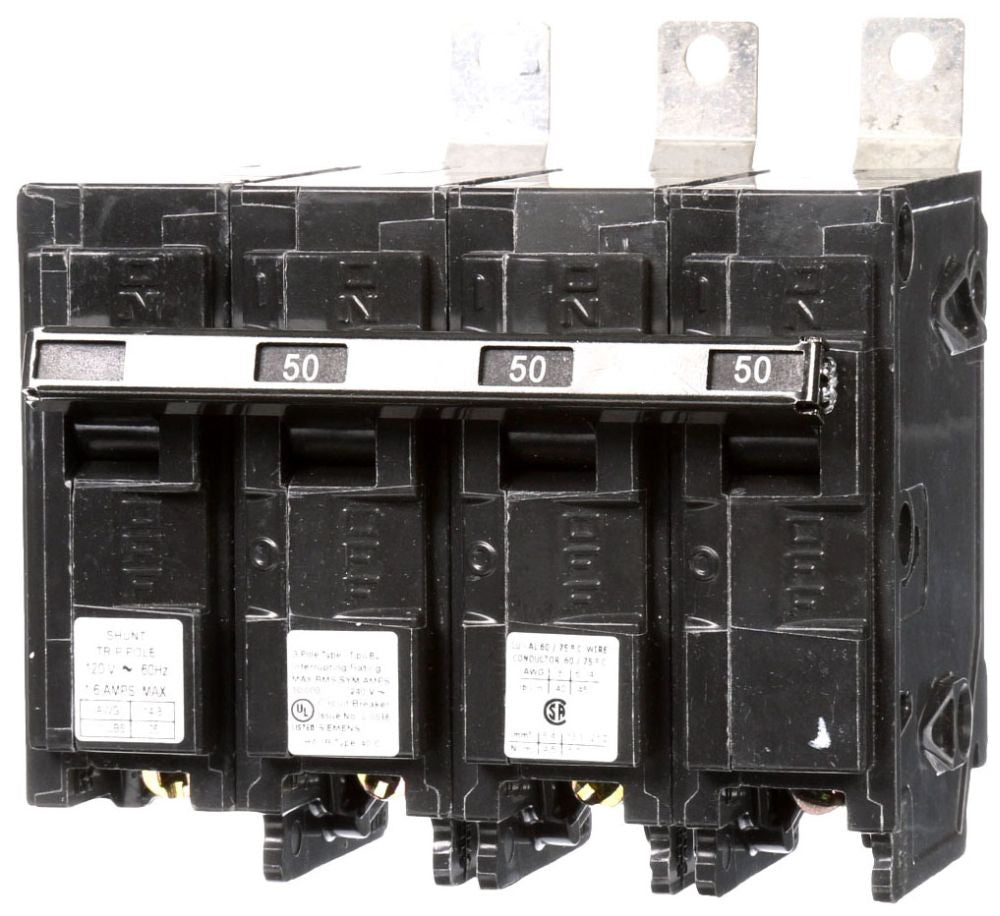

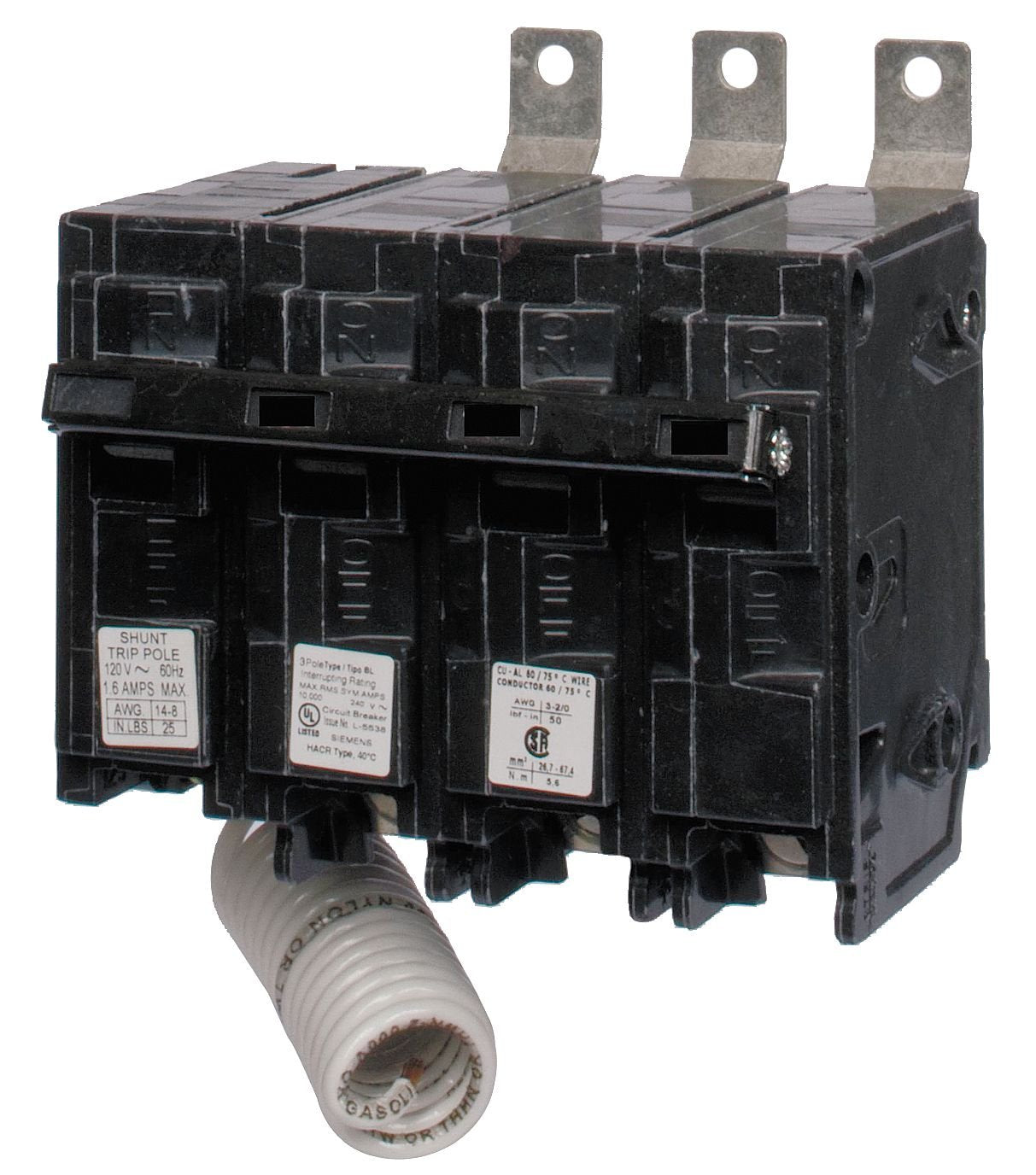

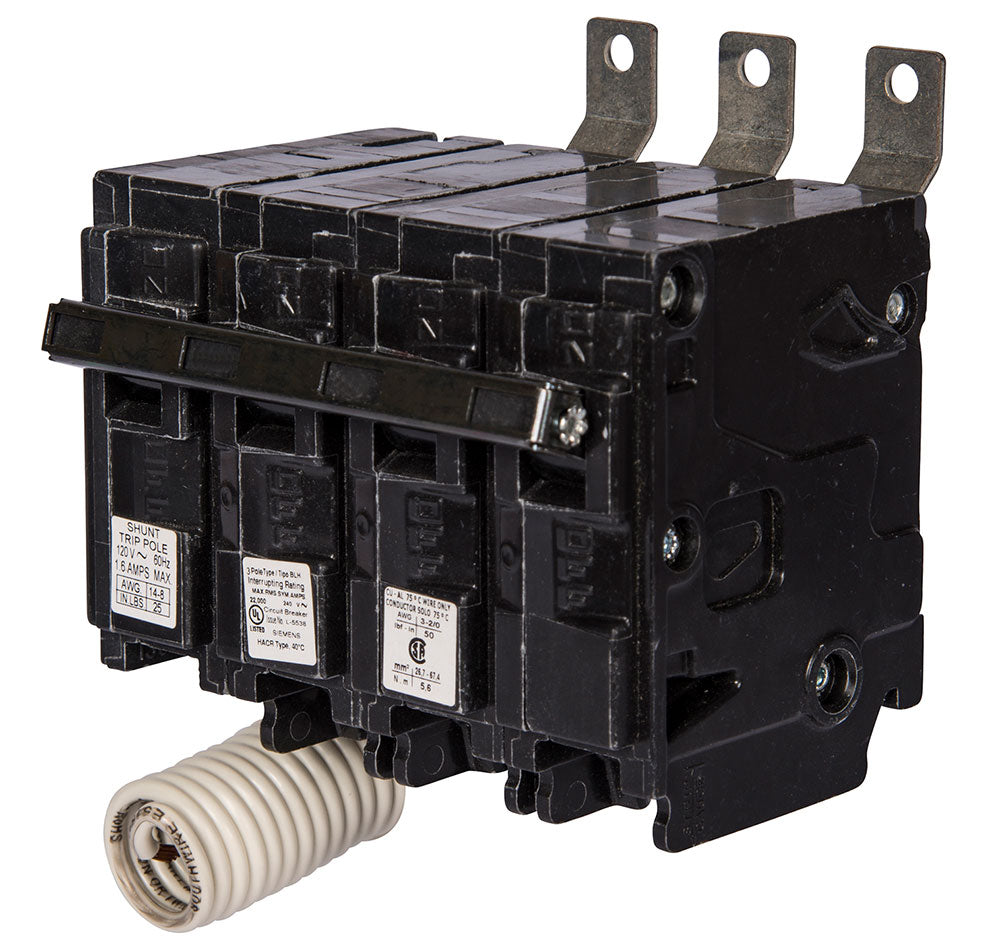

Siemens B35000S01 Low Voltage Molded Case Circuit Breakers Panelboard Mounting 50A

SIEMENS
Brand: SIEMENS
SKU: B35000S01
Availability: In Stock

Ships same day if ordered by 12 pm
$620.03
$620.03
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The SIEMENS B35000S01 low voltage molded case circuit breaker is designed for panelboard mounting. This 3-pole, 240VAC circuit breaker provides circuit protection with a thermal magnetic trip range and a 10 kA interrupt rating. It is suitable for electrical distribution applications.

  • Supplied with Load Side Connector
  • HACR Rated
  • Sense when an over current occurs

Product Highlights

This Siemens circuit breaker provides over current protection and allows for quick circuit reactivation after an overload.

Product Information

Standard Information

  • Brand: SIEMENS
  • Manufacturer Part Number: B35000S01
  • Country of Origin: Mexico
Technical Specifications
Catalog Number
B35000S01
Manufacturer
Siemens
Brand
Siemens
Country of Origin
Mexico
Made in USA
No
Number of Poles
3
Standard
ULLISTED/CSA/NOMCERTIFIED
UPC
783643268562
GTIN
00783643268562
Application
Lighting, Distribution
Approval
UL 489, CSA C22.2
Installation
Bolt-On
Interrupting Rating
10 Kiloampere at 240 VAC (UL)
Type
Molded Case, Thermal and Fixed Magnetic
Used On
P1/P2/P3/P4/P5 Panelboard
Product Type
CIRCUIT_BREAKER
Phase
3
Wire Size
8 to 6 AWG, 8 to 4 AWG
ActuatorType
Toggle
Temperature Rating
40 deg C
Voltage Rating
120/240 VAC
Frequency Rating
60 Hz
Mounting Type
Panel
Interrupt Rating
10 kA
Trip Type
Shunt/Thermal Magnetic
Amperage Rating
50 A
Standard & Approvals
UL 489|HACR Rated
UNSPSC
39121601
Vendor SKU
B35000S01
Product Lifecycle (PLM)
PM300:Active Product
Net Weight (lb)
1.609 lb
Product Group
5201
Compliance with the substance restrictions according to RoHS directive
not available
Authentic Siemens Product
True
3 phase
True
