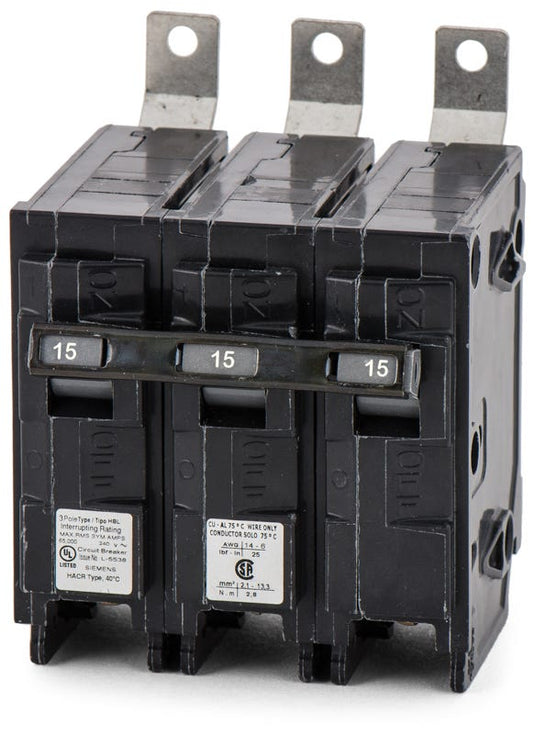

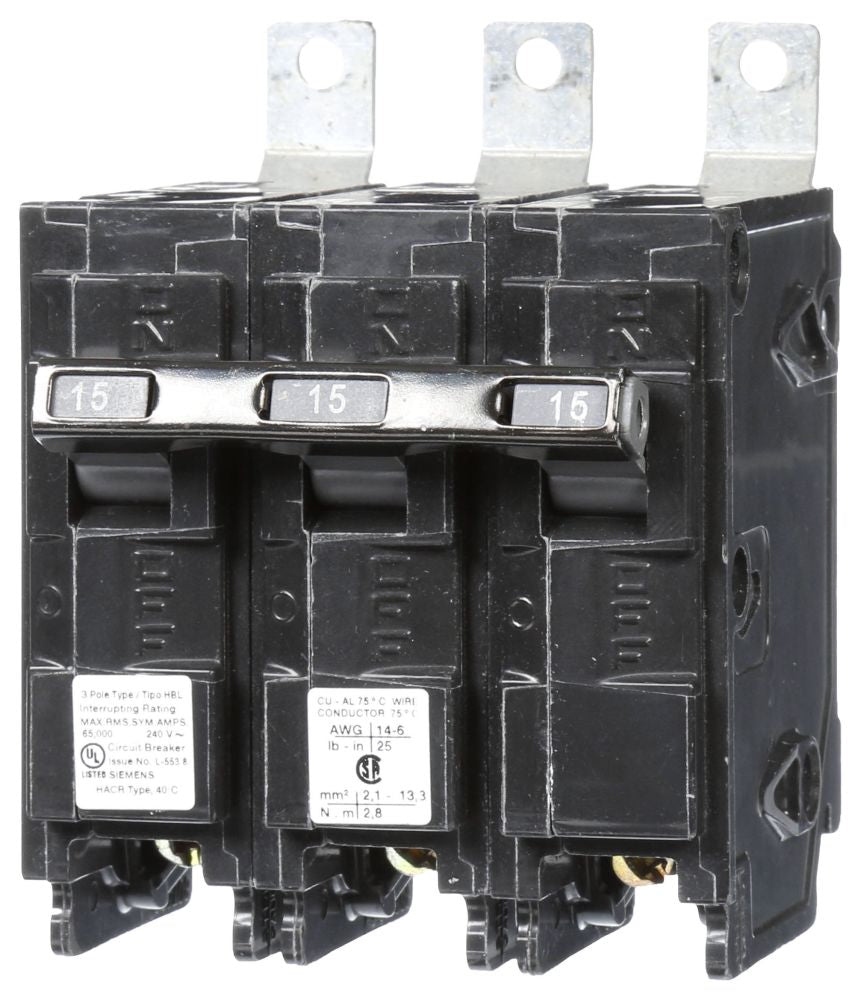

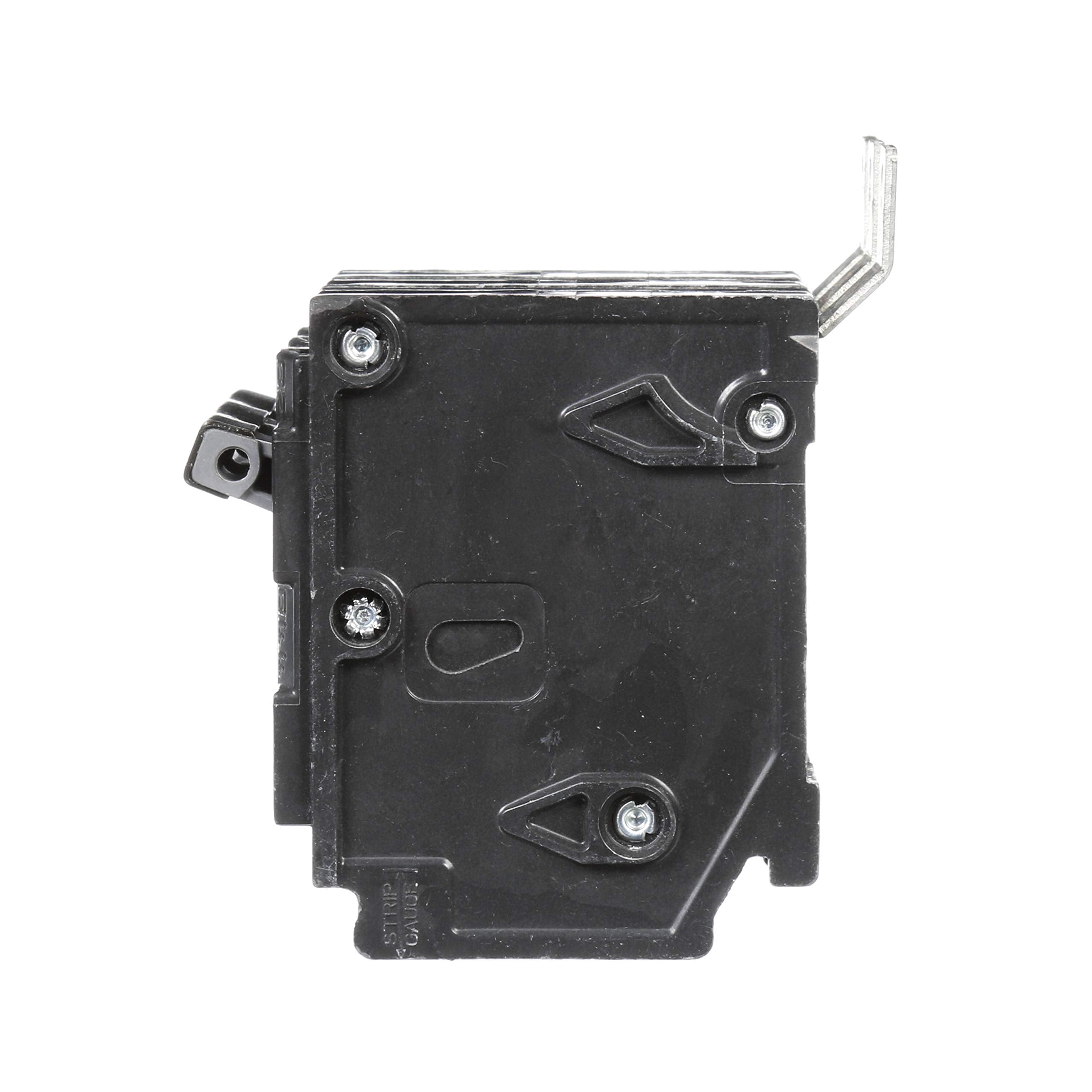

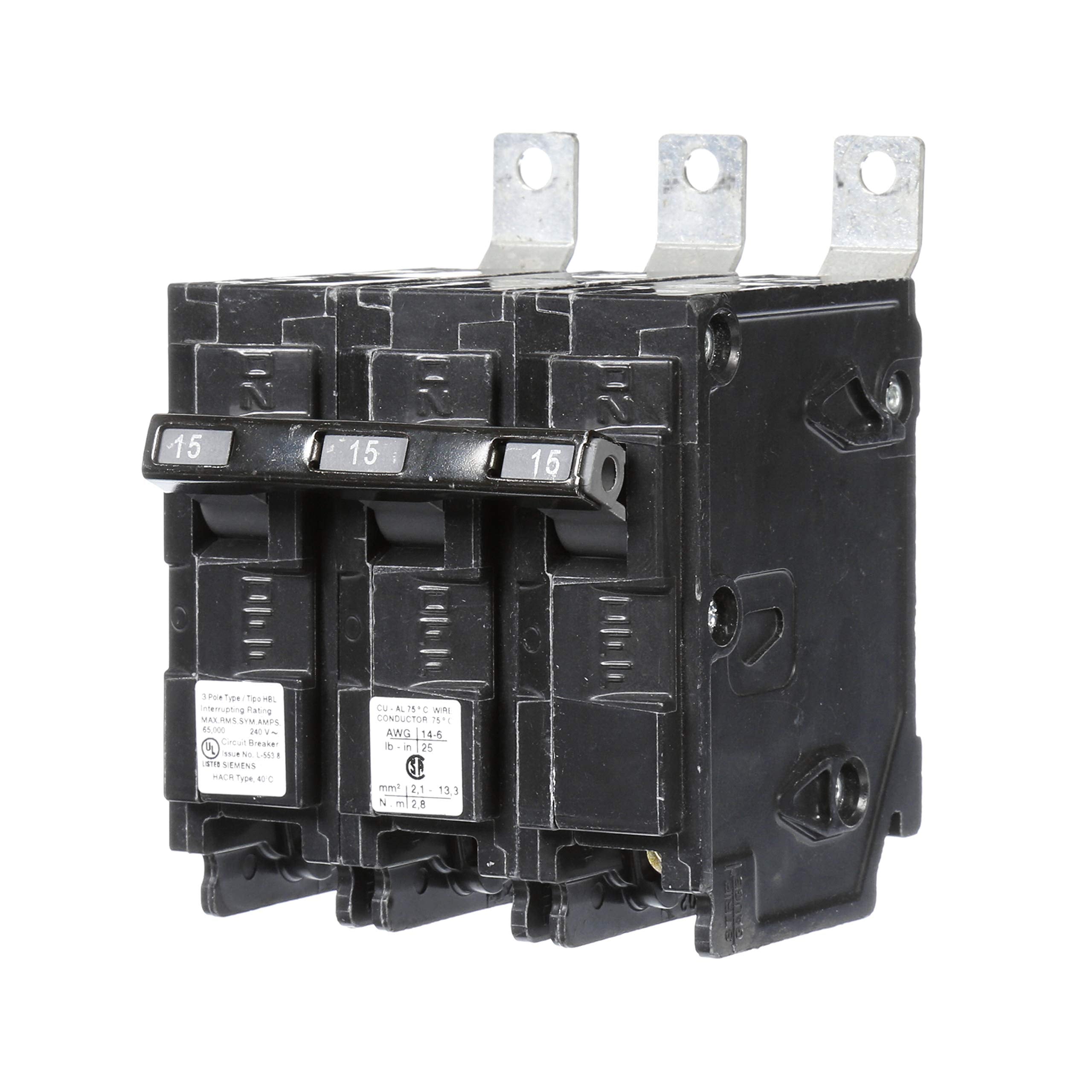

Siemens B315HH 3-Pole 15 Amp 240 Volt 65 kA Bolt-On Molded Case Circuit Breaker

Product Description

The Siemens B315HH is a 3-pole, 15A molded case circuit breaker designed for panelboard mounting. This 240V circuit breaker provides reliable thermal-magnetic protection for electrical distribution systems. With a 65kAIC interrupt rating, it's suitable for commercial and industrial applications. It installs into Siemens P1, P2, P3, P4, and P5 panelboards.

• Panel board mounting
• Thermal-magnetic trip
• 65kAIC interrupt rating at 240VAC

Product Highlights

3-pole, 15A, 240V molded case circuit breaker with bolt-on connection and 65kAIC interrupt rating.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: B315HH
• Country of Origin: Mexico

Technical Specifications

• Brand: Siemens
• Current: 15 Amp
• Voltage: 240 Volt
• Trip Range: Thermal Magnetic
• Applications: Electrical Distribution
• TC Connection: BOLT-ON
• Connection Type: Bolt-On
• Number of Poles: 3 Pole
• Interrupt Rating: 65 AIC
• Country of Origin: Mexico
• Catalog Number: B315HH
• Manufacturer: Siemens
• Application: Lighting, Distribution
• Approval: UL 489, CSA C22.2
• Installation: Bolt-On
• Interrupting Rating: 65 Kiloampere at 240 VAC (UL)
• Manufacturer Name: Siemens
• PDW ID: ECL240187
• Product UPC: 783643264205
• Mounting Style: Bolt-On
• Terminal Type: Lugs
• For Use With: Siemens P1, P2, P3, P4, P5 Panelboards
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• Wire Gauge: 14-10 AWG (Cu), 12-10 AWG (Al)
• Max Wire: 10 AWG
• Min Wire: 14 AWG (Cu), 12 AWG (Al)
• Available Options: Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment
• Accessories: Load Side Lugs Included
• Standards: CSA C22.2 No. 5, HACR, UL 489
• Temp Rating: 40C
• Construction Features: HACR Rated, Reverse Feed, Common Trip, Non-Interchangeable Trip
• AIR Rating: 65 kA
• Voltage Rating: 240 VAC
• Amp Rating: 15
• Poles: 3
• Phase: 3
• AIC Rating: 65kA @ 240VAC
• Depth: 3 in
• Width: 4.000 in
• Height: 3.5 in
• Length: 4 in
