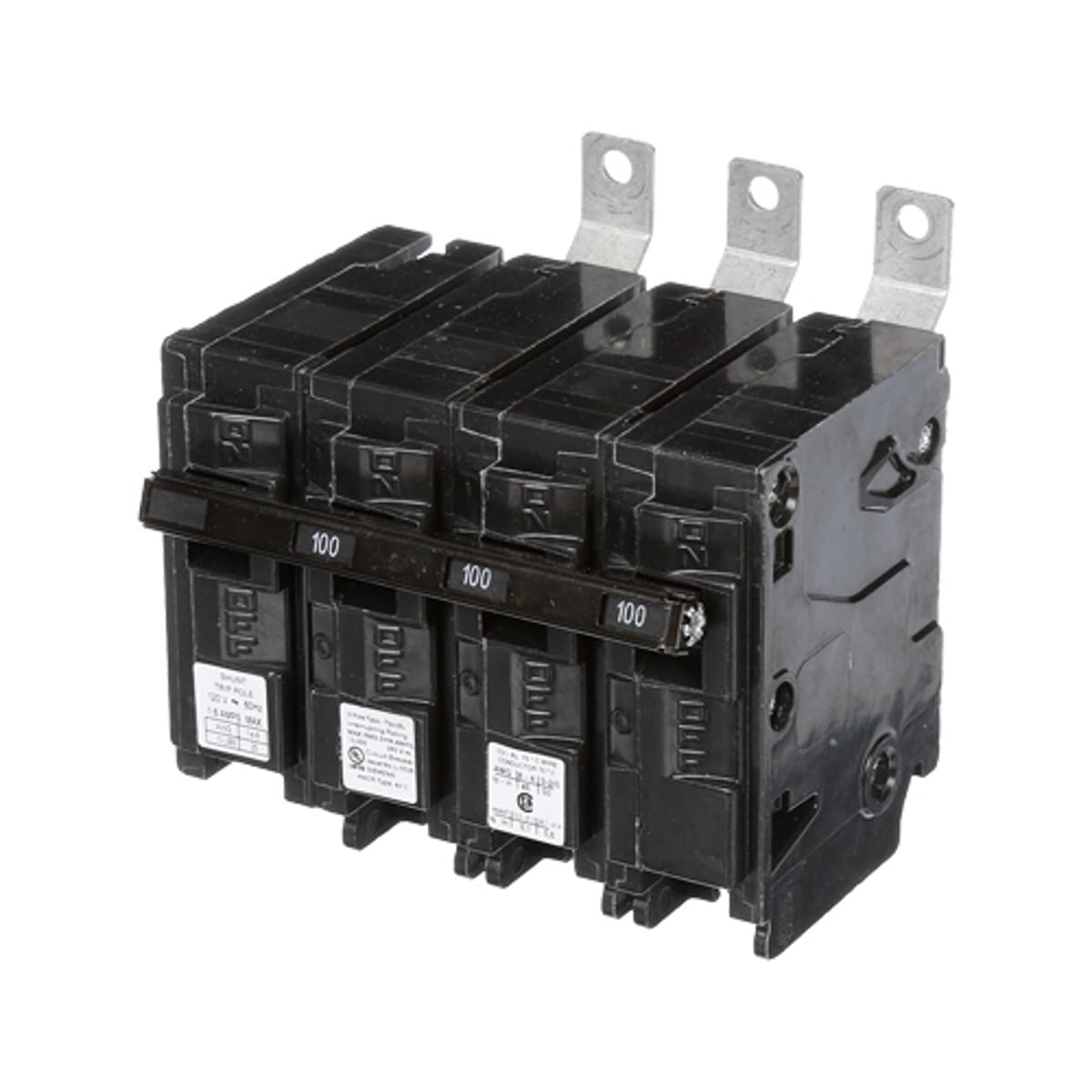

Siemens B310000S01 Molded Case Circuit Breaker 100 Amp 120/240 Volt (3-Pole)

SIEMENS
Brand: SIEMENS
SKU: B310000S01
Availability: In Stock

Ships same day if ordered by 12 pm
$687.05
$687.05
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Siemens B310000S01 is a Type BL molded case circuit breaker for panelboard mounting that provides three-pole, 100 amp protection for 120/240 V AC systems and includes a factory-installed 120 V shunt trip. The unit uses a thermal-magnetic trip mechanism and has an interrupting rating listed as 10 AIC, intended for electrical distribution and panelboard applications with bolt-on installation.

  • Type BL molded case breaker, 3 poles, 100 A amperage rating, 120/240 V AC
  • Factory-installed 120 V shunt trip; thermal-magnetic trip mechanism
  • Bolt-on panelboard mounting; interrupting rating listed as 10 AIC

Product Highlights

3-pole 100 A BL molded case breaker with 120 V shunt trip and thermal-magnetic trip for bolt-on panelboard installation

Product Information

Standard Information

  • Brand: SIEMENS
  • Manufacturer Part Number: B310000S01
  • Country of Origin: Mexico
Technical Specifications
Brand
Siemens
Manufacturer
Siemens
Manufacturer Part Number
B310000S01
Catalog Number
B310000S01
Product Name
Molded Case Circuit Breaker, Type BL
Series / Frame Type
BL / 125A/BL
Number of Poles
3
Phase
Three
Amperage Rating
100 Amp
Voltage Rating
120/240 Volt AC
Shunt Trip Voltage
120 Volt AC (factory-installed)
Trip Type
Thermal-magnetic
Maximum Interrupting Rating
10 kA at 240V AC
Mounting Type
Bolt-On (panelboard mounting)
Installation
Bolt-On
Terminal Connection
Lug
Actuator
Toggle
Application
Electrical distribution / Panelboard
Approvals / Certifications
UL 489; CSA C22.2; NOM
Standards
UL 489
Frame Size
125A/BL
Compatible Panelboard/Load Center Series
Siemens P1
AC Voltage Rating
120/240V AC
DC Voltage Rating
Not Rated
Max. Wire Size
1/0 AWG
Min. Wire Size
2 AWG (Al), 4 AWG (Cu)
Dimensions (Height x Width x Depth)
5.6 in x 5.5 in x 3 in
Length
5.6 in
Weight
1.000 lb
Country of Origin
Mexico
UPC
783643268623
GTIN
00783643268623
Intended Use
Panelboard circuit protection
