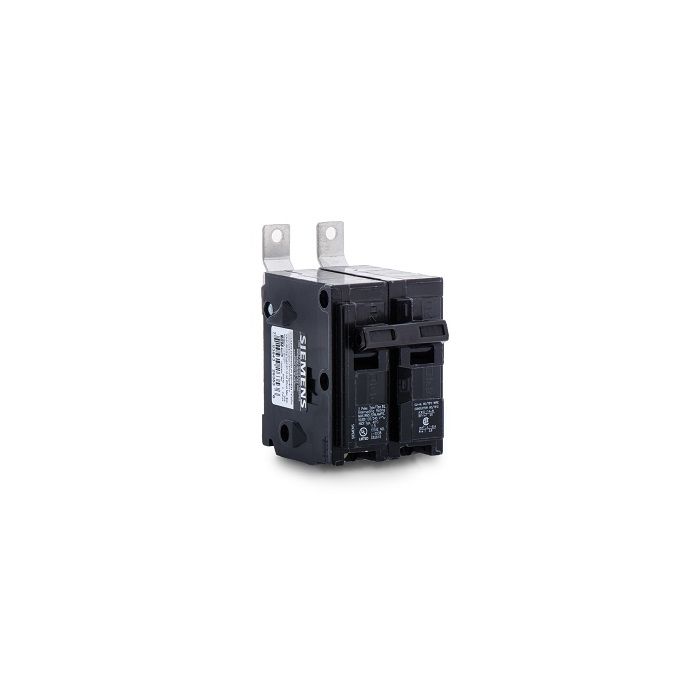

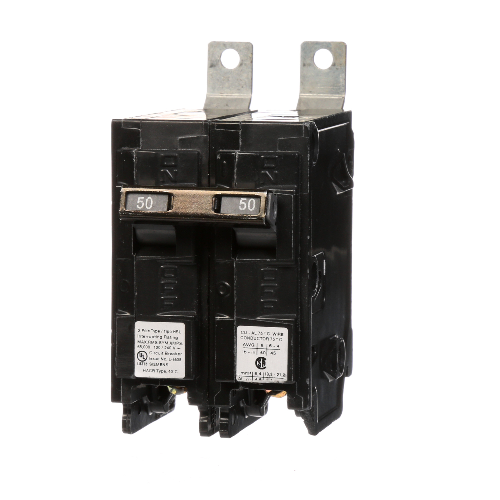

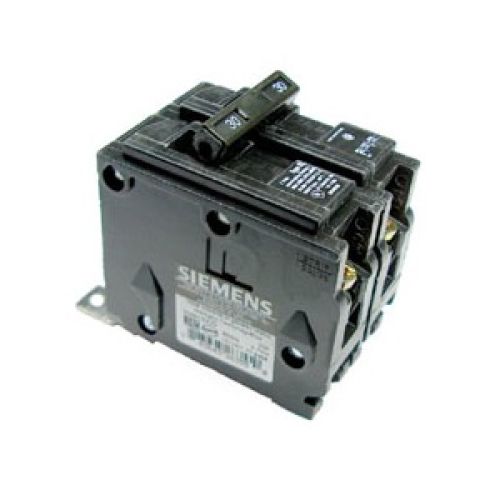

Siemens B250HH 50-Amp Double Pole Breaker

Product Description

The Siemens B250HH is a panel board mounted, non-interchangeable trip molded case circuit breaker. Available in a double pole configuration, this breaker is UL Listed and designed for panel board mounting. It features long time and instantaneous trip functions and thermal magnetic operation.

• UL Listed
• Panel board mounting
• Double pole
• Type HBL

Product Highlights

The Siemens B250HH is a reliable choice for circuit protection needs.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: B250HH

Technical Specifications

• Brand: SIEMENS
• Current Rating: 50 Amps
• Circuit Breaker Type: Standard
• Mounting Type: Panel Mount
• Number Of Poles: 2
• Voltage: 240 Volts
• Type: HBL
• Application: Electrical Distribution
• Standard: UL 489
• Voltage Rating: 120/240V
• Amperage Rating: 50A
• Trip Range: Thermal Magnetic
• Interrupt Rating: 65 AIC
• Product Lifecycle (PLM): PM300:Active Product
• Product Group: 5201
• Compliance with the substance restrictions according to RoHS directive: not available
• Amperage: 50
• Voltage Type: AC
• Poles: 2P
• Frame Type: B
• AIR Rating: 65 kA
• Standards: UL Listed, HACR, CSA, Reverse Feed
