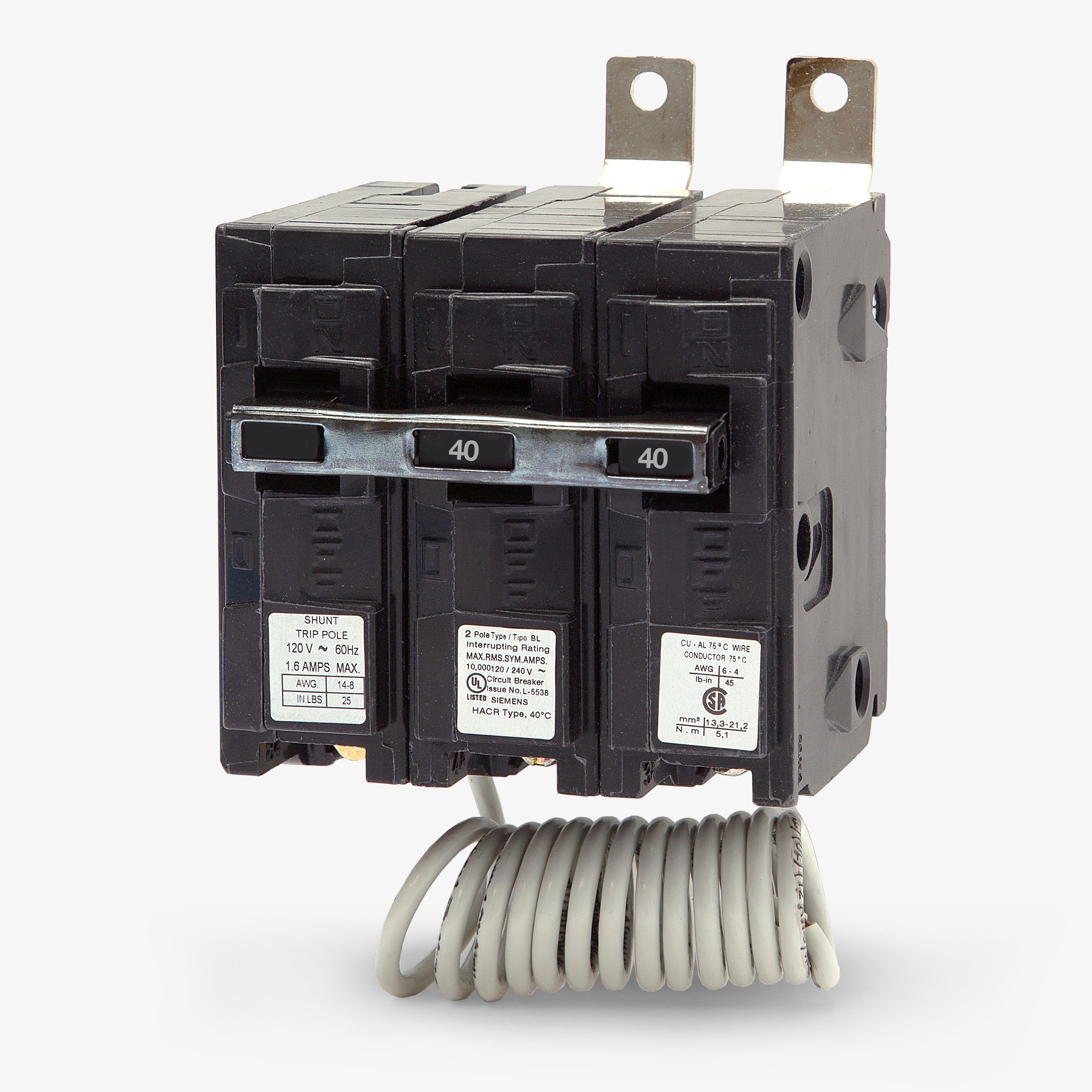

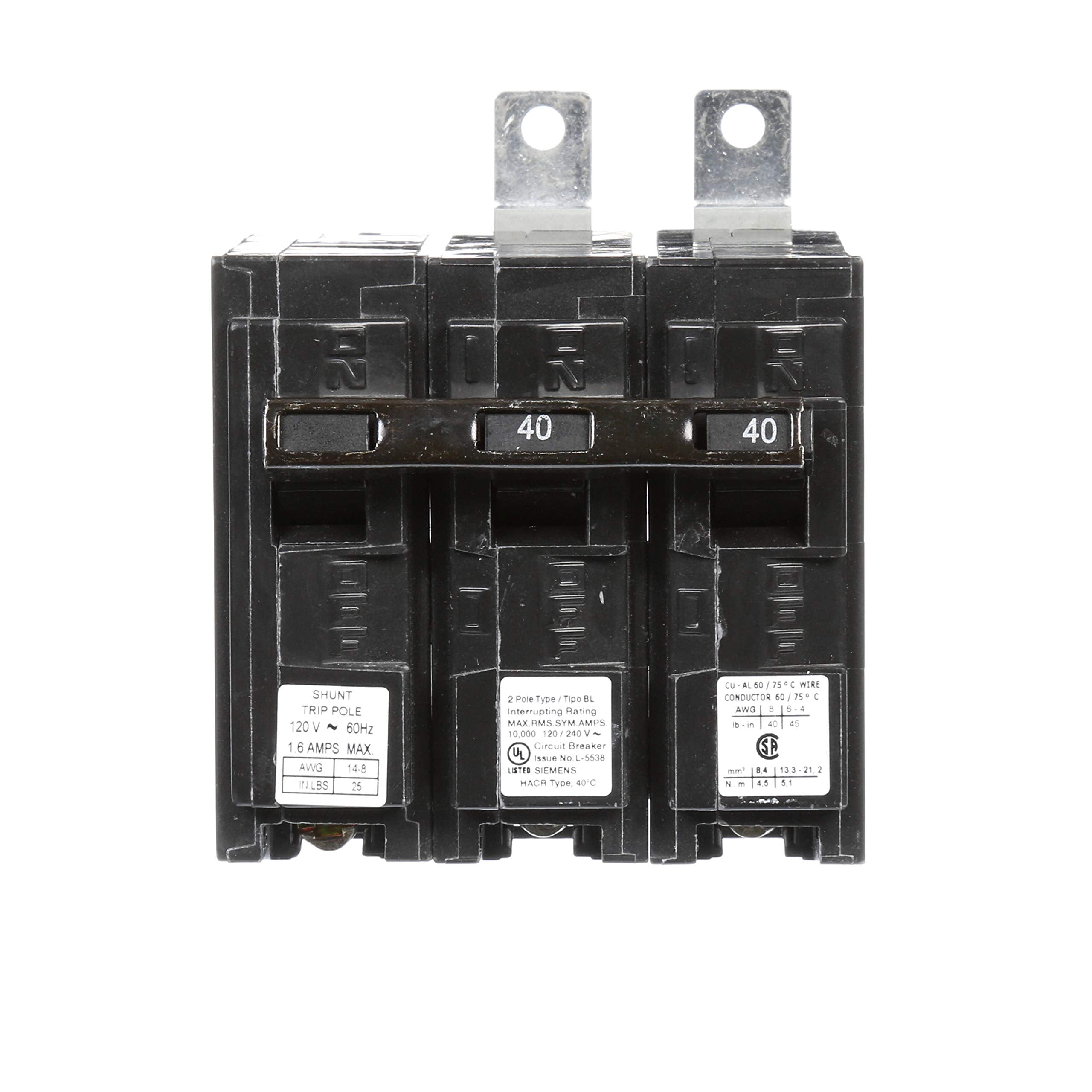

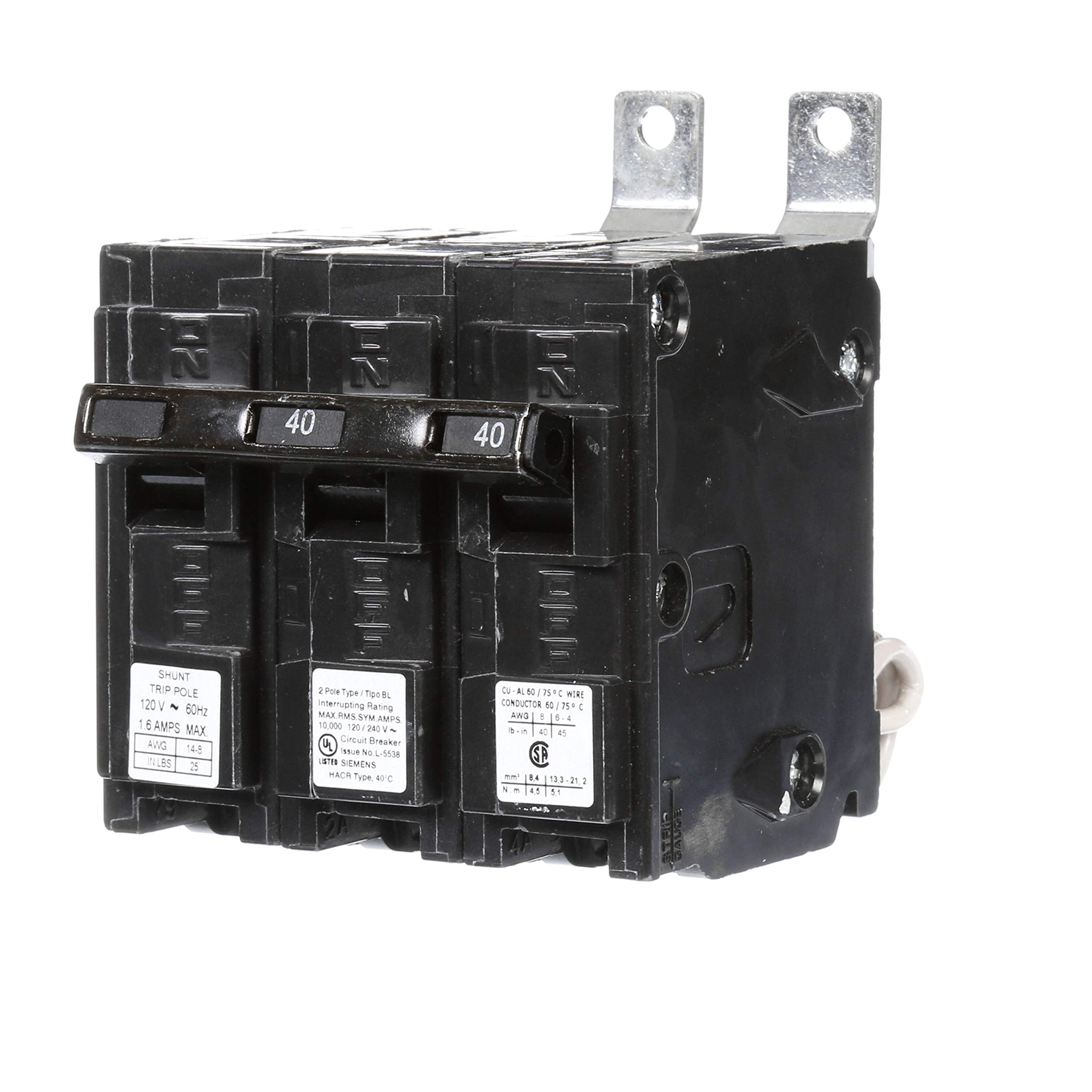

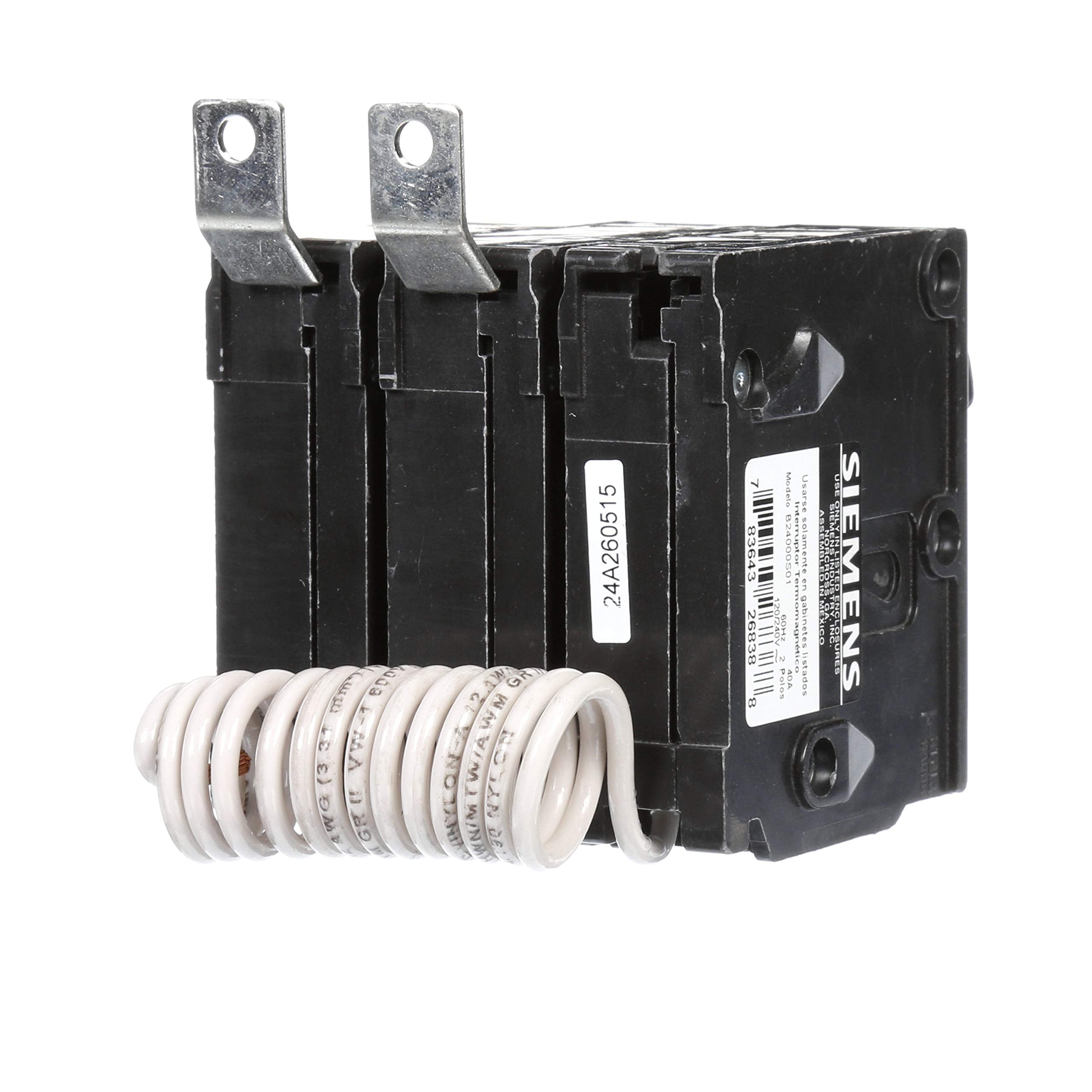

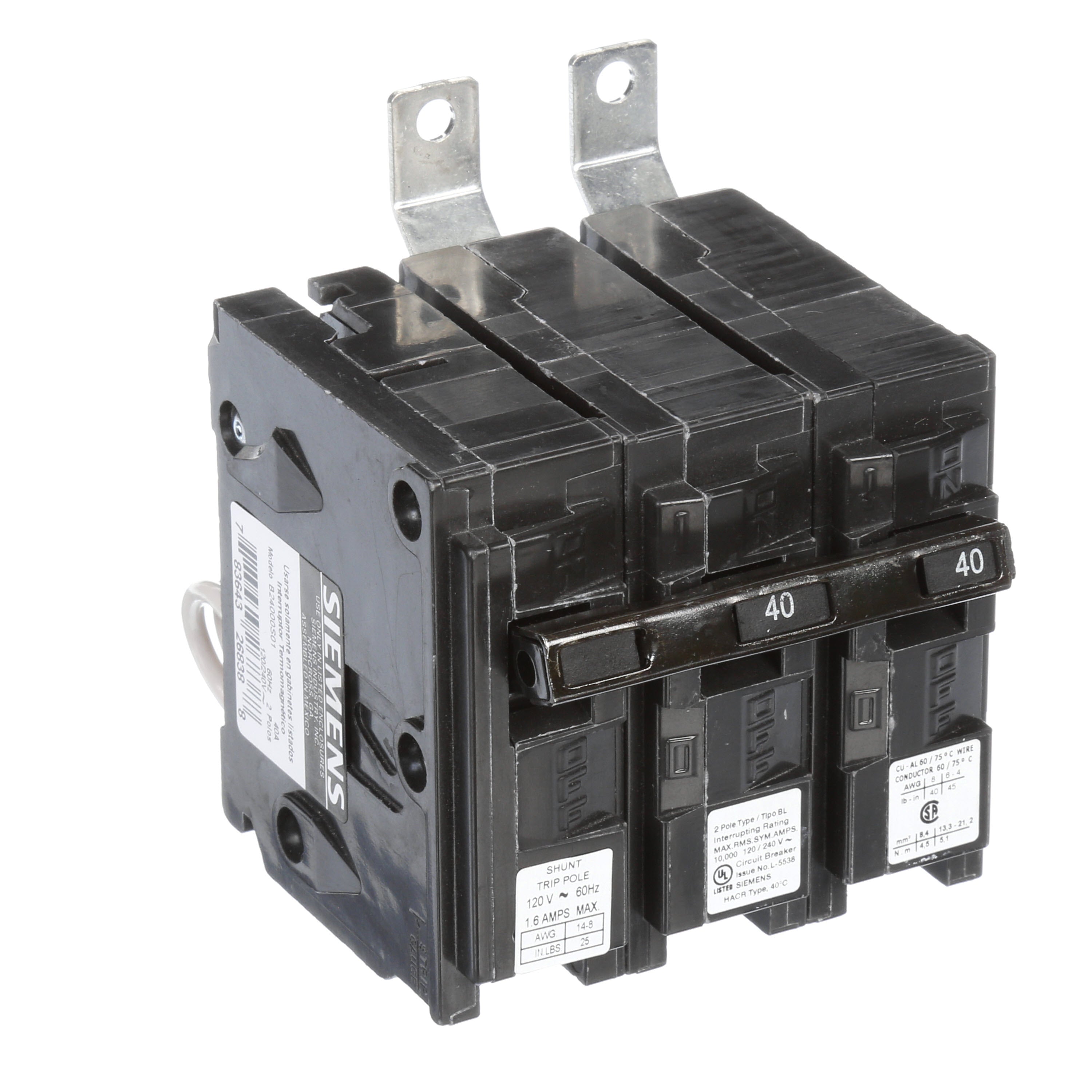

Siemens B24000S01 2-Pole molded case circuit breaker 40 Amp (Bolt-On)

Product Description

Siemens B24000S01 is a 2-pole, 40 amp molded case circuit breaker rated for 120/240 VAC with a factory-installed 120 V shunt trip. The device provides thermal-magnetic overcurrent protection with a 10 kA interrupting rating and bolt-on mounting for panel installation. It accepts copper and aluminum conductors and is UL and CSA certified for electrical distribution and branch-circuit protection applications.

• Thermal-magnetic trip with factory-installed 120 V shunt trip and 10 kA interrupting rating
• Bolt-on mounting for Siemens P1�P5 panelboards; load lug terminals
• Accepts 8 to 6 AWG copper or 8 to 4 AWG aluminum; temperature rating 40�C

Product Highlights

2-pole, 40 A; 120/240 VAC; 10 kA AIC; 120 V shunt trip; bolt-on molded case construction

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: B24000S01
• Country of Origin: Mexico

Technical Specifications

• MPN: B24000S01
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded case circuit breaker
• Current Rating: 40 A
• Voltage Rating: 120/240 VAC
• Frequency: 60 Hz
• Poles: 2
• Trip Type: Thermal-magnetic (fixed thermal and fixed magnetic)
• Shunt Trip Voltage: 120 V AC
• Interrupting Rating: 10 kA (10,000 A)
• AIC Rating: 10 kA @ 120/240 VAC
• Mounting Type: Bolt-On (panel mount)
• Terminal Type: Load lug
• Frame: BL
• Wire Size: 8 to 6 AWG (copper); 8 to 4 AWG (aluminum)
• Operating Temperature: 40 �C (ambient rating)
• Dimensions: 6.00 x 5.00 x 4.00 inches (L x W x H) - approximate
• Weight: 1.15 lb
• For Use With: Siemens P1, P2, P3, P4, P5 panelboards
• Standards/Approvals: UL 489; CSA C22.2; HACR; RoHS
• Country of Origin: Mexico
• UPC: 783643268388
• GTIN: 00783643268388
