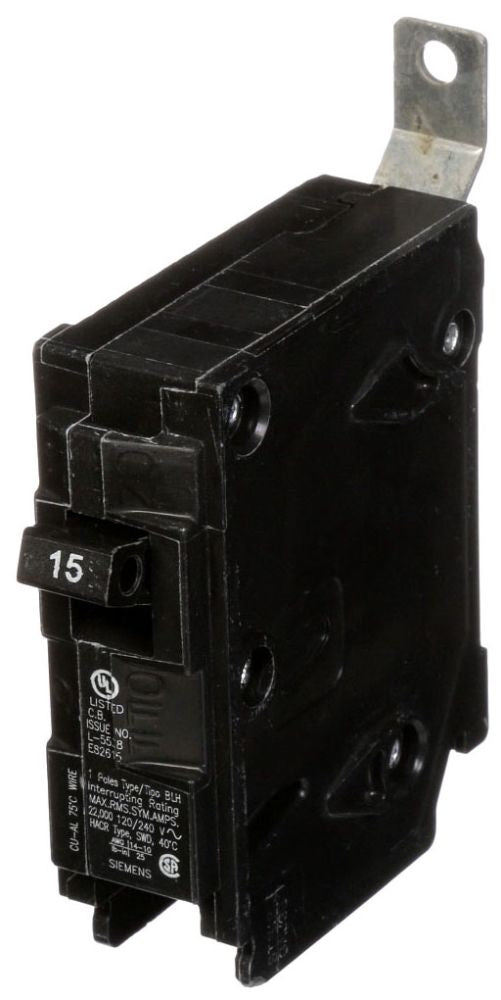

Siemens B115 Type BL Molded Case Circuit Breaker, 120 VAC, 15 A, 10 kA Interrupt, 1 Poles

Product Description

The Siemens B115 is a type BL molded case circuit breaker with a voltage rating of one hundred twenty volts alternating current and an amperage rating of fifteen amps. This circuit breaker is designed for use in panelboards to protect electrical circuits from overload and short circuit conditions. It features a bolt-on connection for secure installation and is rated for ten kiloamperes of interrupting capacity.

• UL Listed and CSA Certified for reliable performance
• Versatile application in lighting and distribution systems
• Designed for bolt-on installation in panelboards

Product Highlights

The Siemens B115 circuit breaker is engineered for efficiency in electrical distribution applications, offering quick trip response to safeguard connected equipment.

Product Information

Standard Information

• Manufacturer: Siemens
• Type: Molded Case, Thermal and Fixed Magnetic

Technical Specifications

• Application: Lighting, Distribution
• Approval: UL 489, CSA C22.2
• Installation: Bolt-On
• Interrupting Rating: 10 Kiloampere at 120 VAC (UL)
• Number Of Poles: 1
• Voltage Rating: 120 VAC
• Amperage Rating: 15 A
• Dimensions: 3 inches L x 3 inches W x 1 inch H
