SIEMENS 9837-8503 Talon Meter Socket PTS-13

Product Description

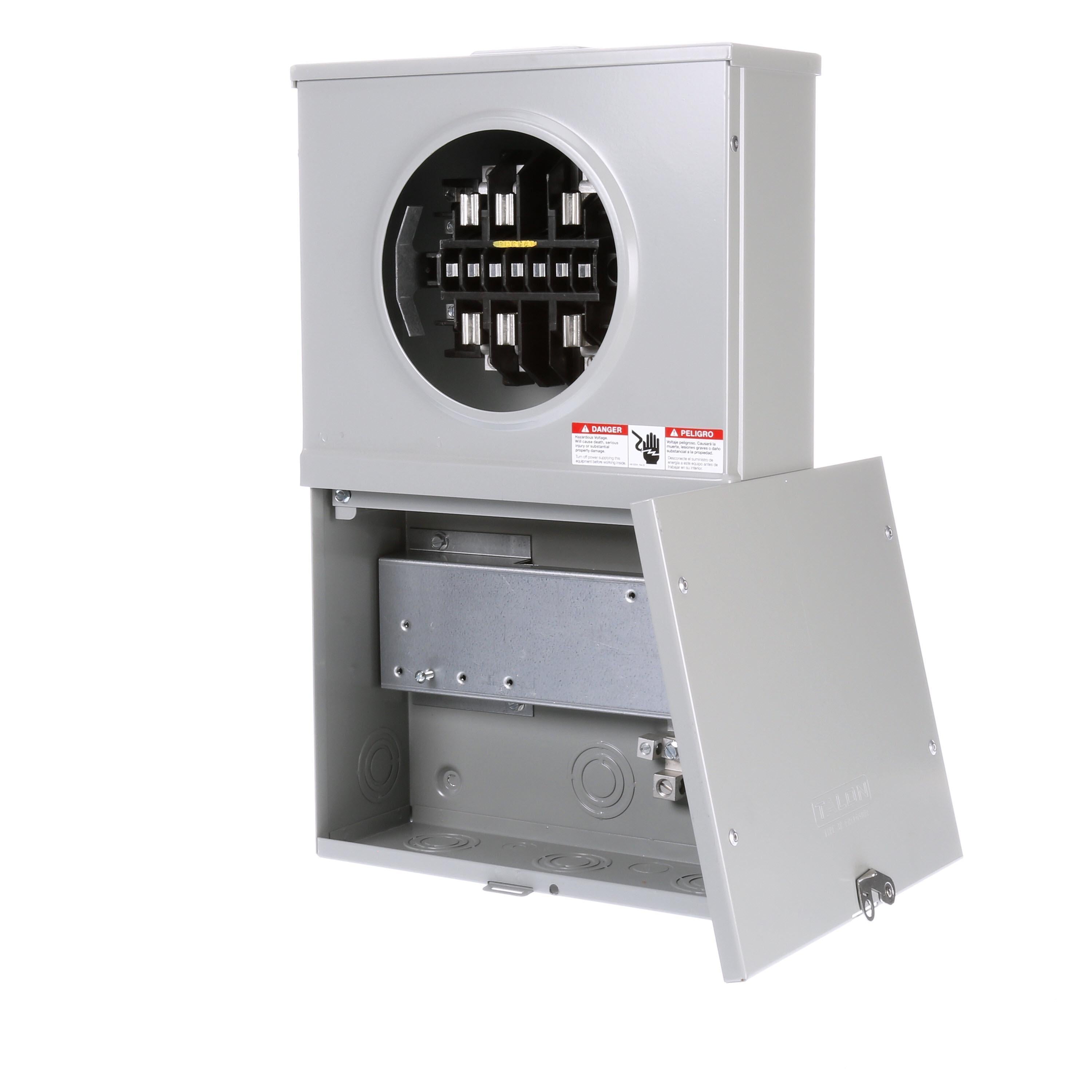

The SIEMENS 9837-8503 Talon Meter Socket PTS-13 is a steel construction designed for residential enclosures in single-family metering applications. This socket is suitable for transformer-rated applications and comes with meter mounting equipment. It is rated at 600 VAC and 20 A, accommodating wire sizes from 14 to 4 AWG and 14 to 8 AWG.

The product features a 9-cutout Type PTS-13 configuration with 13 jaws and a solid ringless cover. The enclosure is made of 16-gauge galvannealed steel with a gray polyester coating. It has a split cover and RX closing plate hub opening, supporting standard configurations like 6 and 10 poles. Additionally, the unit allows for spacing for multiple test switch configurations and includes provisions for a low test hat.

• Supports easy testing through the integrated test switch provision.
• Ensures secure wire connections via set screw terminals.
• Delivers protection with a robust 16-gauge galvannealed steel enclosure.

Product Highlights

This meter socket is ideal for various residential and transformer-rated applications, ensuring reliable performance.

Product Information

Standard Information

• Brand: SIEMENS
• MPN: 9837-8503

Technical Specifications

• Amperage Rating: 20 A
• Dimensions: 22 inches H x 12 inches W x 6 inches D
• Hub Size: 2-3/4 inches
• Hub Type: RX Closing Plate
• Terminal Type: Set Screw
• Type: 9-Cutout Type PTS-13 Transformer Rated
• Voltage Rating: 600 VAC
• Wire Size: 14 to 4 AWG, 14 to 8 AWG
• Mounting Type: Surface
• Cover Type: Solid Ringless
• Rated Voltage: 600V
• Rated Current: 20A
• Jaw Count: 13
• Enclosure Material: 16-gauge galvannealed gray polyester coated steel
• Enclosure Type: Ringless split cover
• Hub Opening: RX Cl. Plate
