Siemens 8WH20030CF07 Block

Product Description

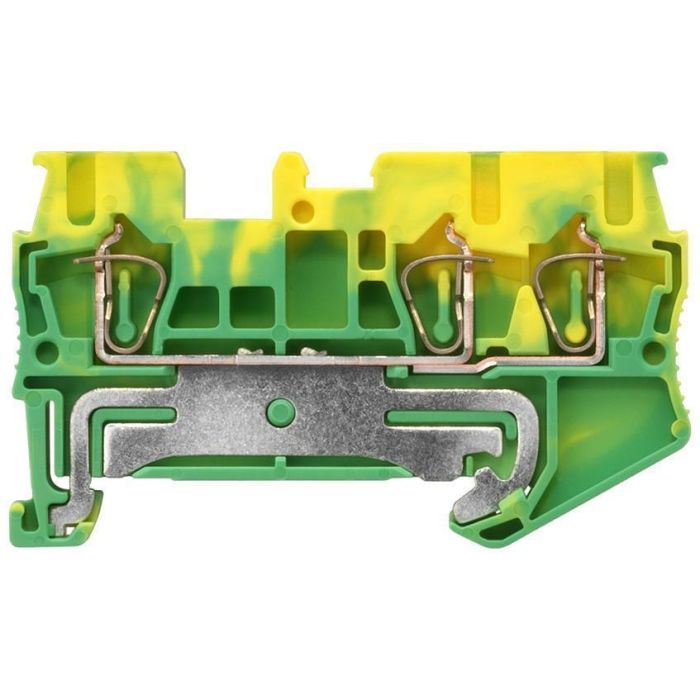

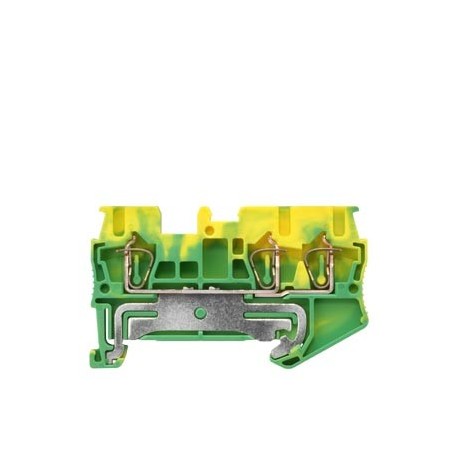

The SIEMENS 8WH20030CF07 block is a protective conductor terminal with a spring-loaded connection and 3 connection points. It accommodates a cross-section of 0.08-2.5 mm2 and has a width of 5.2mm. This PE terminal is designed for DIN rail mounting and is made of thermoplastic material.

• Protective conductor terminal with spring-loaded connection
• 3 connection points
• Cross-section: 0.08-2.5 mm2

Product Highlights

The SIEMENS 8WH20030CF07 is a reliable PE terminal for secure connections.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 8WH20030CF07
• Country of Origin: DE

Technical Specifications

• Manufacturer: Siemens
• Reference: 8WH20030CF07
• Item Code: 8WH20030CF07
• Condition: New
• Material: Thermoplastic
• Mounting Type: DIN Rail
• Spacing: 5.2
• Terminal Size: 2.5
• Terminal Type: PE
• Wire Size: 4 to 14
• Country of Manufacture: DE
• Model Number: N/8WH20030CF07
• Brand: Siemens
• MPNs: 8WH2003-0CF07, SIE8WH20030CF07, 8WH20030CF07
• EAN: 4001869346885
• HS Code: 85369010
