Siemens 8WH1000-6LG00 Term, Screw, Diode, Term Size 4

Product Description

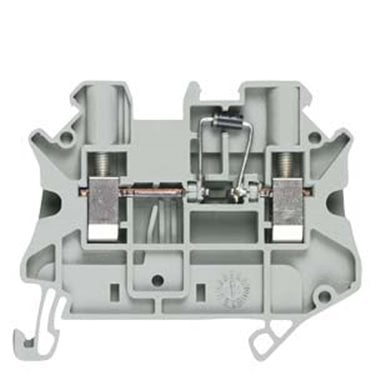

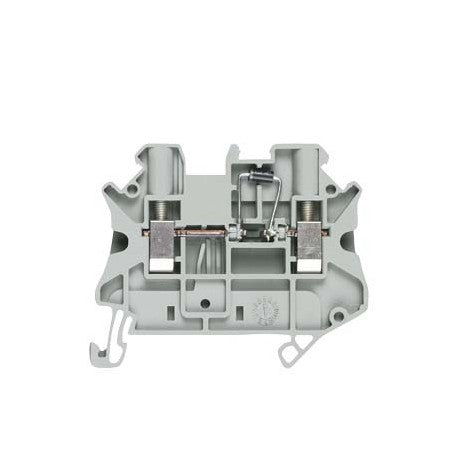

The Siemens 8WH1000-6LG00 is a diode isolating terminal with screw terminal, designed for various wiring tasks. It features a double bridge shaft for combination with standard and function terminals. It ensures secure electrical and mechanical contact when snapped onto the rail. The clamping points can be inscribed at the front using labels.

• Multi-conductor connection
• Maintenance-free design
• Diode component

Product Highlights

The Siemens 8WH1000-6LG00 diode isolating terminal simplifies wiring tasks with its screw terminal and secure DIN rail mount.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 8WH1000-6LG00
• Country of Origin: Poland

Technical Specifications

• Alternate Mfr Part Number: 8WH1000-6LG00
• Brand: Siemens
• Manufacturer Part Number: 8WH10006LG00
• Reference: 8WH10006LG00
• Condition: New
• Material: Thermoplastic
• Wire Size: 0.14 to 6
• Mounting Type: DIN Rail
• Terminal Type: Screw
• Torque Rating: 0.6 to 0.8
• Voltage Rating: 800 V
• Wire Strip Length: 9 mm
• Temperature Rating: -25 to 55
• Series: 8WH1
• Spacing: 6.2 mm
• Amperage Rating: 0.5 A
• Product brand name: SENTRON
• Design of terminal / terminal levels internally linked: No
• Terminal contact spacing: 6 mm
• Operating voltage / rated value: 800 V
• Combustibility class according to UL 94: V0
• Operational current / rated value: 1 A
• Product component / required / end cover plate: Yes
• Number of terminal levels: 1
• Number of terminal points / per terminal level: 2
• Stripped length: 9 mm
• Connectable conductor cross-section / solid / maximum: 6 mm
• Connectable conductor cross-section / finely stranded / with core end processing / minimum: 0.1 mm
• Connectable conductor cross-section / finely stranded / with core end processing / maximum: 3 mm
• Tightening torque / with screw-type terminals / minimum: 0.6 N m
• Tightening torque / with screw-type terminals / maximum: 1 N m
• Height / with lowest-profile installation: 47.5 mm
• Length: 48 mm
• Fastening method: DIN rail 35 mm
• Material / of the insulating body: Thermoplast
• Ambient temperature / during operation / minimum: -25
• Ambient temperature / during operation / maximum: 55
• Product family: 8WH terminals
• Connectable conductor cross section fine-strand with cable end sleeve (EF007339): ['0.14', '2.5'] mm
• Connectable conductor cross section solid-core (EF007337): ['0.14', '6.0'] mm
• Rated current In (EF008250): 0.5 A
• Rated voltage (EF000228): 800 V
• Type of electrical connection 1 (EF002526): Screw connection
• Type of electrical connection 2 (EF002527): Screw connection
• Connection position (EF008219): Sideways
• Number of levels (EF002659): 1
• Number of clamp positions per level (EF002660): 2
• Mounting method (EF000003): DIN rail (top hat rail) 35 mm
• Material insulation body (EF007543): Thermoplastic
• Operating temperature (EF002393): ['-25', '55']
• Inflammability class of insulation material according to with UL94 (EF002521): V0
• Width/grid dimension (EF002522): 6.2 mm
• Height at lowest possible mounting height (EF002523): 47.5 mm
• Length (EF001438): 47.7 mm
• Explosion-tested version 'Ex e' (EF008498): false
• Closing plate required (EF002525): true
• Internally connected stages (EF002661): false
• Connectable conductor cross section fine-strand without cable end sleeve (EF007341): - mm
• Connectable conductor cross section multi-wired (EF007343): - mm
• MPNs: 8WH1000-6LG00, SIE8WH10006LG00, 8WH10006LG00
• EAN: 4001869403120
• HS Code: 85369010
• Color: Gray
