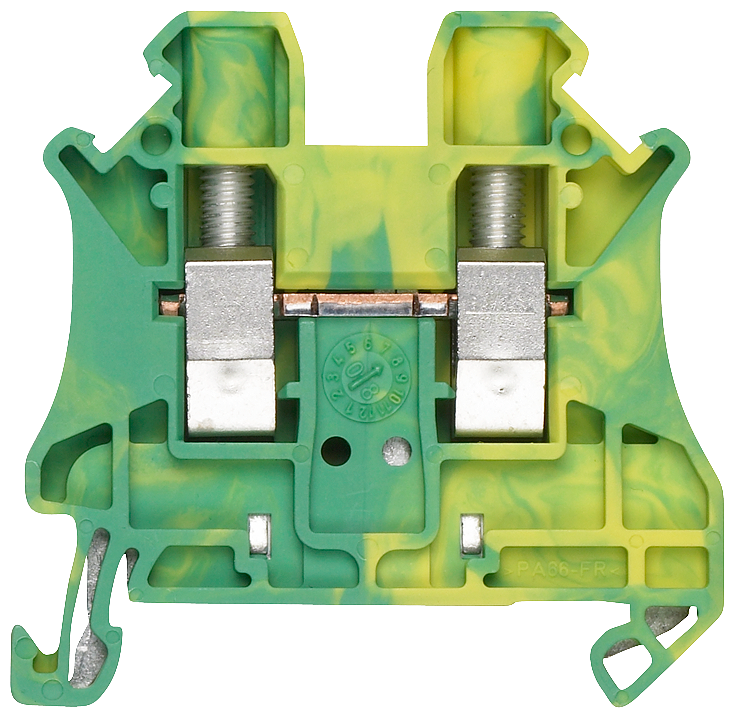

Siemens 8WH1000-0CF07 PE-terminals.2,5q

Product Description

The Siemens 8WH1000-0CF07 PE-TERMINALS.2,5Q with screw connection is an ALPHA FIX terminal block. This screw terminal has a klemenbreite of 5,2 MM and is green-yellow in color. It is designed for 2,5 MM2 wiring applications.

• Screw connection type
• Thermoplastic material
• DIN Rail mounting

Product Highlights

The Siemens 8WH1000-0CF07 PE-TERMINALS.2,5Q is ideal for various industrial and electrical applications requiring secure and reliable connections.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 8WH1000-0CF07
• Country of Origin: Germany

Technical Specifications

• Applications: ALPHA FIX terminal block
• Connection Type: Screw Connection
• Material: Thermoplastic
• Mounting Type: DIN RAIL
• Spacing: 5.2mm
• Standard: UL 94
• TC Connection: Screw-Type Terminal
• Terminal Size: 2.5mm2
• Type: Screw Terminal
• Brand: Siemens
• Sub Brand: SENTRON
• Color: GNYE
• Manufacturer Part Number: 8WH10000CF07
• Product Type: DIN Rail Terminal Block
• Number of Levels: 1
• Series: 8WH1000
• Voltage: 1kV
• Termination Type: Screw
• Standards/Approvals: CE, CSA, EAC, UL
• Country of Origin: Germany
