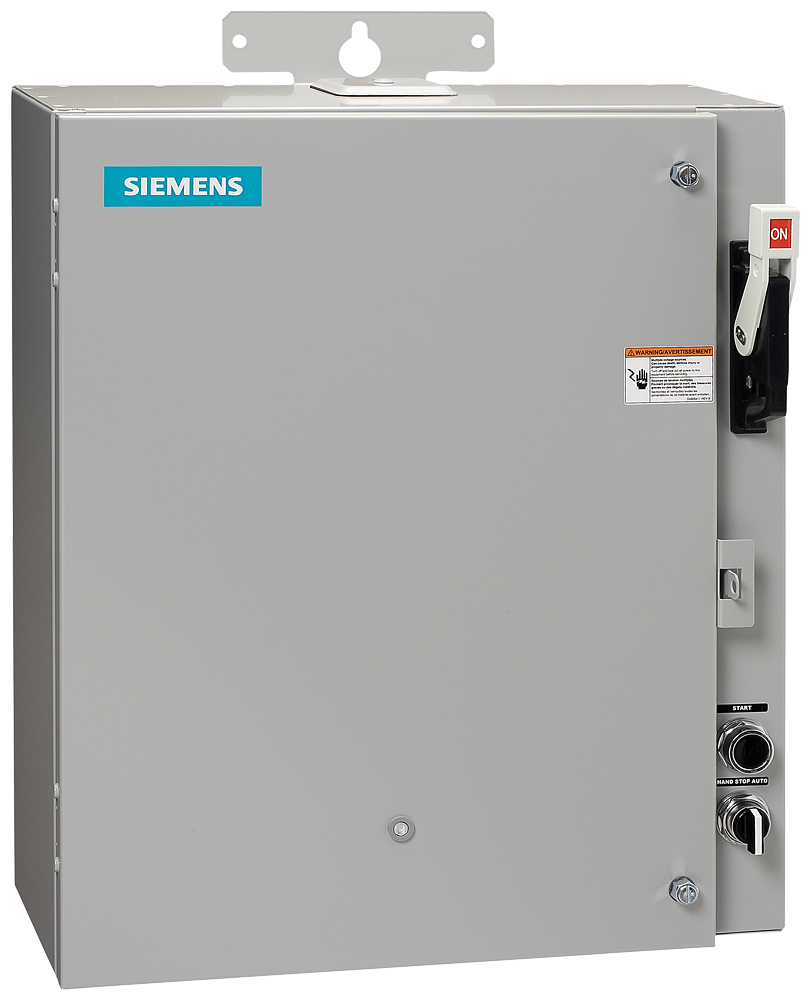

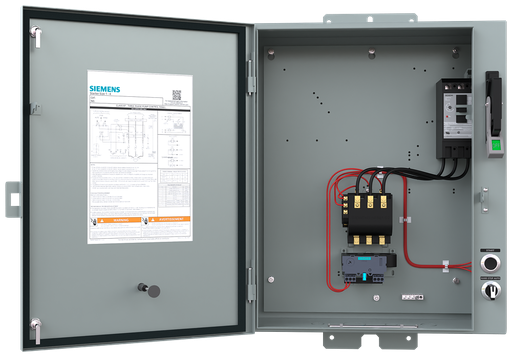

Siemens 87FUF6MC Full Voltage Pump Control Panel 25 Hp Size 2

Product Description

The SIEMENS 87FUF6MC is a Size 2 Full Voltage Pump Control Panel designed for 3-Phase pump applications. It operates with an input voltage range of 240/440 to 480 VAC and handles 13 to 52 Amp, supporting motors up to 25 Hp. This panel features an H2 Solid-state overload relay and a 50A circuit breaker for protection. Its NEMA 3/3R enclosure ensures weather-proof outdoor use for motor control applications.

• Equipped with an H2 Solid-state overload relay for comprehensive motor protection.
• Features a 50A circuit breaker and standard type contactor for reliable operation.
• Includes HOA Selector Switch and Start Push Button for intuitive operational control.

Product Highlights

Full voltage pump control panel with NEMA 3/3R enclosure for outdoor 3-phase pump applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 87FUF6MC
• Country of Origin: Mexico

Technical Specifications

• Brand: Siemens
• MPN: 87FUF6MC
• Input Voltage: 240/440 to 480 VAC
• Amperage: 13 to 52 Amp
• Motor Horsepower: 25 Hp
• Phase: 3-Phase
• NEMA Rating: 3/3R
• Panel Type: Full Voltage Pump Control Panel
• Size: 2
• Overload Relay Type: H2 Solid-state
• Overload Relay Amp Range: 13-52A
• Coil Voltage: 220-240/440-480VAC 60Hz
• Contactor Type: Standard
• Circuit Breaker: 50A
• Controls: HOA Selector Switch & Start Push Button
• Enclosure Type: NEMA 3/3R, Weather proof outdoor use
• Applications: Motor Controls
• Number of Poles: 3 Pole
• Operating Cycles: 10000000
• Max System Voltage: 600 VAC
• Reset Type: Auto/Manual/Remote
• Connection Type: Box lug
• Type: Pump Controller
• Sub Brand: Class 87 Pump Panel
• Frequency Rating: 50/60 Hz
• Operating Temperature: -4 to 104 deg F
• Timing: 19 to 29 ms On/10 to 24 ms Off
• Auxiliary Contacts Rating: 10 A at 600 VAC A600, 5 A at 600 VDC P600
• Storage Temperature: -22 to 149 deg F
• Main Contacts: 3NO
• Auxiliary Contacts (Contactor): 0NC, 1NO
• Total Auxiliary Contacts Maximum: 7
• Holding Power (AC Minimum): 8.6 W
• Apparent Pick-up Power of Magnet Coil: 218 VAC
• Apparent Holding Power of Magnet Coil: 25 VAC
• Operating Range Factor Control Supply Voltage Rated Value of Magnet Coil: 0.85 to 1.1 VDC
• Drop-out Voltage of Magnet Coil: 50% related to the input voltage
• Adjustable Pick-up Value Current of Current Dependent Overload Release: 13 to 52 A
• Trip Time at Phase-loss Maximum: 3 sec
• Protective Coating: On printed circuit board
• Operating Current of Auxiliary Contacts of Overload Relay: 5 A at 600 VAC/1 A at 250 VDC
• Mounting Type: Vertical surface mounting and installation
• Maximum Short-Circuit Current Breaking Capacity: 100 kA at 240 VAC/100 kA at 480 VAC/25 kA at 600 VAC
• Electrical Ratings: 10 hp at 200/208 VAC/15 hp at 220/230 VAC/25 hp at 460/480 VAC/25 hp at 575/600 VAC
• Standards: UL, CSA
• Number of Motors: 1
• Load Wattage: 18640 W
• Motor Type: AC Motor
• Control/Drive Type: Motor Starter
