Siemens 6sl32550aa004ca1 Basic Operator Panel Sinamics

Product Description

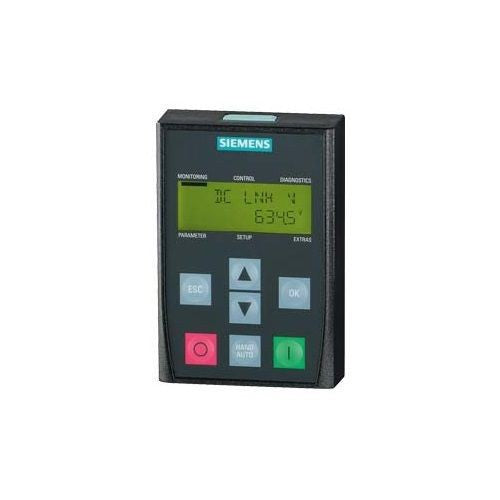

The SIEMENS 6sl32550aa004ca1 is a Basic Operator Panel (BOP) designed for use with SINAMICS series variable frequency drives. It provides local parameter access, commissioning functions, and manual control capability directly at the drive unit. Technicians use the panel to read and write drive parameters, monitor operating status, and run basic diagnostics without a separate programming device. The panel is designed for installation in the drive's front interface slot, making it a practical tool for initial commissioning and field service on SINAMICS platform drives.

This operator panel is suited for industrial and commercial applications where on-site access to drive settings is required. It is intended for use by qualified drive technicians and automation professionals working with SINAMICS series VFD equipment. Typical install scenarios include motor control centers, machine panels, and HVAC air handling units using variable speed drives. The panel supports parameter copy and basic jog functions, reducing reliance on laptop-based commissioning tools in the field.

Key Features

• Plugs directly into the SINAMICS drive front interface for immediate local access
• Enables parameter read and write functions at the drive without external software
• Supports basic commissioning and fault diagnostics on-site
• Compact form factor suited for panel-mounted and freestanding drive enclosures
• Part of the SINAMICS platform operator interface ecosystem

Compatibility

Designed as an OEM-style Basic Operator Panel for SINAMICS series variable frequency drives. Verify drive model compatibility with the SINAMICS platform documentation before installation.

Installation Notes

Installation should be performed by a qualified electrician or certified drive technician familiar with variable frequency drive systems. De-energize the drive and follow lockout/tagout procedures before inserting or removing the operator panel. The panel connects to the front interface port of the drive and typically requires no additional tools for mounting. Refer to the applicable SINAMICS drive installation manual and local electrical codes for proper handling and commissioning procedures.

Technical Specifications

• Series: SINAMICS
• Type: Basic Operator Panel
• EAN/UCC-13: 4019169459044

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6sl32550aa004ca1
