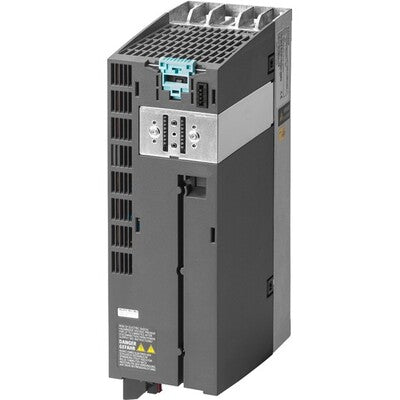

Siemens 6SL32101PC222UL0 Sinamics Power Module PM240-2

Product Description

The Siemens 6SL32101PC222UL0 Sinamics Power Module PM240-2 is designed without a filter and has a built-in braking chopper. It operates with an input of 200 to 240 VAC and delivers an output of 230 VAC. It is suitable for a wide range of applications.

• Extremely compact design
• Significantly smaller than previous generation
• Positioning capability

Product Highlights

This power module is ideal for various industrial applications, offering flexibility and cost savings due to its modular design and reduced need for spare parts.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6SL32101PC222UL0
• Country of Origin: United Kingdom of Great Britain and Northern Ireland (the)

Technical Specifications

• Type: Power Module
• Catalog ID: SIE6SL32101PC222UL0
• GTIN: 00887621831028
• UNSPSC: 32151706
• Input Current: 29 A
• Input Voltage: 200 to 240 VAC
• Output Current: 22 A
• Output Voltage: 230 VAC
• Power Dissipation: 0.2 kW
• Powering Capacity: 5-1/2 hp
• Series: SINAMICS G120 Series
• Specifications: IP20/Open
• Temperature Rating: -10 to 50 deg C
• Phase: 3 Phase
• UPC Code: 887621831028
• Output Frequency: 0 to 550 Hz
• Brand: SIEMENS
• Manufacturer Part Number: 6SL32101PC222UL0
• Approval: UL, CUL, CE, C-Tick (RCM), SEMI F47, KCC
• Network frequency: (input) 47-63 Hz
• Functions: Pwr. module
• Design: brk. chopper
• Rated current: 22A (low overload LO) 17.5A (based-load current IH for high overload HO)
• Rated active power (kW): 5.5kW (low overload LO) 4kW (high overload HO)
• Rated power (HP): 7.5HP / 7-1/2HP (low overload LO) 5HP (high overload HO)
• Connection type: Term. connector (line supply / motor connection)
• Term. connector (PE connection): None
• Protection functions: Undervoltage Overvoltage Overload Ground fault Short-circuit Stall protection Motor blocking protection Motor over-temperature Inverter over-temperature Parameter locking
• Efficiency: 0.97
• Degree of protection: IP20
• Ambient air temperature for operation: (low overload; without derating) -10...+40 (high overload; without derating) -10...+50
• Mechanical resistance: Vibration resistance Shock resistance
• Customs Tariff Number: 85044084
• Order code / Manufacturer SKU: 6SL32101PC222UL0
• Manufacturer product status: Commercialized
• EAN code: 4042948666289
• Compliant with standard(s): EN 60721-3-1 EN 60721-3-2 EN 60721-3-3 EN 60068-2-6 EN 61800-5-1 CE cULus RCM SEMI F47 RoHS EAC WEEE EN 60204
• Location of origin: Great Britain
