Siemens 6SL32101KE158UF2 SINAMICS G120C 2,2KW

Product Description

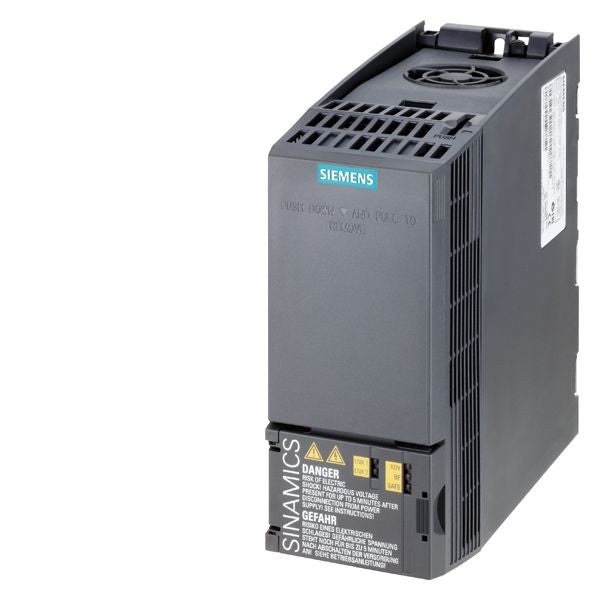

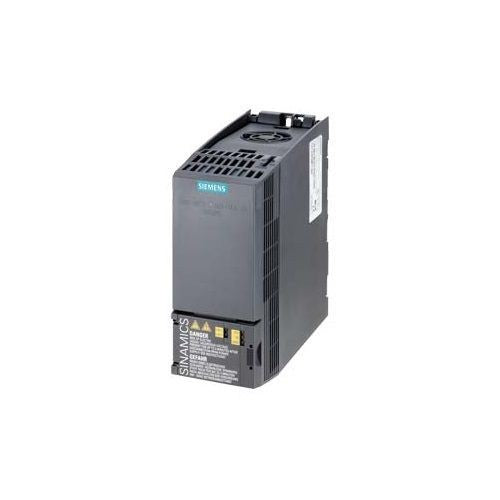

The Siemens 6SL32101KE158UF2 SINAMICS G120C is a compact converter delivering high power density. Rated at 2,2KW with 150% overload for 3 seconds, it operates on 3AC380-480v +10/-20% at 47-63HZ. Features an unfiltered i/o-interface with 6DI, 2DO, 1AI, and 1AO, along with safe torque off and integrated fieldbus PROFINET-pn. Protection is rated IP20/ ul open type, size fsaa 173x73x178(hxwxd), external 24v.

• Rated power 2,2KW with 150% overload for 3 seconds
• Operates on 3AC380-480v +10/-20% at 47-63HZ
• Integrated fieldbus PROFINET-pn and safe torque off feature

Product Highlights

This compact SINAMICS G120C converter is suitable for applications like conveyor belts, mixers, pumps and fans.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6SL32101KE158UF2
• Country of Origin: GB

Technical Specifications

• Rated Power: 2,2KW
• Overload: 150% for 3 sec
• Voltage Rating: 380 to 480 VAC Input, 400 VAC Output
• Frequency: 47-63HZ
• I/O Interface: 6di, 2do,1ai,1ao
• Safety Feature: Safe torque off
• Fieldbus: PROFINET-pn
• Protection: IP20/ ul open type
• External Power: 24v
• Brand: SIEMENS
• Manufacturer Part Number: 6SL32101KE158UF2
• Series: SINAMICS G120C Series
• Alternate Catalog Number: 6SL3210-1KE15-8UF2
• Amperage Rating: 7.4 A Input, 5.6 A Output
• Catalog Number: 6SL32101KE158UF2
• Enclosure Type: IP20/Open
• Horsepower: 3 hp
• Mounting Type: Side-by-Side
• Standards: CE CertifiedcUL ListedUL ListedC-Tick (RCM)EMC 2004/108/EC/2006/95/EC
• Type: 3-Phase
• UNSPSC: 39121007
• Application: For HVAC/water/wastewater
