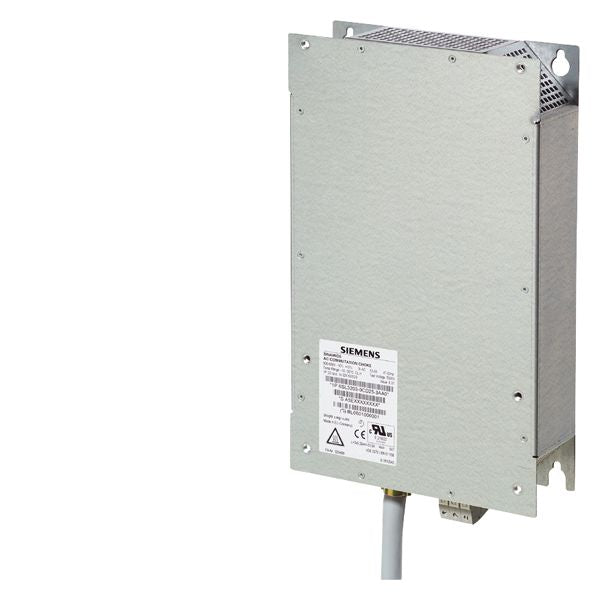

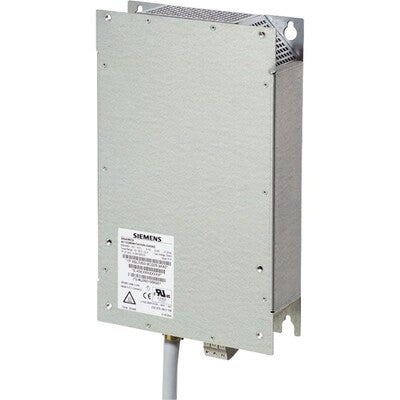

Siemens 6SL32030CD253AA0 Opt Sinamics Line Reactor 480V, 63A

Product Description

The SIEMENS 6SL32030CD253AA0 Opt Sinamics Line Reactor is an AC line reactor with 480V and 63A. It is designed for power module FSD 30 kW and rated power based on I_L foot print. This reactor is suitable for use with power converters and offers IP20 protection.

• AC Line Reactor 480V, 63A
• For power module FSD 30 kW
• Rated power based on I_L foot print

Product Highlights

The SIEMENS 6SL32030CD253AA0 is an AC line reactor designed for power modules, providing effective line impedance.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6SL32030CD253AA0
• Country of Origin: DE

Technical Specifications

• Category: Motors, Actuators, Solenoids and Drivers
• Accessory Type: AC Line Reactor
• Manufacturer: Siemens
• Part Status: Active
• Packaging: Box
• Specifications: 480V, 63A
• Alternate Catalog Number: 6SL3203-0CD25-3AA0
• Amperage Rating: 63 A
• Brand: Siemens
• Catalog Number: 6SL32030CD253AA0
• Country of Origin: DE
• Depth: 3.3 in
• Enclosure Type: Open/IP20
• Phase: 3
• Standards: cULus RecognizedRoHS Compliant
• UNSPSC: 39121012
• Voltage Rating: 220 to 480 VAC
• Width: 12.2000 in
• Part #: 6SL3203-0CD25-3AA0
• Weight: 29.00 lbs
• Main function: Choke
• Functions: Line reactor / choke
• Supply voltage (AC): 380Vac-480Vac (400Vac / 415Vac / 440Vac)
• Type of network: 3-phase (3P / 3AC)
• Rated current: 63A
• Connection type: Screw connection (line / load connection)
• M8 screw (PE connection): None
• Degree of protection: IP20
• Ambient air temperature for operation: -5...+40 0C
• Technical compatibility with: 6SL3210-5BE32-2.V0
• Frame size FSE: None
• Power dissipation/losses (50Hz): 90 W
• Power dissipation/losses (60Hz): 115 W
• Order code / Manufacturer SKU: 6SL32030CD253AA0
