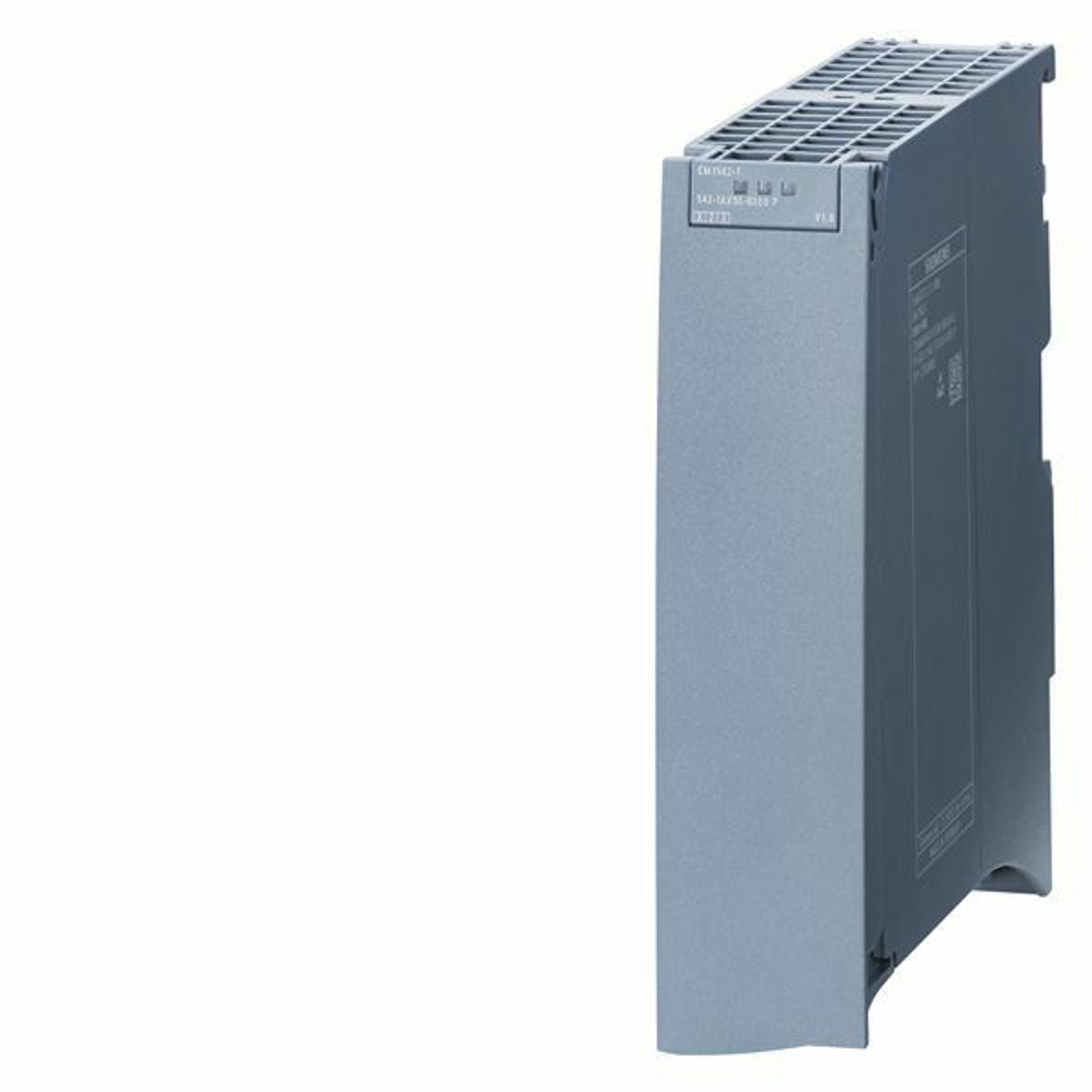

Siemens 6GK75421AX000XE0 Communications Module CM 1542-1

Product Description

The SIEMENS 6GK75421AX000XE0 communications module CM 1542-1 connects S7-1500 to PROFINET as an IO-controller. It supports TCP/IP, ISO-ON-TCP, UDP, and S7-communication. This module also features IP-broadcast/multicast, SNMPV1, DHCP, and clock synchronization via NTP, with 2xRJ45 (10/100 Mbit).

• Connects S7-1500 to PROFINET as IO-controller
• Supports TCP/IP, ISO-ON-TCP, UDP, and S7-communication
• Features IP-broadcast/multicast, SNMPV1, DHCP, and clock synchronization via NTP

Product Highlights

The SIEMENS 6GK75421AX000XE0 communication module is designed for connecting SIMATIC S7-1500 to PROFINET, supporting various communication protocols and synchronization methods.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6GK75421AX000XE0
• Country of Origin: Germany

Technical Specifications

• Catalog Number: 6GK75421AX000XE0
• Manufacturer: Siemens
• Brand: Siemens
• Country of Origin: Germany
• Bus Current: 0.22 A
• Catalog ID: SIE6GK75421AX000XE0
• Communication Rate: 10 to 100 Mbps
• Power Dissipation: 3.3 W
• Temperature Rating: 0 to 40 deg C Vertical, 0 to 60 deg C Horizontal
• Voltage Rating: 15 VDC
• Application: For connection of S7-1500 to PROFINET as input/output controller TCP/IP, ISO-on-TCP and UDP
• Communication Medium: RJ45, TCP/IP, Open/S7 Communication
• Backplane Current Load: 0.22 Amp at 15 Volt DC
• Alternate Catalog Number: 6GK7542-1AX00-0XE0
• EANUCC13: 4019169230100
• UNSPSC: 32151705
• Amperage Rating: 0.22
