Siemens 6FX80022DC101CB0 Signal Cable Assembly 21 Meter L

Product Description

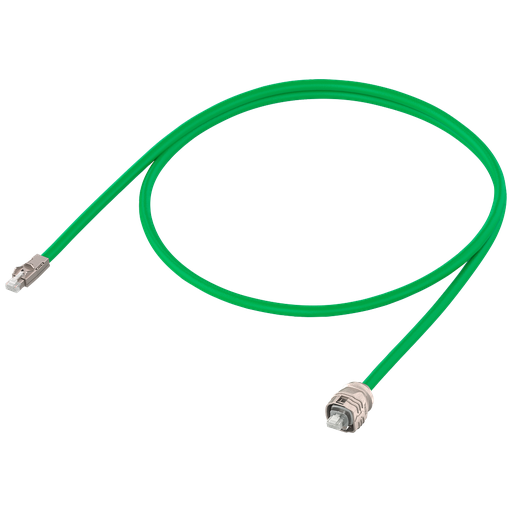

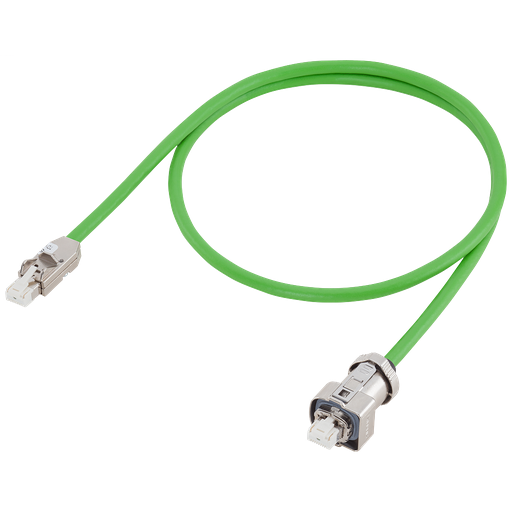

The SIEMENS 6FX80022DC101CB0 is a preassembled signal cable, part of the Motion Connect 800 series, designed as an encoder feedback cable. It features a PUR jacket in green. This cable is suitable for trailing applications and comes with RJ45 and DRIVE-CLIQ connectors. The cable length is 21 meters.

• Preassembled signal cable
• 21m length
• Encoder feedback cable

Product Highlights

Preassembled signal cable with a length of 21m, designed for encoder feedback applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6FX80022DC101CB0
• Country of Origin: Slovakia

Technical Specifications

• Type: Servo Drive Cable Assembly
• Function: Encoder Feedback Cable
• Length: 21m
• Manufacturer: Siemens
• Product Family: SINAMICS
• Primary brand: Siemens
• Main function: Cable
• Product series / family name: MOTION-CONNECT 800PLUS series
• Functions: Pre-assembled signal cable / cordset
• Diameter: 7.1mm cable outer sheath diameter
• Connection type: RJ45 connector
• DRIVE-CLIQ connector: DRIVE-CLIQ connector
• Equivalent to: 6FX80022DC101CB0
• Part #: 6FX8002-2DC10-1CB0
• Category: Electrical Cable/Wire
