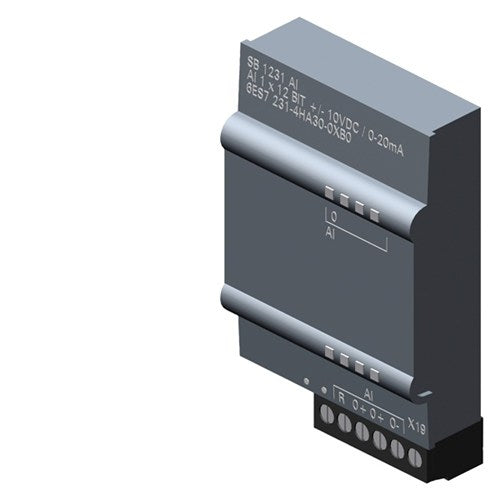

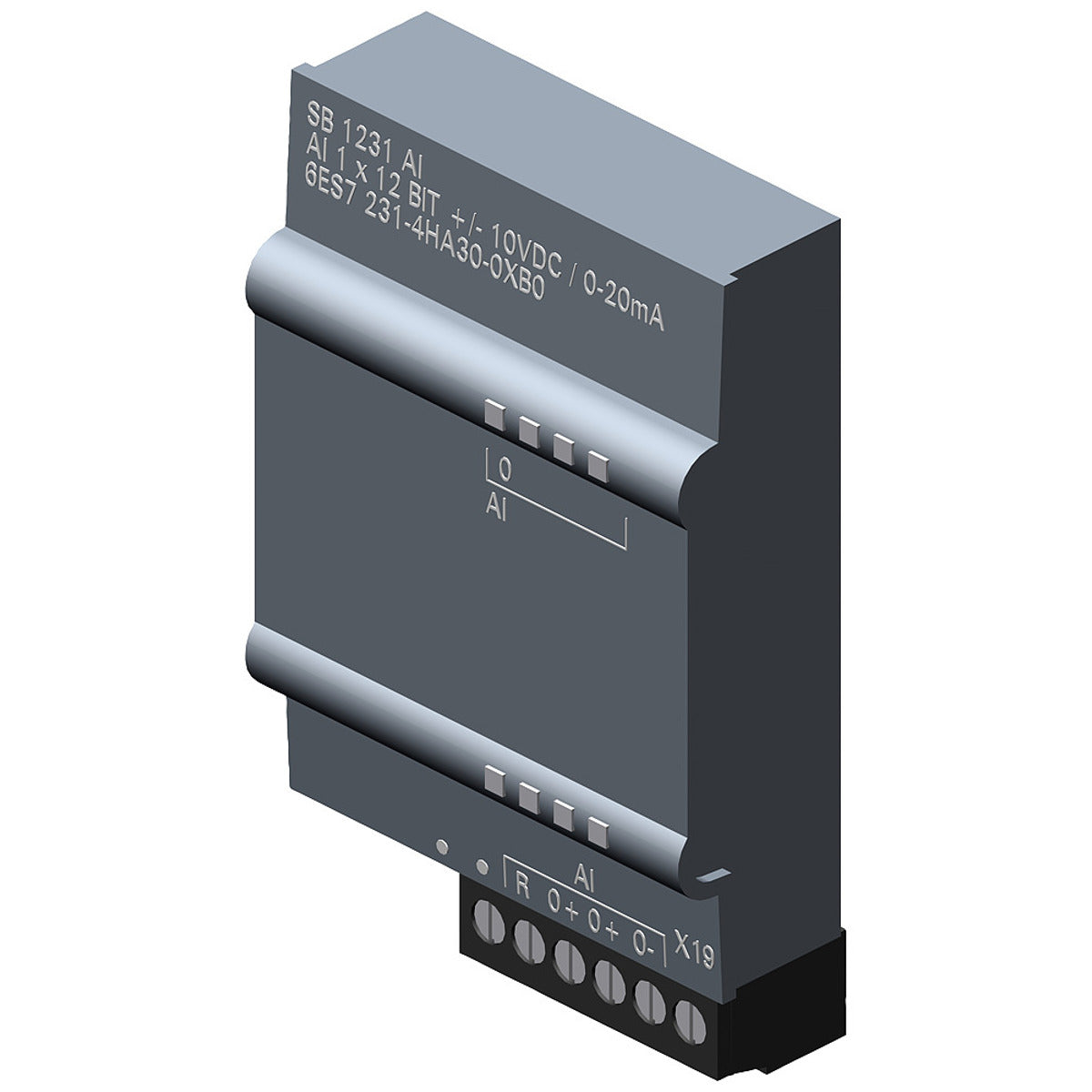

Siemens 6ES72314HA300XB0 Simatic S7-1200 Analog Input Module

Product Description

The SIEMENS 6ES72314HA300XB0 input module is designed for industrial automation and control applications. Part of the SIMATIC S7-1200 series, this module features 1 analog input and operates on a 24VDC supply voltage. It is designed for DIN rail mounting with screw terminal connections. Suitable for use with SIMATIC S7-1200 systems.

• Input Module
• DIN Rail Mounting
• 24VDC Supply
• SIMATIC S7-1200 Series

Product Highlights

Analog input module with 12-bit resolution, ideal for industrial automation and control within SIMATIC S7-1200 systems.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ES72314HA300XB0
• Country of Origin: China

Technical Specifications

• Catalog Number: 6ES72314HA300XB0
• Manufacturer: Siemens
• Brand: SIEMENS
• Country of Origin: China
• Made in USA: No
• UPC: 040892696721
• GTIN: 00040892696721
• Category: Industrial Automation and Controls
• Controllers: PLC Modules
• Number of Inputs and Type: 1 - Analog
• Voltage - Supply: 24VDC
• Series: SIMATIC S7-1200
• Mounting Type: DIN Rail
• Packaging: Box
• Termination Style: Screw Terminal
• Part Status: Active
• Operating Temperature: -20 C ~ 60 C
• Type: Input Module
• Approval Agency: CE, CSA, cULus, UL
• For Use With/Related Products: SIMATIC S7-1200
• Base Product Number: 6ES72314
• Temperature Rating: -20 to 60 deg C
• Voltage Rating: 24 VDC
• Number of Inputs: 1
• Amperage Rating: 55 mA
• Resolution: 12 bit
• Model: 6ES7231-4HA30-0XB0
• MPN: 6ES7231-4HA30-0XB0
• For Use With: S7-1200 Controllers
• Input Current: 55 mA A
• Input Type: Analog
• Number of IO Ports: 1
• Numeric ID: 4075991
• Primary Type: Input
• Supply Voltage: 24 VDc
• Temperature Operating Range: -20 to 60 C
• Length: 3.150000000 in
• Analogue inputs configurable: true
• Analogue outputs configurable: true
• Appendant operation agent (Ex ia): false
• Appendant operation agent (Ex ib): false
• Explosion safety category for dust: None
• Explosion safety category for gas: ATEX gas-ex-protection, Cat. 3G
• Input signal, configurable: true
• Input, current: true
• Input, resistance thermometer: false
• Input, resistor: false
• Input, thermocouple: false
• Input, voltage: true
• Number of analogue inputs: 1
• Number of analogue outputs: 0
• Output signal configurable: true
• Output, current: false
• Output, voltage: false
• Resolution of the analogue inputs: 11 Bit
• Suitable for safety functions: false
• Type of electric connection: Screw-/spring clamp connection
• Width: 38 mm
• Height: 62 mm
• Depth: 21 mm
