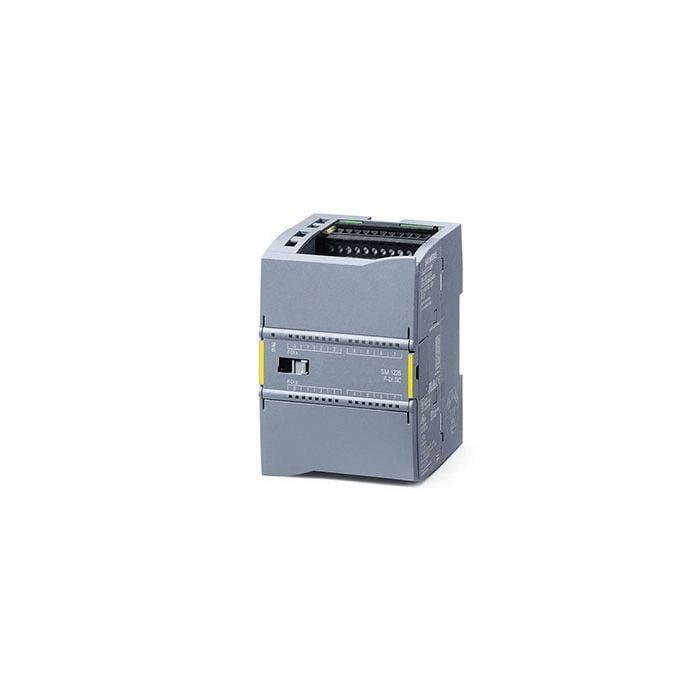

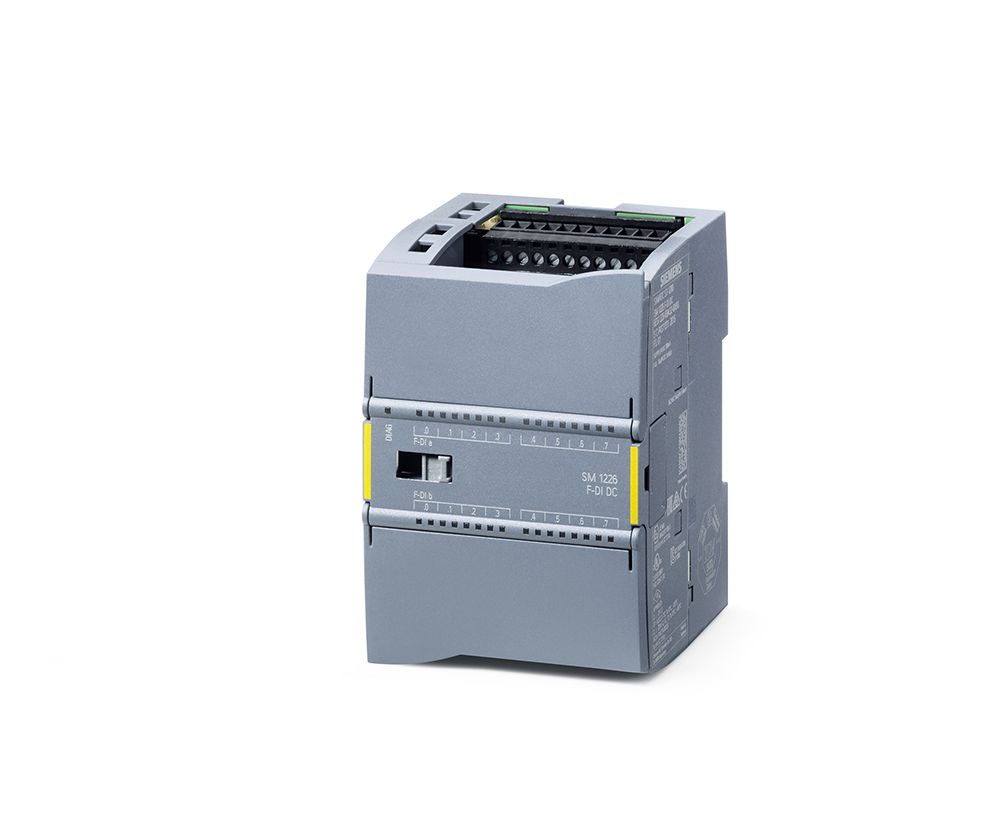

Siemens 6ES72266BA320XB0 Digital Input SM 1226

Product Description

The SIEMENS 6ES72266BA320XB0 digital input is a SIMATIC s7-1200, SM 1226 module with 16 24VDC digital inputs, designed with PROFIsafe and a width of 70 mm, up to PL E (ISO 13849-1)/ up to SIL3 (IEC 61508). It has a temperature rating of 0 to 55 deg C and is suitable for use with SIMATIC S7-1200 systems.

• Two short circuit-proof sensor supplies, each one for eight inputs
• External sensor supply possible
• 200 m L (shielded) and 200 m L (unshielded) cable

Product Highlights

The SIEMENS 6ES72266BA320XB0 digital input module is designed for industrial automation and control applications, offering reliable and safe digital input capabilities.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ES72266BA320XB0
• Country of Origin: China

Technical Specifications

• Brand: Siemens
• Number of Inputs: 16
• Depth: 75 mm
• Width: 70 mm
• Height: 100 mm
• Voltage: 28.8 Volt
• Max Voltage: 28.8 V
• Connection Type: Connector
• Max Operating Temperature: 55 degrees C
• Min Operating Temperature: 0 degrees C
• Temperature Rating: 0 to 55
• Voltage Rating: 24
• Voltage - Supply: 24VDC
• Mounting Type: DIN Rail
• Series: SIMATIC S7-1200
• Termination Style: Screw Terminal
• Packaging: Bulk
• Operating Temperature: 0 C ~ 55 C
• Part Status: Active
• Ingress Protection: IP20
• Type: Input Module
• Approval Agency: CE, FM, UL
• For Use With/Related Products: SIMATIC S7-1200
• Base Product Number: 6ES72266
• Number of Inputs and Type: 16 - Digital
