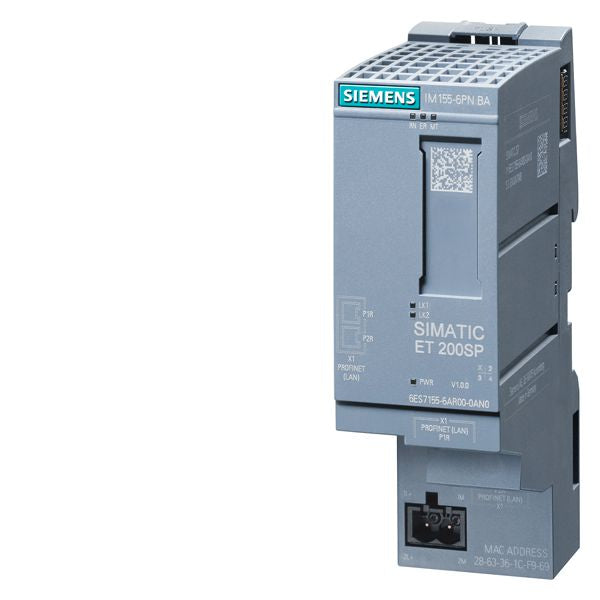

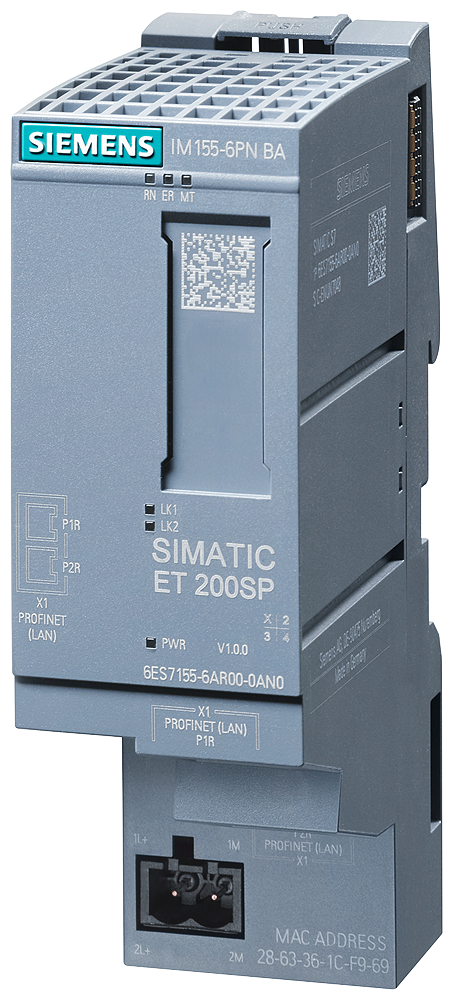

Siemens 6ES71556AR000AN0 Simatic ET 200SP PROFINET Interface Module

Product Description

The SIEMENS 6ES71556AR000AN0 Simatic ET 200SP PROFINET interface module IM 155-6PN Basic, accommodates a maximum of 12 I/O modules and includes 2x integrated RJ45 sockets with a server module. It exchanges IO data with a higher-level control system via PROFINET or PROFIBUS interface. It has a modular configuration with up to 64 modules.

• Configuration control: application-based adaptation of the actual configuration via user software (option handling)
• Time-based IO: time stamping of the signals to the cs
• MSI/MSO: Simultaneous access to I/O data from up to 4 PLCs

Product Highlights

The Simatic ET 200SP is designed for installation in a control cabinet. It provides comprehensive, channel-specific and easy-to-program diagnostics with plain text messages.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ES71556AR000AN0
• Country of Origin: Germany

Technical Specifications

• Brand: SIEMENS
• Manufacturer Part Number: 6ES71556AR000AN0
• Series: ET 200SP Series
• For Use With: SIMATIC ET 200SP Series
• Voltage Rating: 24 VDC
• Communication Rate: 100 Mbps
• Includes: Server Module
• Amperage Rating: 300 mA
• Type: PROFINET
• Power Dissipation: 1.8 W
• Temperature Rating: -30 to 50 deg C Vertical, -30 to 60 deg C Horizontal
• Standard & Approvals: WEEE 2012/19/EU, REACH Article No. 33
• Model: 6ES71556AR000AN0
• Condition: New
• Country of Origin: China
