Siemens 6ES71386BA010BA0 ET 200SP TM P Positional Input Module (Pack 1)

Product Description

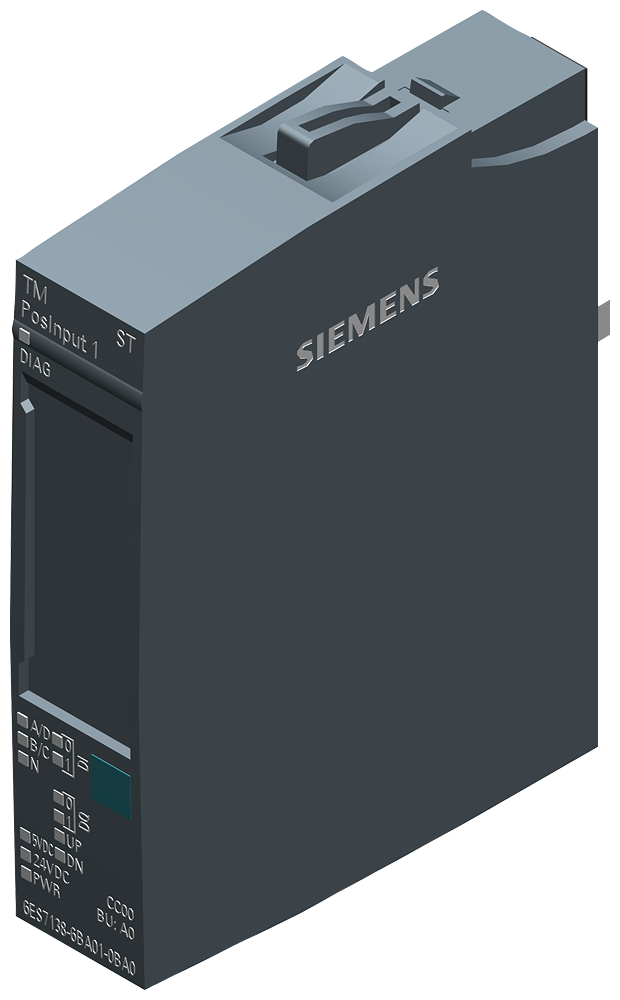

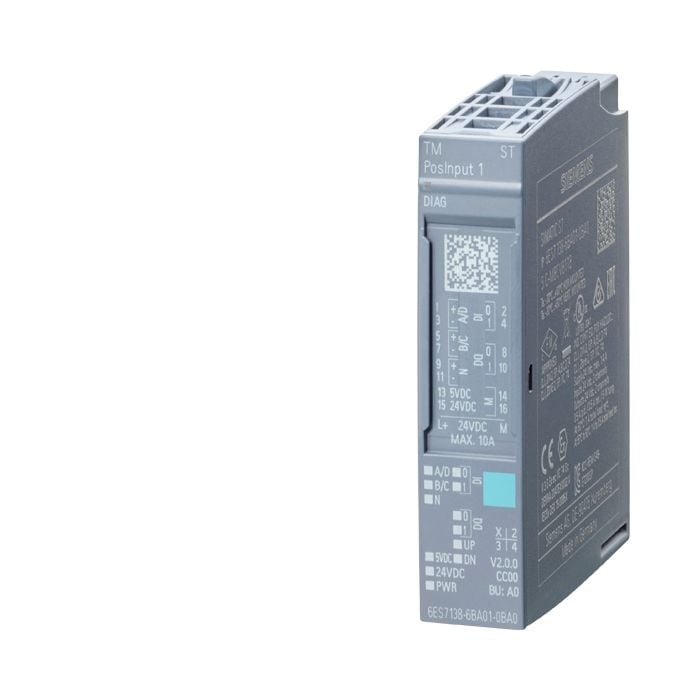

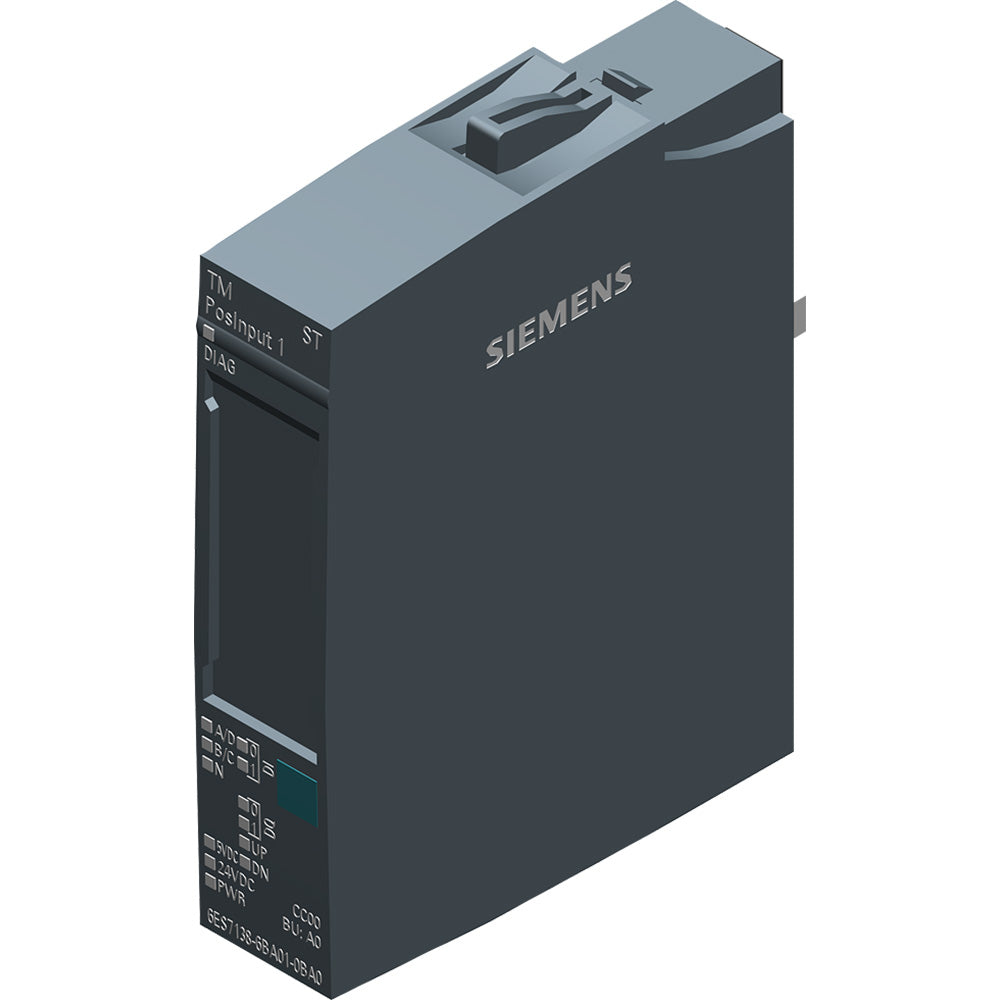

The Siemens 6ES71386BA010BA0 is a SIMATIC ET 200SP TM positional input module with one counter and a position decoder for RS-422 incremental encoders or SSI absolute encoders. It provides two digital inputs and two digital outputs, accepts a 19.2 to 28.8 VDC supply, and includes two solid-state outputs for distributed I/O and encoder interfacing in industrial automation systems.

• Position input module with 1 counter and position decoder; supports RS-422 incremental and SSI absolute encoders
• Provides 2 digital inputs (DI) and 2 digital outputs (DQ); outputs are solid-state
• Supply voltage 19.2 to 28.8 VDC; DIN rail mounting with screw terminal termination; operating temperature -30°C to 60°C

Product Highlights

SIMATIC ET 200SP TM positional input; 1 counter/position decoder; 2 DI and 2 DQ; 19.2–28.8 VDC; DIN rail; solid-state outputs

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ES71386BA010BA0
• Country of Origin: Germany

Technical Specifications

• Brand: SIEMENS
• Manufacturer Part Number: 6ES71386BA010BA0
• Series: SIMATIC ET 200SP
• Module Type: Positional input (counter and position decoder) module
• Function: 1 counter and position decoder
• Encoder Interface: RS-422 incremental encoder or SSI absolute encoder
• Number of Inputs: 2 digital inputs
• Number of Outputs: 2 digital outputs
• Output Type: 2 solid-state outputs
• Signal Range (encoder input): -5 to +5 V DC
• Accuracy: 100 ppm
• Supply Voltage / Input Voltage: 19.2 ~ 28.8 V DC
• Supply Current: 75 mA (typical)
• Mounting Type: DIN Rail
• Termination Style: Screw terminal
• Operating Temperature: -30 °C to 60 °C
• Dimensions: 15 mm W x 58 mm D x 73 mm H
• Weight: 0.111 lb
• Country of Origin: Germany
• RoHS Compliance: ROHS3 Compliant
