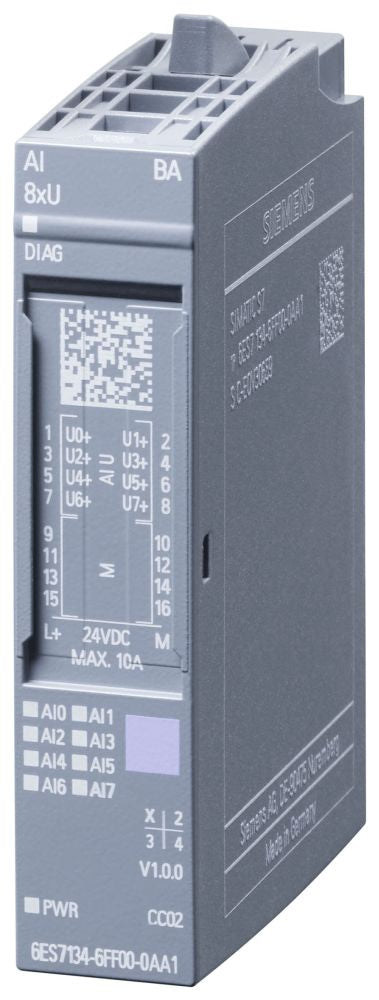

Siemens 6ES71346FF000AA1 Et 200SP Analog Input Module

Product Description

The SIEMENS 6ES71346FF000AA1 is an analog input module designed for use with the SIEMENS ET 200SP distributed I/O system. It captures real-world analog signals from field devices and converts them into digital values for processing by a programmable logic controller (PLC). Analog input modules in this series are installed by industrial automation technicians and control systems integrators working on process control, machine automation, and building automation applications. The module ships as a single unit and weighs 0.086 pounds, making it a compact addition to any ET 200SP station.

This module is intended for use within ET 200SP I/O stations mounted on standard rail assemblies in control cabinets or on-machine enclosures. It is suited for both discrete manufacturing and process environments where analog sensor signals such as temperature, pressure, flow, or level need to be transmitted to a central PLC or distributed control system. Licensed industrial electricians and automation technicians perform installation in accordance with applicable electrical codes and manufacturer guidelines.

Key Features

• Analog input functionality for integration into SIEMENS ET 200SP distributed I/O systems
• Compact form factor measuring 3.031 inches long by 2.756 inches wide by 0.984 inches high
• Lightweight construction at 0.086 pounds for easy handling and rail mounting
• Single-pack quantity for straightforward procurement and replacement
• Compatible with standard ET 200SP station rail and backplane bus architecture

Compatibility

Designed as an OEM-style analog input module for use within SIEMENS ET 200SP distributed I/O stations. Specific system compatibility and firmware requirements should be verified against the SIEMENS ET 200SP system manual prior to installation.

Installation Notes

Installation should be performed by a qualified industrial electrician or automation technician familiar with programmable logic controller systems and distributed I/O architecture. De-energize the ET 200SP station and connected field devices before installing or removing any module. Snap the module onto the appropriate base unit on the mounting rail and ensure the backplane bus connector is fully seated. Follow all applicable NEC requirements and the manufacturer installation documentation for wiring field-side signal inputs.

Technical Specifications

• Module Type: Analog Input
• System: ET 200SP
• Length: 3.031 inches
• Width: 2.756 inches
• Height: 0.984 inches
• Weight: 0.086 pounds
• Pack Quantity: 1
• UPC: 80476620937

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 6ES71346FF000AA1
