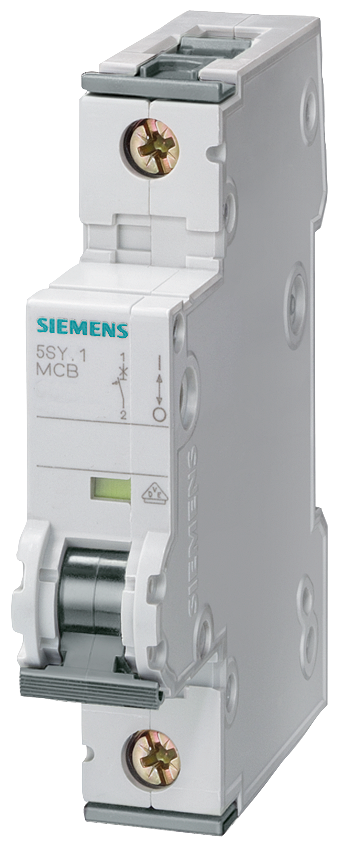

Siemens 5SY6110-6 5Sy6 Mcb 10A 1 Pole Type B

Product Description

The SIEMENS 5SY6110-6 is a UL 1077 supplementary protector miniature circuit breaker designed to provide additional protection. It trips faster than a standard UL 489 circuit breaker, offering enhanced protection for sensitive devices. It can be used in industrial applications for motor control circuits or as a local disconnecting means.

• High rated breaking capacity of up to 14,000 A
• Identical terminals at both sides for an optional infeed from the top or the bottom
• No tool required for mounting or dismounting

Product Highlights

Supplementary protectors are equipped with a delayed overload/time-dependent thermal release and an instantaneous electromagnetic release for high overload and short-circuit currents.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SY6110-6

Technical Specifications

• UNSPSC Code: 39120000
• Actuator Type: Toggle
• Alternate Mfr Part Number: 5SY6110-6
• Brand: SIEMENS
• Current Rating: 10 A
• Manufacturer Part Number: 5SY6110-6
• Mounting Type: DIN Rail Mount
• Number of Poles: 1 Pole
• Series: 5SY Series
• Type: Thermal/Magnetic
• UPC Code: 754554957760
• Amperage: 10 Amp
• Applications: SUPPLEMENTARY PROTECTION
• Connection Type: Identical Wire Screw Connections On Line And Load Side.
• Current: 10 AMP
• Frequency: 50 Hz
• Interrupt Rating: 5 kAIC
• Material: Thermoplastic
• Short Circuit Current: 5 kA
• Standard: CSA,E2186,UL
• TC Connection: Identical wire screw connections on line and load side.
• Voltage: 480 Volt
• Sub Brand: SENTRON
• 12-Digit UPC: 754554957760
• Class: B
• GTiN: 04001869245874
• Product UPC: 75455495776
