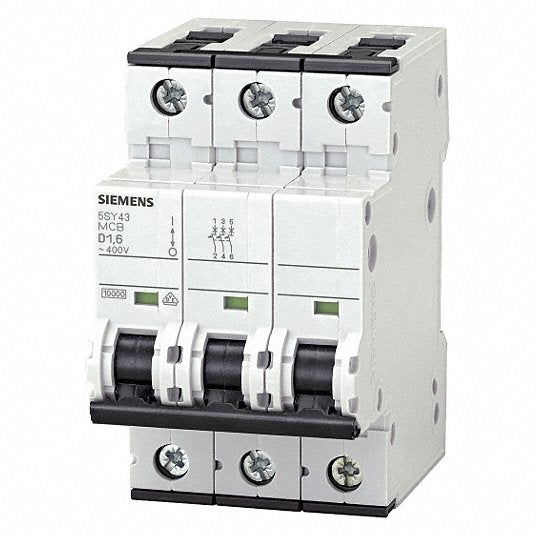

Siemens 5SY4313-7 Circuit Breaker 480V 13A

Product Description

The Siemens 5SY4313-7 Circuit Breaker is a supplementary protector designed for industrial applications. This three-pole breaker trips when the current load exceeds five to ten times the device's rating. It mounts on a 35mm DIN rail and is UL1077 listed, offering protection from overcurrents and short circuits in control panels, lighting, and coils.

• C-curve three-pole supplementary protectors
• Trips instantaneously when current load exceeds five to ten times the rating
• Mounts on standard 35mm DIN rail

Product Highlights

Supplementary circuit breaker protects against overcurrents and short circuits in industrial applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SY4313-7
• Country of Origin: Germany

Technical Specifications

• Manufacturer Part Number: 5SY4313-7
• Manufacturer: SIEMENS
• UNSPSC Code: 39120000
• Number of Poles: 3
• UPC Code: 754554876368
• Current Rating: 13 A
• Brand: SIEMENS
• Amps: 13 A
• AC Voltage Rating: 400V AC
• Max. AIR Rating: 10kA at 400V AC
• Curve Type: C
• DC Voltage Rating: 72V DC
• Phase: 3
• Circuit Breaker Actuator: Toggle
• Circuit Breaker Mounting Style: DIN Rail
• Meets UL Type: UL 1077
• Terminal Connection: Screw Clamp
• Trip Type: Thermal Magnetic
• Application: Industrial
• Min. Wire Size: 14 AWG
• Max. Wire Size: 4 AWG
• Length: 3.54 in
• Width: 2.13 in
• Depth: 3 in
• Standards: CSA 22.2; EN 60898-1; EN 60947-2; GB 10963.1/.2; UL 1077
• Series: 5SY4
• UNSPSC: 39121601
