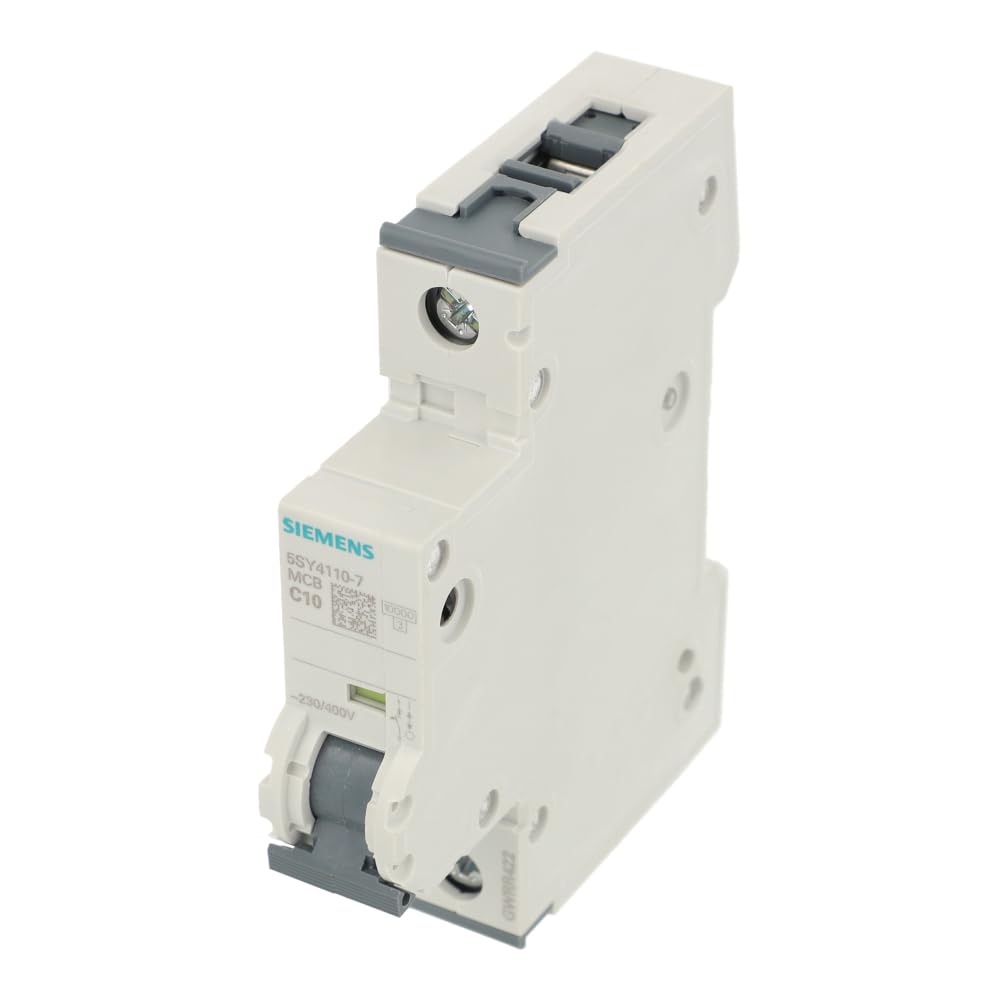

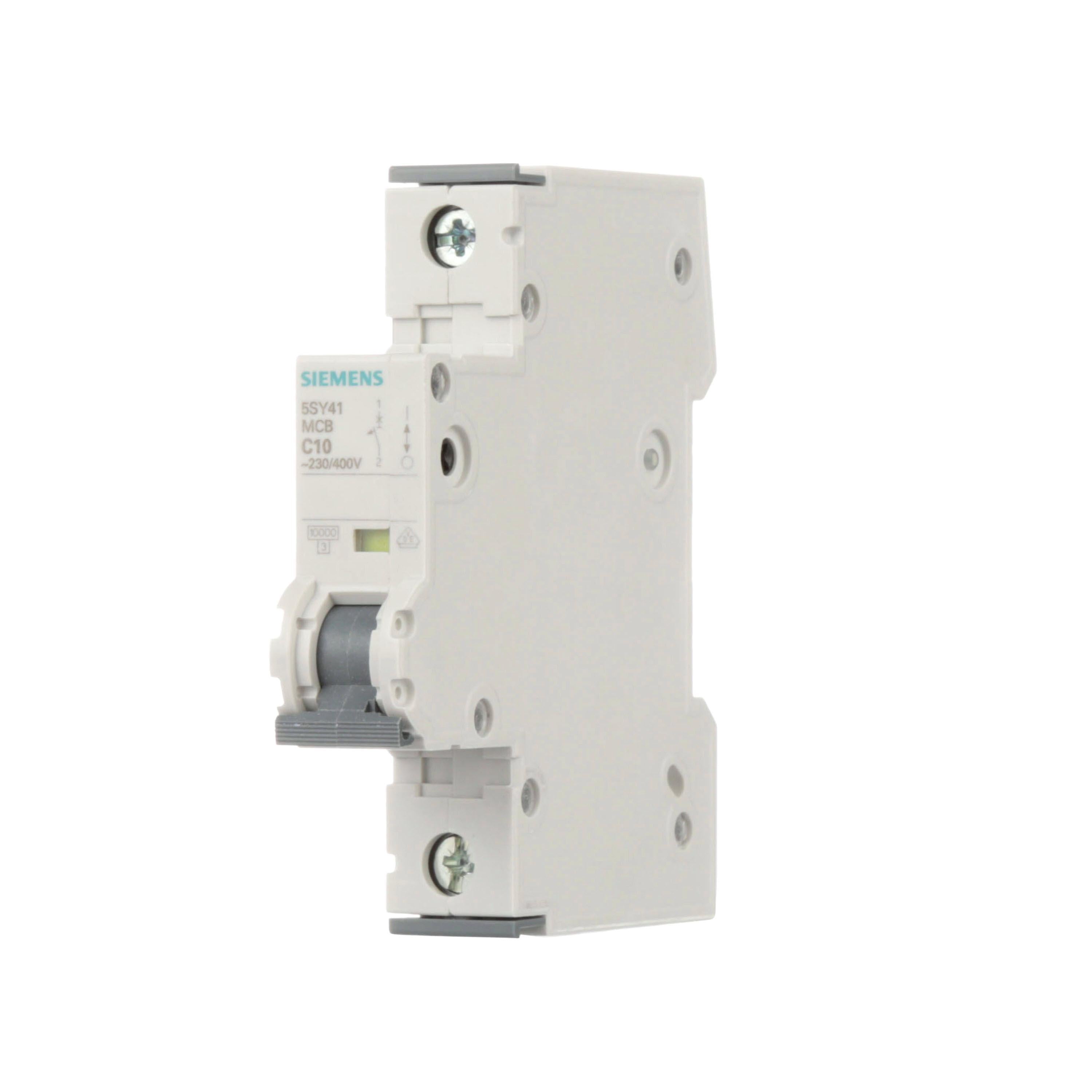

Siemens 5SY4110-7 Supplementary Protector 10A

Product Description

The Siemens 5SY4110-7 is a supplementary protector with a 10A amperage rating. This miniature thermal/magnetic trip protector is designed for supplementary protection applications. It has a 10 kA interrupt rating and is suitable for DIN rail mounting. It is designed to trip faster than standard UL 489 circuit breakers.

• Excellent current limiting and selectivity characteristics
• DIN Rail Mounting
• Thermal/Magnetic Trip

Product Highlights

The Siemens 5SY4110-7 supplementary protector provides additional protection for sensitive devices with a fast trip time and a high breaking capacity.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SY4110-7

Technical Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Model / MPN: 5SY4110-7
• MPN: 5SY4110-7
• Product Type: CIRCUIT_BREAKER
• Connection Type: Line/Load Side/Screw
• Enclosure Type: IP20
• Mounting Type: DIN Rail
• Number Of Poles: 1
• Amperage Rating: 10 A
• Voltage Rating: 480 VAC
• Type: Miniature
• Wire Size: 14 to 4 AWG
• Trip Type: Thermal/Magnetic
• Frequency Rating: 50 Hz
• Trip Range: 11.3 to 14.5 A
• Temperature Rating: -25 to 45 deg C
• Frame: 5SY4
• Interrupt Rating: 10 kA
• Application: Supplementary Protection Applications
• Actuator Type: Toggle
• Current Rating: 10 A
• Manufacturer Part Number: 5SY4110-7
• Series: 5SY Series
• Standard & Approvals: CE Marked|cULus Listed|CSA 22.2 No. 235|IEC/EN 60898|IEC/EN 60947-2|UL 1077 File No. E116386
