Siemens 5SJ4105-7HG40 Mcb 240V 0.5A

Product Description

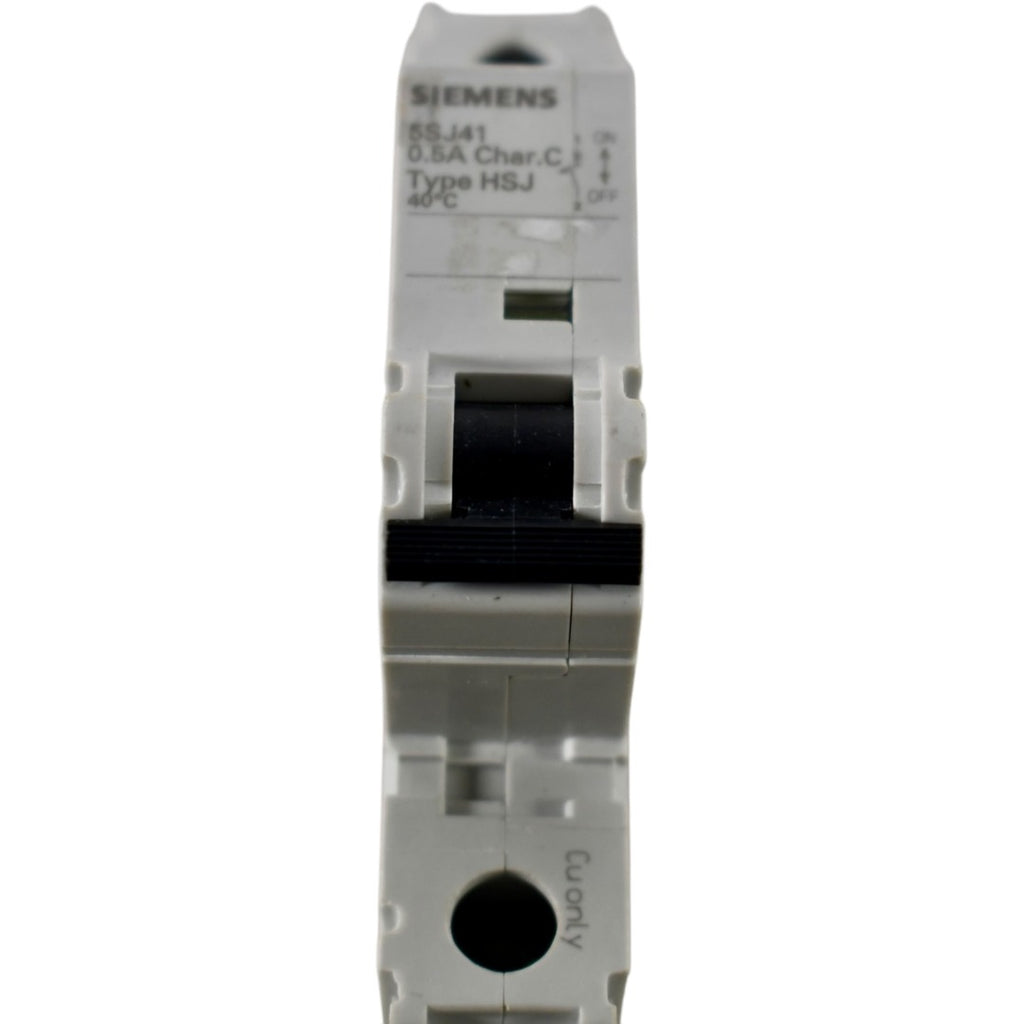

The SIEMENS 5SJ4105-7HG40 is a miniature circuit breaker (MCB). This 1-pole breaker is rated for 240V and 0.5A, with an interrupting rating of 14kA. It is designed for DIN rail mounting and accepts wire sizes from 14 to 4 AWG. It provides circuit protection in both AC and DC applications.

• Rated Voltage: 240V AC, 60V DC
• Current Rating: 0.5A
• Mounting Type: DIN Rail

Product Highlights

The SIEMENS 5SJ4105-7HG40 is a reliable miniature circuit breaker for circuit protection with a 0.5A current rating.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SJ4105-7HG40

Technical Specifications

• Category: Circuit Protection
• Circuit Breakers: Circuit Breakers
• Voltage Rating - AC: 400 V
• Manufacturer: Siemens
• Voltage Rating - DC: 60 V
• Series: 5SJ4
• Actuator Type: Lever
• Number of Poles: 1
• Part Status: Active
• Illumination: None
• Mounting Type: DIN Rail
• Approval Agency: CCC, CE, CSA, EAC, UL, VDE
• Current Rating (Amps): 500mA
• Brand: Siemens
• MPN: 5SJ4105-7HG40
• Reference: 5SJ41057HG40
• Condition: New
• Connection: RAIL
• Amperage: 0.5
• Poles: 1
• Voltage: 240 VAC
• Interrupting Rating: 14 KILOAMPERE
• Wire Size: 14 TO 4 AWG
