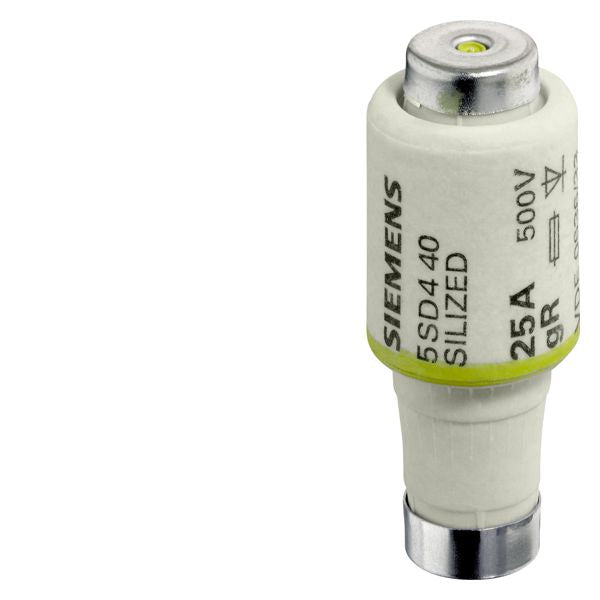

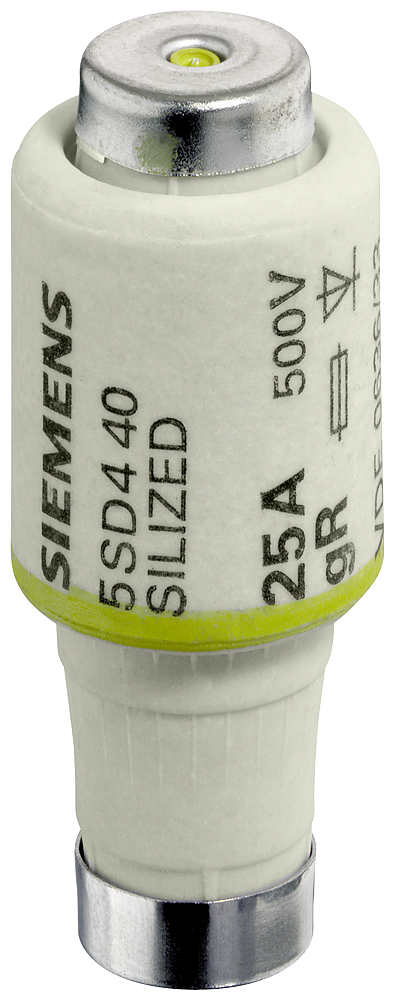

Siemens 5SD440 Silized Fuse Link, 25A, AC

Product Description

The SIEMENS 5SD440 silized fuse link is rated at 25A and designed for AC/DC circuits up to 500V. This quick-acting fuse provides semiconductor protection and is size DII. It is suitable for supplementary protection applications. The fuse link conforms to IEC 60269, VDE 0636, and VDE 0635 standards.

• SILIZED FUSE LINK
• Rated for 25A
• Suitable for AC/DC circuits up to 500V

Product Highlights

The SIEMENS 5SD440 fuse link offers reliable supplementary protection with a 50kA interrupt rating.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 5SD440
• Country of Origin: Slovenia

Technical Specifications

• Type: Fuse Link
• Brand: Siemens
• Width: 0.980 in
• Height: 2.01 Inch
• Length: 4.37 Inch
• Voltage: 500V AC / 500V DC
• Amperage: 25 Amp
• Material: Ceramic
• Standard: IEC 60269,VDE 0636,VDE 0635
• Sub Brand: SENTRON
• Applications: SUPPLEMENTARY PROTECTION
• Interrupt Rating: 50 kAIC
• Country of Origin: Germany
• Short Circuit Current: 50 kA
• Class: Class FE
• Current Rating: 25 A
• Manufacturer Part Number: 5SD440
• Primary Type: Single Use Fuses
• Series: 5S- Series
• Speed: Fast Acting sec
• Termination: Cartridge
• Voltage Rating: 500 V
• Interrupting Rating: 50kA IR
• Amps: 25A
• Diameter: 22.5mm
• Mounting: Screw-Cap (Not Included)
