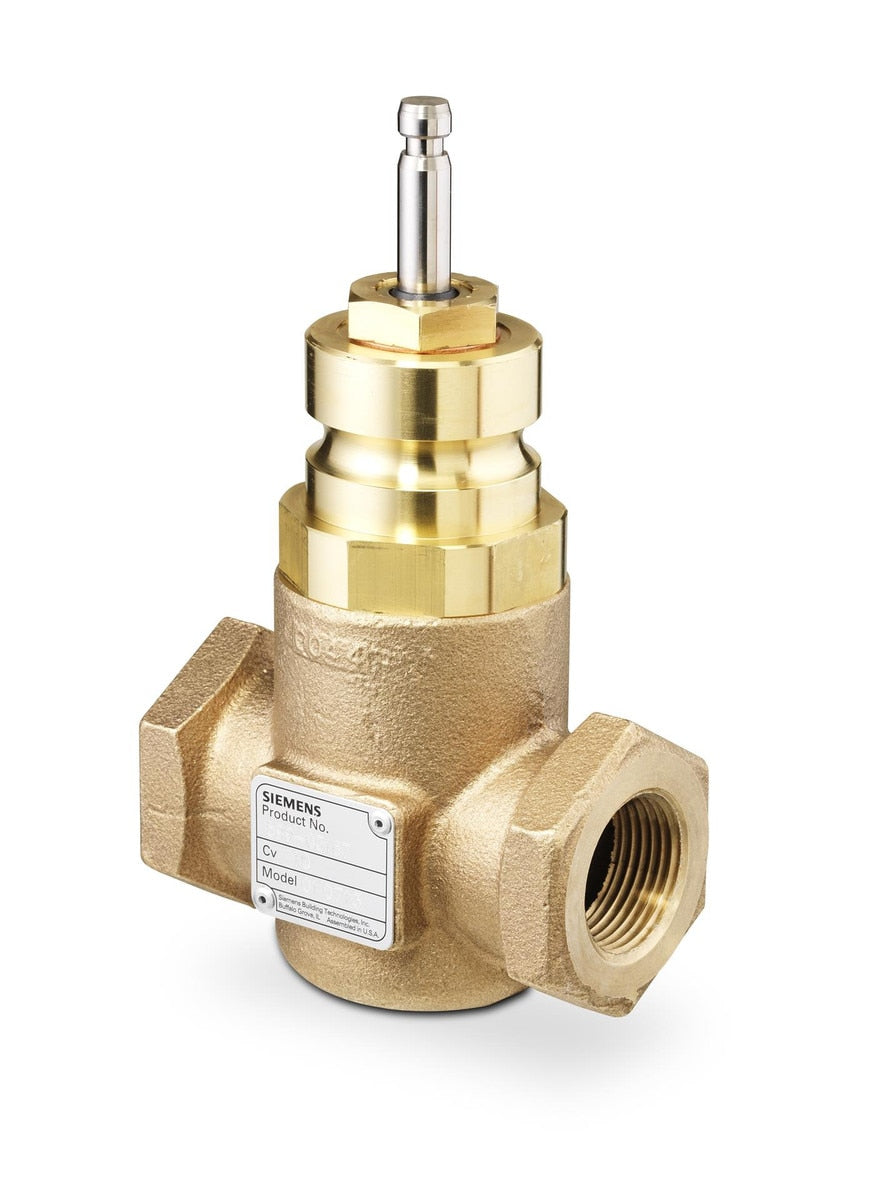

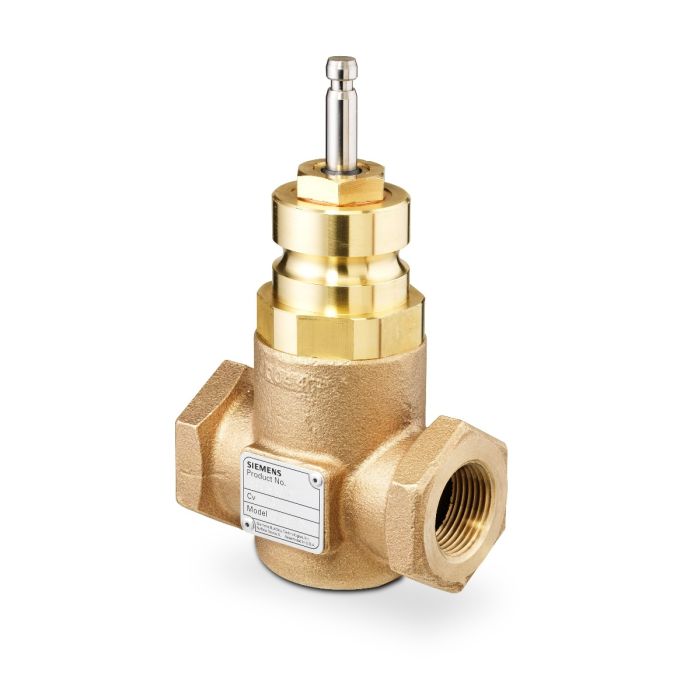

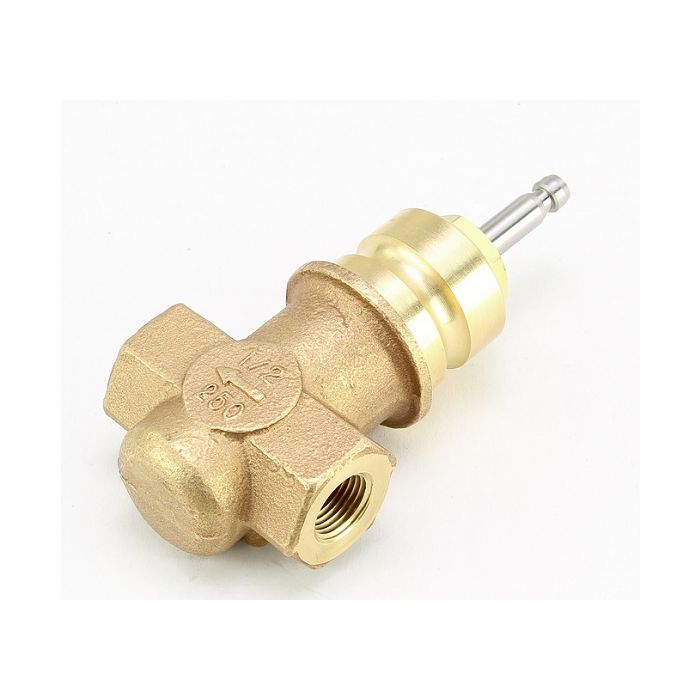

Siemens 599-03058 3/4 inch Normally open Globe valve (3/4 in)

Product Description

Siemens 599-03058 is a 3/4 inch normally open two-way Flowrite globe valve with stainless steel trim and a flow coefficient (Cv) of 6.3 intended for steam and HVAC control applications. It provides linear flow control, is ANSI Class 250 rated with a maximum operating temperature up to 337 F (170 C), and uses 3/4 in NPT female connections. The valve accepts 3/4 in stroke Flowrite pneumatic or electronic actuators and features cartridge-type packing for serviceability.

• 3/4 in two-way normally open globe valve, Cv 6.3, stainless steel trim
• Linear flow characteristic, ANSI Class 250 body rating, maximum operating temperature 337 F (170 C)
• 3/4 in NPT female x female connections, high-temperature cartridge packing, accepts 3/4 in stroke Flowrite actuators

Product Highlights

3/4 in two-way normally open globe valve with 6.3 Cv, stainless steel trim, linear control, ANSI 250, 337 F max, 3/4 in NPT F x F connections

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 599-03058
• Country of Origin: United States

Technical Specifications

• Brand: SIEMENS
• MPN: 599-03058
• Model: 599-03058
• Valve type: Normally open (NO)
• Valve pattern: 2-way
• Size: 3/4 inch (0.75 in)
• Connection: 3/4 in NPT female x female
• Flow coefficient (Cv): 6.3
• Flow characteristic: Linear
• Trim material: Stainless steel
• Packing: High-temperature cartridge-type packing
• Body rating: ANSI Class 250
• Maximum operating temperature: 337 F (170 C)
• Leakage class: ANSI Leakage Class IV (0.01% of Cv)
• Actuator compatibility: Accepts 3/4 in stroke Flowrite pneumatic or electronic actuators
• Service media: Saturated steam, water, glycol solutions up to 50%
• Serviceability: Fully serviceable; cartridge-type packing for easy service
• Item weight: 4 pounds
• Product dimensions: 3.38 x 1.75 x 4 inches
• Country of origin: United States
• GTIN: 04034106335021
• ASIN: B00QW2Q8EM
