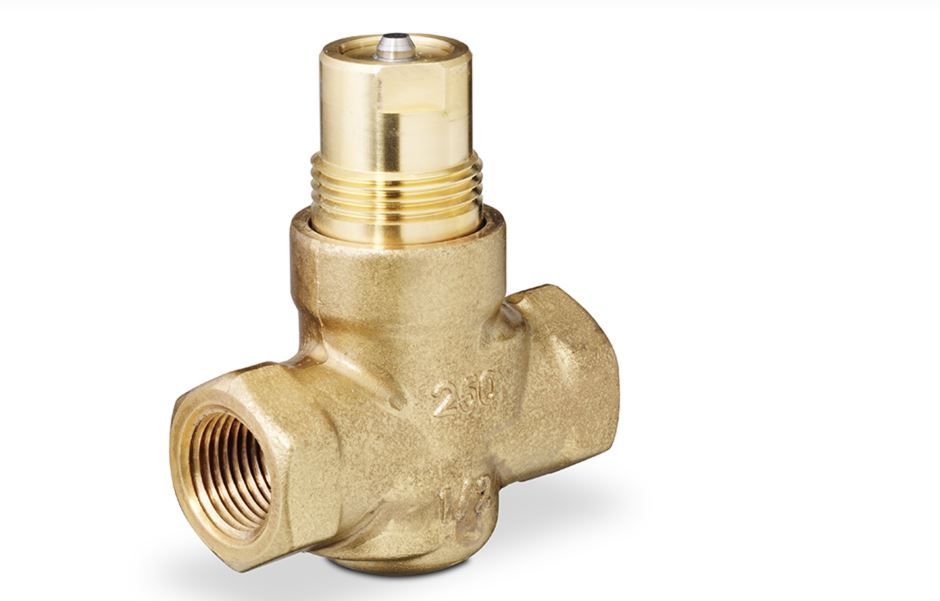

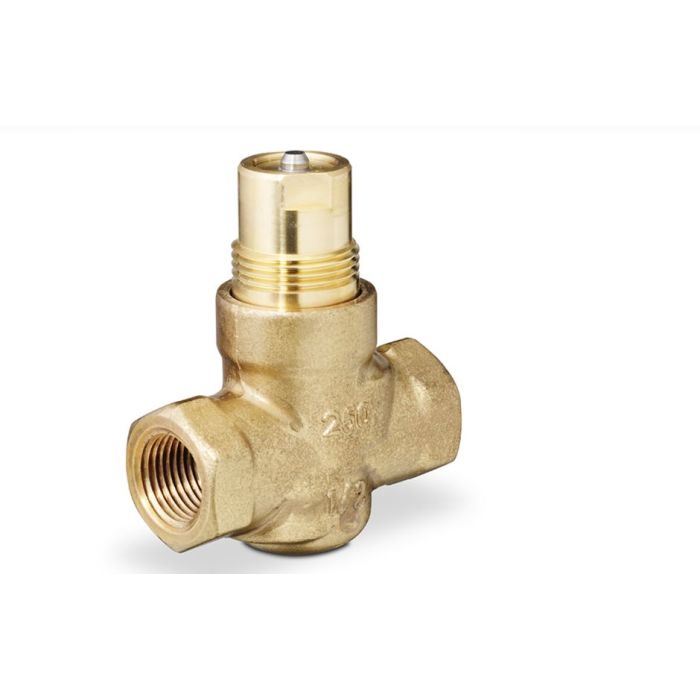

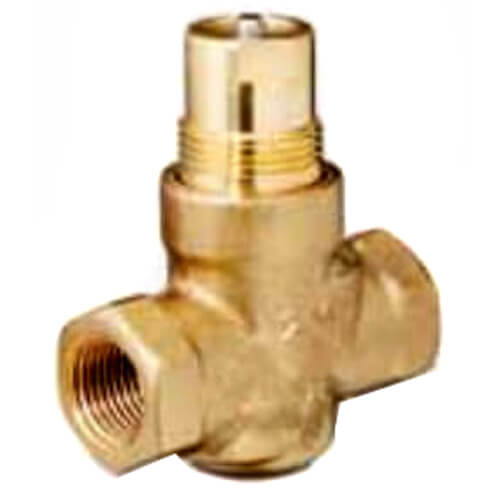

Siemens 599-02051 Globe Valve 1 Cv (1/2 In NPT)

Product Description

Siemens 599-02051 is a 1/2 in, 2-way normally open globe valve body with a flow capacity of 1 Cv and stainless steel trim. It is designed for use with pneumatic or electronic actuators with a 7/32 in stroke and is suitable for water, steam, and glycol solutions up to 50%. The valve has a modified equal percentage characteristic and meets ANSI Class 250 with Class IV leakage rating.

• 1/2 in FNPT female x female connections; 1.0 Cv flow coefficient; modified equal percentage flow characteristic
• Stainless steel trim; ANSI Class 250 body rating; ANSI Leakage Class IV (0.01% of Cv)
• Designed for pneumatic or electronic actuators with 7/32 in (5.5 mm) stroke; minimum actuator force 67 lbf (300 N); close-off pressure 250 PSI

Product Highlights

1/2 in 2-way normally open globe valve body, 1 Cv, stainless steel trim, FNPT connections, ANSI Class 250, compatible with pneumatic and electronic actuators

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 599-02051
• Country of Origin: United States

Technical Specifications

• Brand: Siemens
• MPN: 599-02051
• Product Type: Globe Valve
• Valve Pattern: 2-Way
• Position: Normally Open
• Connection Type: FNPT x FNPT (Female x Female)
• Connection Size: 1/2 in
• Flow Coefficient (Cv): 1.0
• Trim Material: Stainless steel
• Assembly: Valve only
• Close-off Pressure: 250 PSI
• Flow Characteristic: Modified Equal Percentage
• Service Media: Water, steam, glycol solutions up to 50%
• Operating Temperature: 35°F to 250°F (2°C to 120°C)
• ANSI Leakage Class: Class IV (0.01% of Cv)
• Body Rating: ANSI Class 250
• Actuator Stroke Compatibility: 7/32 in (5.5 mm)
• Required Actuator Force: Minimum 67 lbf (300 N)
