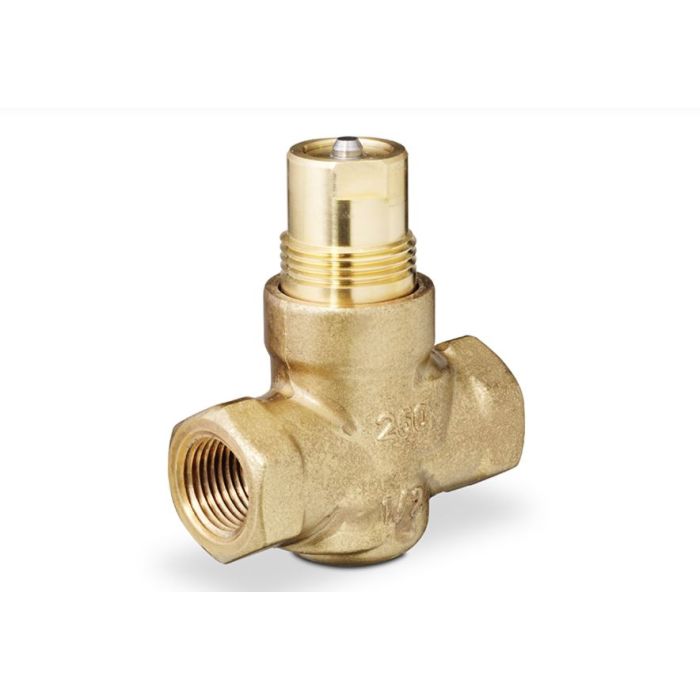

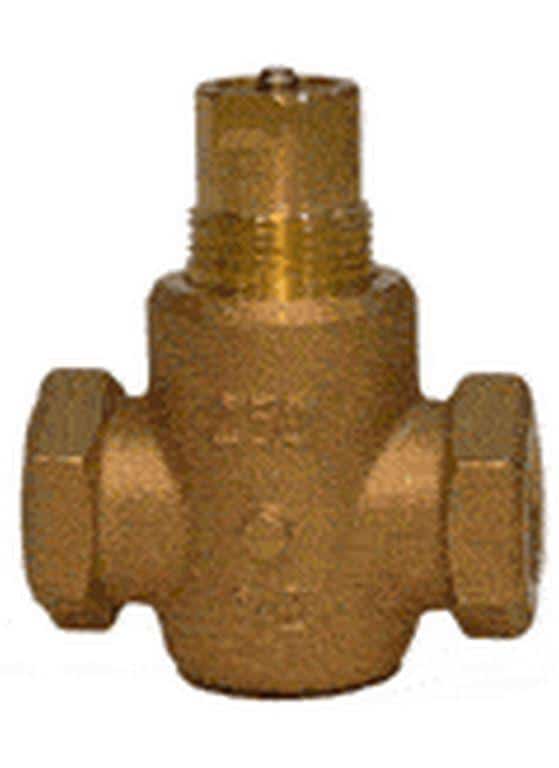

Siemens 599-01114 Globe Valve 10 Cv (1 in NPT)

Product Description

The Siemens 599-01114 is a 2-way globe valve with 1 in. NPT female x female connections and a 10 Cv flow coefficient. It features brass trim with a stainless steel stem, is normally closed, and uses a modified equal percentage flow characteristic. Intended for water and glycol solutions up to 50%, the valve meets ANSI Class 250 body rating and ANSI Leakage Class IV and operates from 35 F to 250 F (2 C to 120 C).

• 1 in. NPT female x female connections; 10 Cv flow coefficient.
• Brass trim with stainless steel stem; normally closed action; modified equal percentage characteristic.
• Suitable for water and glycol solutions up to 50%; ANSI Class 250 body and ANSI Leakage Class IV; operating range 35 F to 250 F (2 C to 120 C).

Product Highlights

2-way globe valve, 10 Cv, 1 in NPT; brass trim; stainless steel stem; normally closed; ANSI Class 250; operating 35 F–250 F

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 599-01114
• Country of Origin: United States

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 599-01114
• Valve Type: Globe valve, 2-way
• Valve Size: 1 in
• Connection: 1 in. NPT female x female
• Cv (Flow Coefficient): 10 Cv
• Trim Material: Brass
• Stem Material: Stainless steel
• Action: Normally closed
• Flow Characteristic: Modified equal percentage
• Service / Media: Water; glycol solutions up to 50%
• Operating Temperature: 35 F to 250 F (2 C to 120 C)
• ANSI Leakage Class: Class IV (0.01% of Cv)
• Body Rating: ANSI Class 250
• Body Material: Bronze
• Max Pressure: 125 psi WOG
• Actuator Compatibility: Works with SFA/P or SSA/P electric actuators and compatible with pneumatic or electronic actuators
