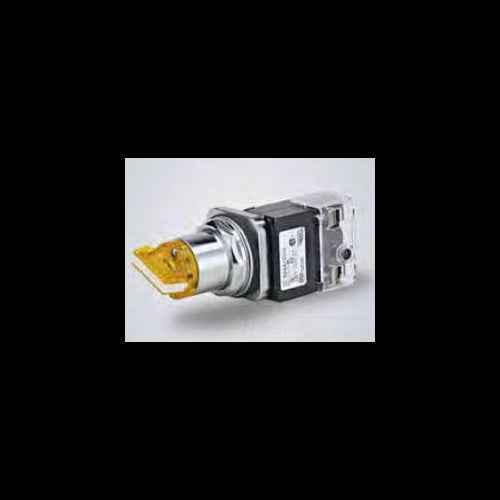

Siemens 52SA7CGN Selector Illuminated Switch Body

Product Description

The Siemens 52SA7CGN is a configurable and illuminated selector switch body. This selector switch is designed for rapid installation and provides a solution that is both aesthetically pleasing and functionally impressive. It requires contact block(s) and an illumination source. The actuator type is selector and it is maintained.

• Illuminated selector switch operator
• Requires contact block(s) and illumination source
• Maintained actuator type

Product Highlights

Configurable switch body selector illuminated with maintained actuator.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52SA7CGN
• Country of Origin: Mexico

Technical Specifications

• Category: Switches, Configurable Switch Components, Configurable Switch Bodies
• Requires: Contact Block(s), Illumination Source
• Manufacturer: Siemens
• Type: Maintained
• Packaging: Box
• Illumination: Illuminated
• Part Status: Active
• Actuator Type: Selector
• Brand: SIEMENS
• Number of Positions: 3
• Unit of Measure: EA
• UPC Code: 783087100480
• Size: 30mm
• NEMA: 1, 3, 3R, 4, 4X, 12, 13
• Operating Cap: Short Lever
• Bezel/Housing: Round Chrome Metal
• Positions: 3 Pos
• Throw: Left-Center-Right
• Contact Mode: Maintained
• Cam Code: C
• Power Source: Transformer
• Voltage: 120V AC
• Lamp Type: Incandescent
• Weight: 1.00 lbs
• Product Type: Push Buttons
• Extended Description: ROUND, KNOB LEVER OPERATION TYPE MAINTAINED 3 POSITION(S) THROW LEFT-CENTER-RIGHT CAM CODE C/B LAMP INPUT 120 V AT 50/60 HZ TRANSFORMER LAMP NUMBER 755 LENS NOT INCLUDED NEMA 12/13 52 MODEL
• Approval: UL, CSA
• Primary brand: Siemens
• Main function: Selector switch (illuminated)
• Product series / family name: Class 52
• Functions: NEMA light block with selector switch/SSw. body
• Design: incandescent lamp
• cont. blk. to purchase separately: transformer input
• Supply voltage (AC): 120Vac
• Rated current: 10A (continuous current; NEMA A600)
• 60A (120Vac; make current; NEMA A600): 6A (120Vac; break current; NEMA A600)
• Light Color: White light (no insert)
• Color: Chrome front ring bezel
• Shape: Round
• Diameter: 30mm installation
• Mounting mode: Flush
• Operating mode: 3-positions Cam C
• Left position maintained (stay-put): Center maintained (stay-put)
• Right position maintained (stay-put): None
• Degree of protection: IP66
• NEMA 1: NEMA 12
• NEMA 13: NEMA 3
• NEMA 3R: NEMA 4
• NEMA 4X: None
• Material: Chrome-plated metal bezel
• Metal body: None
• Ambient air temperature for operation: -35...+70 °C
• Ambient air temperature for storage: -40...+85 °C
• Chemical resistance: Oil tight and corrosion resistant
• Mechanical durability (at no load): 2 000 000 operations
• Order code / Manufacturer SKU: 52SA7CGN
• Manufacturer product status: Commercialized
• Equivalent to: 52SA7CGN
• Compliant with standard(s): CSA
• UL Listed: None
• Location of origin: Mexico
• Angular positions: -45°
• 0°: None
• +45°: None
