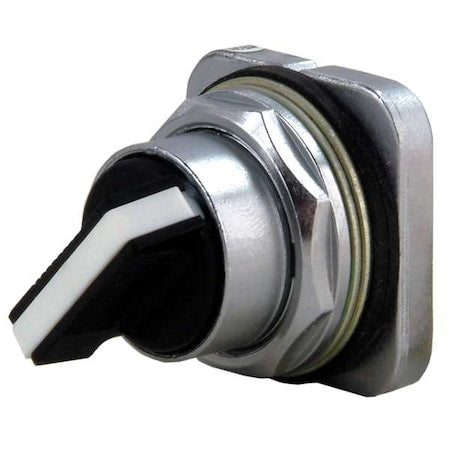

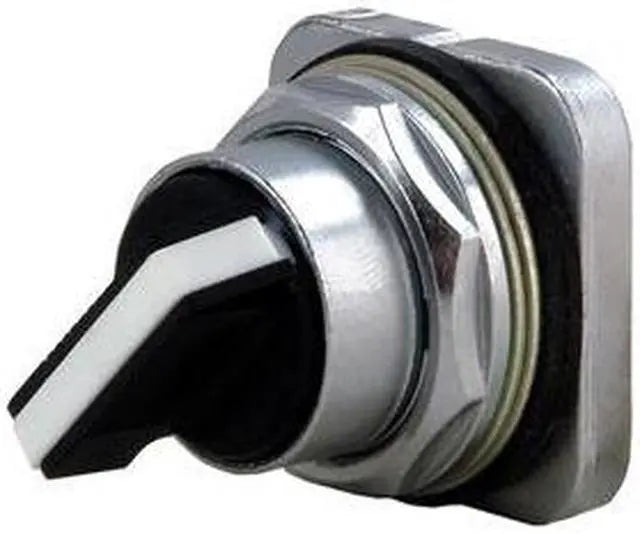

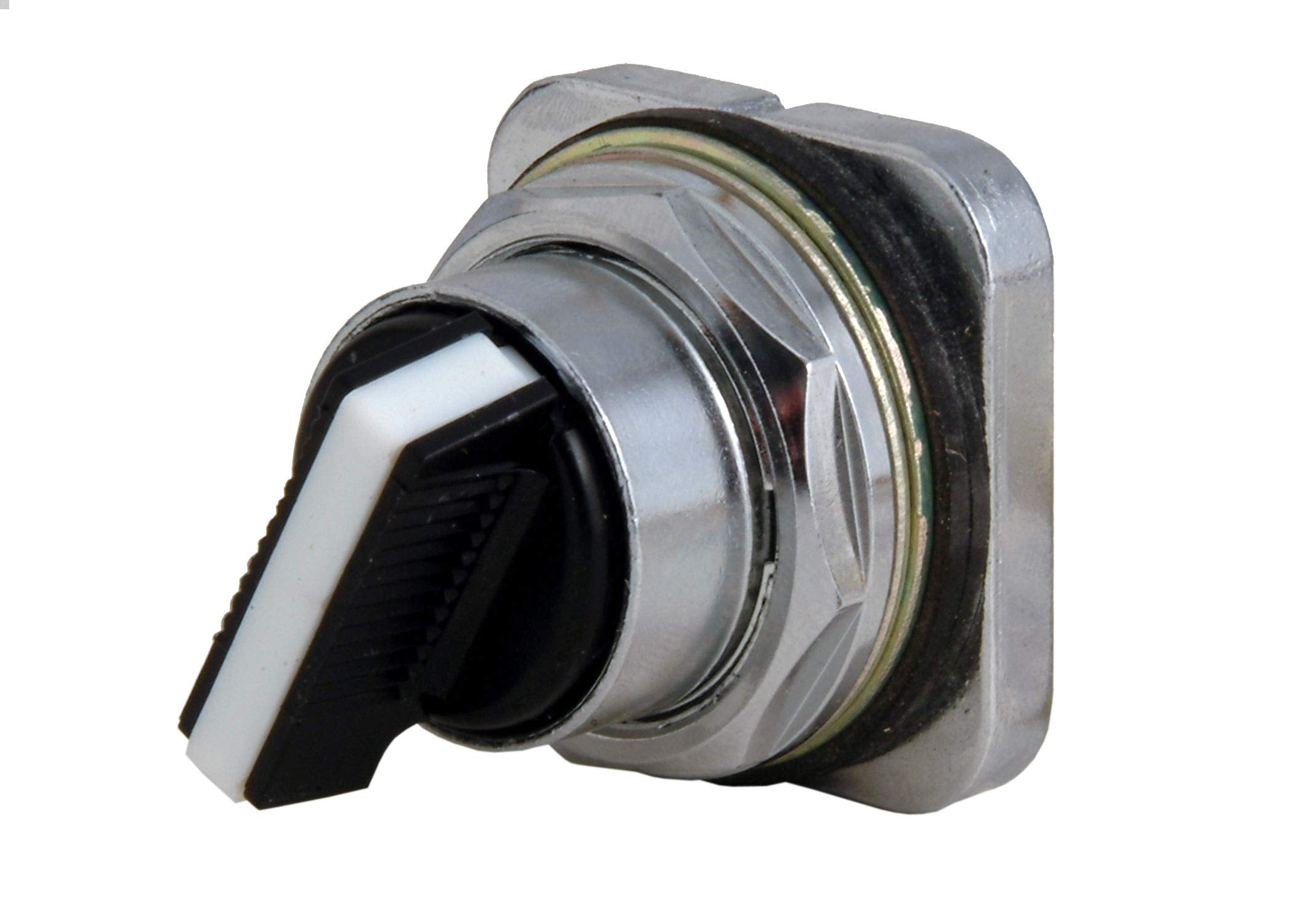

Siemens 52SA2HAB Heavy Duty Selector Switch 4 Positions H Cam Code

Product Description

The Siemens 52SA2HAB heavy-duty selector switch is an operator and short-lever switch for use with a pilot device. It features four positions and maintained operation. Constructed of plastic for corrosion resistance and non-conductivity, it has a chrome enclosure for strength and durability. This selector switch meets NEMA Type 3, 4, 4X, 12, and 13 specifications.

• Four-position operator and short-lever switch with white insert for pilot device
• Plastic for corrosion resistance and non-conductivity with chrome enclosure for strength and durability
• Class 52 water and oil-tight for long life

Product Highlights

This heavy-duty selector switch is UL listed and CSA certified for use in building automation, industrial drives, and other demanding applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52SA2HAB
• Country of Origin: Mexico

Technical Specifications

• Brand: SIEMENS
• Manufacturer: Siemens
• Model / MPN: 52SA2HAB
• Number of Items: 1.0
• Cam: H
• Size: 30 mm
• Action: Maintained / Maintained / Maintained / Maintained
• Position: 4
• IP Rating: IP66
• Standards: CSA Certified, UL Listed, REACH Art. 33
• Key Number: No Key
• Key Removal: No Key
• NEMA Rating: 1, 12, 13, 3, 3R, 4, 4X
• Basic Material: Metal
• Operator Color: Black
• Type of Operator: Lever
• Type: Heavy Duty Oiltight Round Watertight
• Contact Mode: Maintained
• Operator: Short Lever
• Throw: Left Center-Right
• Cam Code: H
• Enclosure: IP66
• Bezel/Housing: Metal
• Temperature: -35 to 70 deg C
• Material: Metal, Polished Chrome
• Insert: White
• Contact block mount: Contact block mount
