Siemens 52SA2CABA2 Selector Switch Maintained Short Lever (30 mm)

SIEMENS
Brand: SIEMENS
SKU: 52SA2CABA2
Availability: Out Of Stock
$234.05
$234.05
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

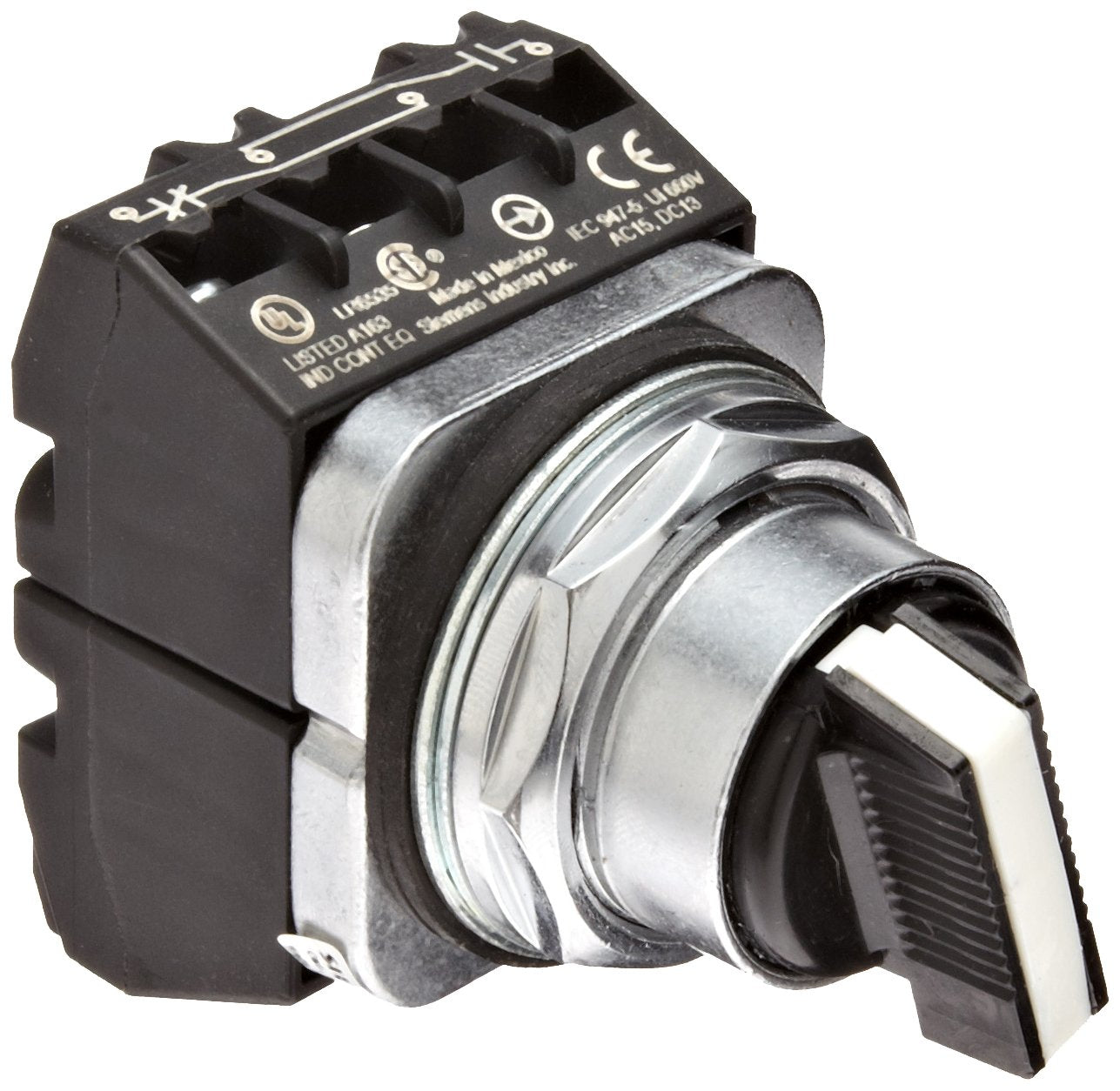

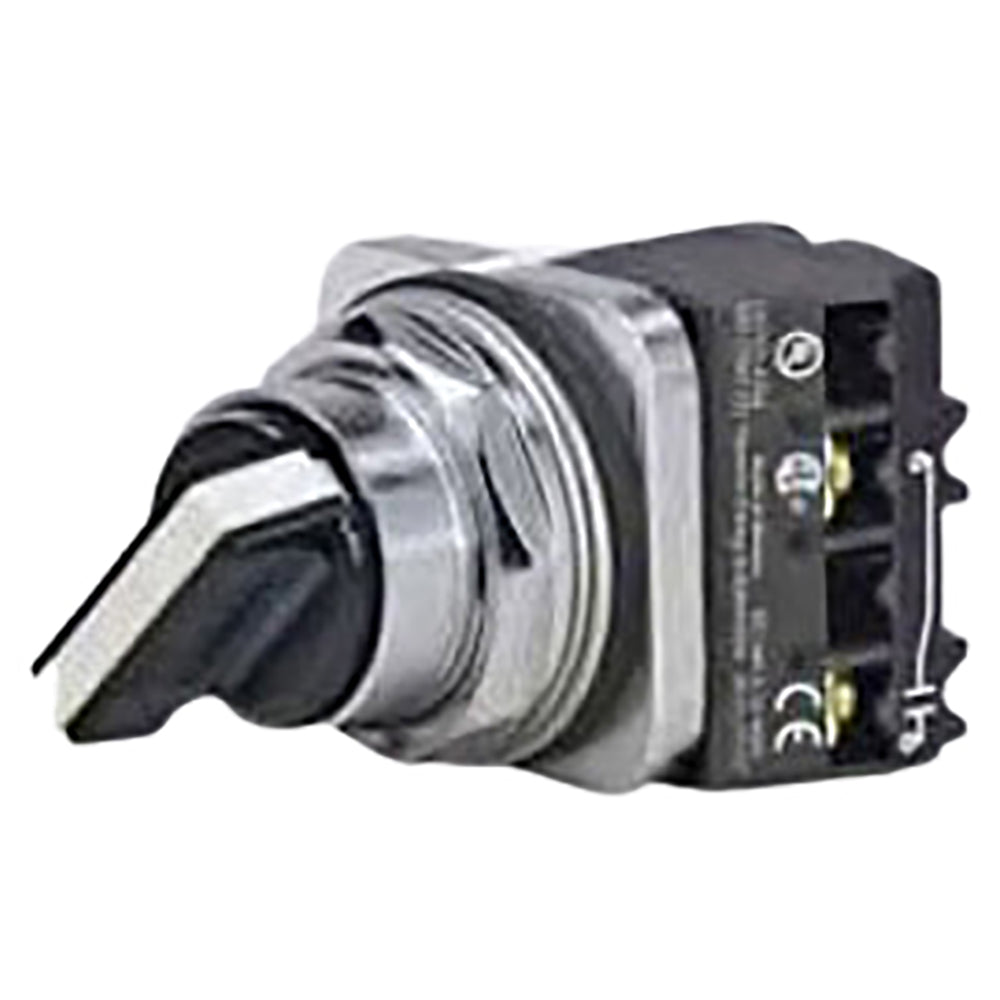

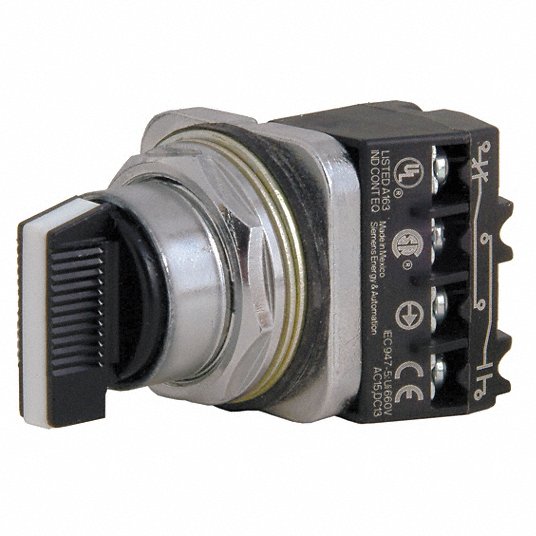

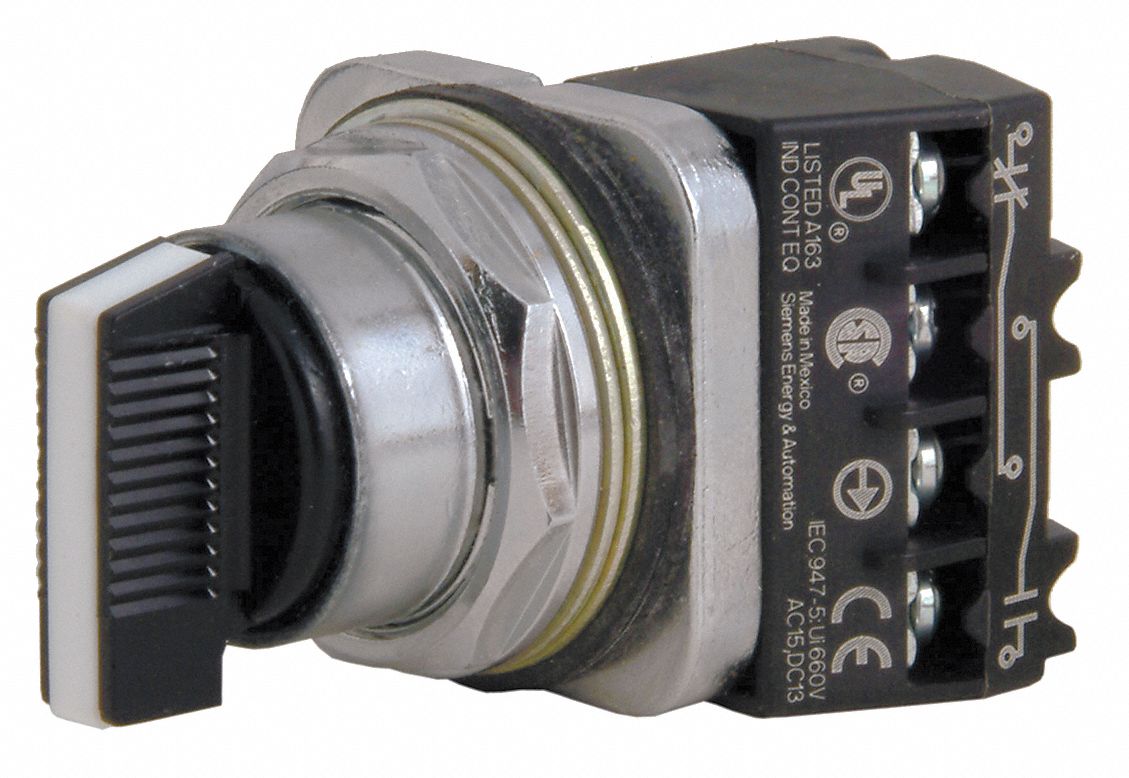

The Siemens 52SA2CABA2 is a metal, panel-mounted selector switch with maintained action and a short lever actuator. It uses a C-cam 3-position mechanism with 1NO-1NC on the left and 1NO-1NC on the right positions, a white insert, and non-illuminated operation. The device is UL listed (File E22655) and rated for use in wet and oily locations.

  • 3-position C-cam selector with maintained operation and short lever actuator
  • Contact configuration: 1NO-1NC left; 1NO-1NC right (total 2NO + 2NC)
  • Panel-mounted metal body with white insert, non-illuminated, screw termination
  • Designed for wet and oily locations when installed with appropriate panel sealing

Product Highlights

Metal 30 mm selector switch, maintained 3-position C-cam, 1NO-1NC left and right, UL File E22655, non-illuminated

Product Information

Standard Information

  • Brand: SIEMENS
  • Manufacturer Part Number: 52SA2CABA2
  • Country of Origin: Mexico
Technical Specifications
Brand
Siemens
Manufacturer
Siemens
Manufacturer Part Number (MPN)
52SA2CABA2
Catalog Number
52SA2CABA2
Mounting Type
Panel mount
Actuator Type
Short lever
Size
30 millimeter
Operation Type
Maintained
Number of Positions
3
Cam Type
C cam
Contact Configuration
1NO-1NC left; 1NO-1NC right (total 2NO + 2NC)
Contact Rating
600 V AC (see notes for current/rating contexts)
Termination Type
Screw terminals
Illumination
Non-illuminated
Insert Color
White
Body Material
Metal
Bezel Material
Metal / zinc (chrome plated finish reported)
Actuator Material
Plastic
Enclosure / IP Rating
IP20 (typical for switch alone); some assemblies/versions reported as IP66 (panel-sealed variants) � see notes
Protection
Water- and oil-tight when installed in appropriate panel gasket/assembly (per product literature)
Approvals / Certifications
UL listed (File E22655); CSA listings reported per source
Operating Temperature
-35 to +70 C
Finish
Chrome plated (bezel/body finish per source)
