Siemens 52SA2AABK1 Sel Switch, Mntd, Sht

Product Description

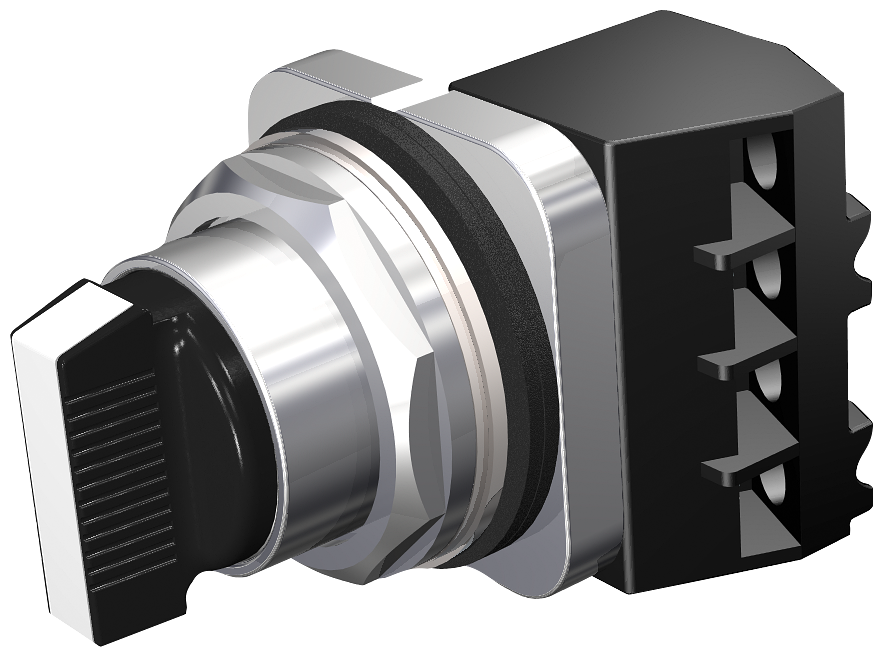

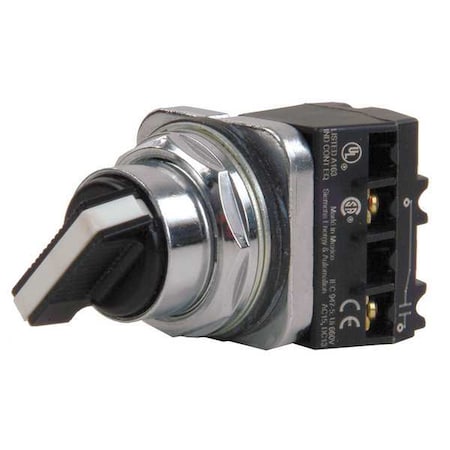

The Siemens 52SA2AABK1 selector switch is a metal maintained switch with a short lever. It features 1NO left and right positions and an A cam 2 position. This complete device includes a white insert and is non-illuminated. It is UL File E22655 in Vol. 6 (7) Sec. 13 (2).

• Metal Maintained
• Short Lever
• 1NO left, right position

Product Highlights

This Siemens selector switch is ideal for various control applications requiring a maintained switch with a clear indication of position.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52SA2AABK1
• Country of Origin: Mexico

Technical Specifications

• Brand: Siemens
• Voltage: 600 Volt
• Amperage: 10 Amp
• Number of Poles: 1 Pole
• Cam: A
• Item: Non-Illuminated Selector Switch
• Size: 30 mm
• Action: Maintained / Maintained
• Position: 2
• IP Rating: IP20/IP66
• Standards: CSA Certified File No. LR6535, UL File E22655 in Vol. 6 (7) Sec. 13 (2), RoHS Compliant
• Bezel Color: Black
• Key Removal: No Key
• NEMA Rating: 1, 12, 13, 3, 3R, 4, 4X
• Contact Form: 1NO
• Basic Material: Metal
• Bezel Material: Zinc Die Cast
• Contact Rating: 60 A/12 A at 110/500 VAC
• Type of Operator: Short Lever
• Operator Head Material: Plastic
• Switch Operation @ Position C: No Third Position
• Switch Operation @ Position D: No Fourth Position
• NEMA Contact Rating Designation: A600
• Part Number #: 52SA2AABK1
• SKU #: 14023
• Bezel/Housing: Metal
• Cam Code: A
• Contact Configuration: 1NC
• Throw: Left to Right
• Type: Heavy Duty Oiltight/Watertight
• UNSPSC: 39122214
• Manufacturer Part Number: 52SA2AABK1
• Numeric ID: 3882618
• UPC Code: 783087156432
• Actuator: Rotary
• Alternate Catalog Number: US2:52SA2AABK1
• Enclosure Type: NEMA 1/3/3R/4/4X/12/13/IP66/20
• Environmental Conditions: -40 to 85 deg C Storage Temperature
• Buy American Compliant: C
• Finish: Polished Chrome
• Material: Metal
