Siemens 52PT6D9AB ptt pl/ill pb,amb,fv, 30mm

Product Description

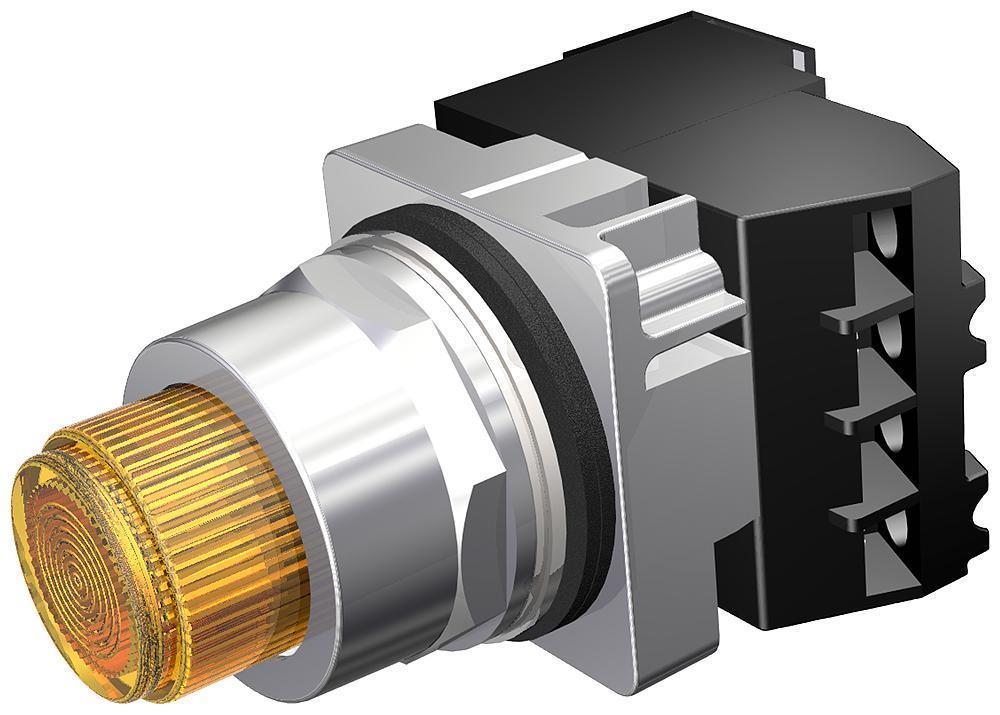

The SIEMENS 52PT6D9AB is a 30mm chrome finish heavy-duty, watertight/oiltight complete metal unit PTT / illuminated pushbutton. It features a full voltage, 24V AC/DC LED lamp with an extended button and plastic lens. The unit has a 2-position momentary function with 1 N.O. - 1 N.C. heavy-duty contacts, A600/P.

• 30mm command/52, chrome finish heavy duty,watertight/oiltight complete metal unit
• Full voltage, 24V AC/DC LED lamp
• 2 position momentary with 1 N.O. - 1 N.C. heavy duty contacts, A600/P

Product Highlights

This illuminated push button is designed for demanding industrial applications, offering oil/dust-tight performance and meeting Type 3, 4, 4X, 12, and 13 specifications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52PT6D9AB
• Country of Origin: Mexico

Technical Specifications

• Mounting Hole Size: 30 mm
• Brand: Siemens
• Manufacturer Part Number: 52PT6D9AB
• Operation: Push
• Series: 52PT Series
• Standards: UL CSA
• Termination: Screw terminal
• Type: Push Button
• Bezel: Chrome plated octagonal nut
• UPC Code: 662643314892
• Category: Switches
• Mfr: Siemens
• Part Status: Active
• Mounting Type: Panel Mount, Front
• Circuit: DPST-NO/NC
• Switch Function: On-Mom, Off-Mom
• Voltage Rating - AC: 110 V
• Actuator Type: Round, Button
• Color - Actuator/Cap: -
• Illumination Type, Color: LED, Yellow
• Illumination Voltage (Nominal): 24 VAC/DC
• Ingress Protection: IP66 - Dust Tight, Water Resistant
• Panel Cutout Dimensions: Circular - 30.00mm Dia
• Operating Temperature: -35°C ~ 70°C
• Contact Configuration: 1NC-1NO
• Contact Mode: Momentary
• Operator: Push Button
• Positions: 2
• Lamp: LED
• Bezel/Housing: Die Cast Zinc
• Terminal: Pressure Plate
• Enclosure: NEMA 1/3/3R/4/4X/12/13
• Material: Metal/Plastic
• Finish: Polished Chrome
• UNSPSC: 39122216
• Supply voltage (AC): 24Vac-28Vac
• Supply voltage (DC): 24Vdc-28Vdc
• Shape: Round
• Diameter: 30mm installation
• Connection type: Screw-clamp connections
• Mounting mode: Flush
• Contacts type: 1NO+1NC contacts
• Degree of protection: IP66 NEMA 1 NEMA 12 NEMA 13 NEMA 3 NEMA 3R NEMA 4 NEMA 4X
• Coating material: Gold plated contacts
• Ambient air temperature for operation: -35...+70 °C
• Ambient air temperature for storage: -40...+85 °C
• Chemical resistance: Oil tight and corrosion resistant
• Mechanical durability (at no load): 300 000 operations
• Order code / Manufacturer SKU: 52PT6D9AB
• Manufacturer product status: Commercialized
• Equivalent to: 52PT6D9AB
