Siemens 52PL4G2 Pilot Light 120V 30 mm

Product Description

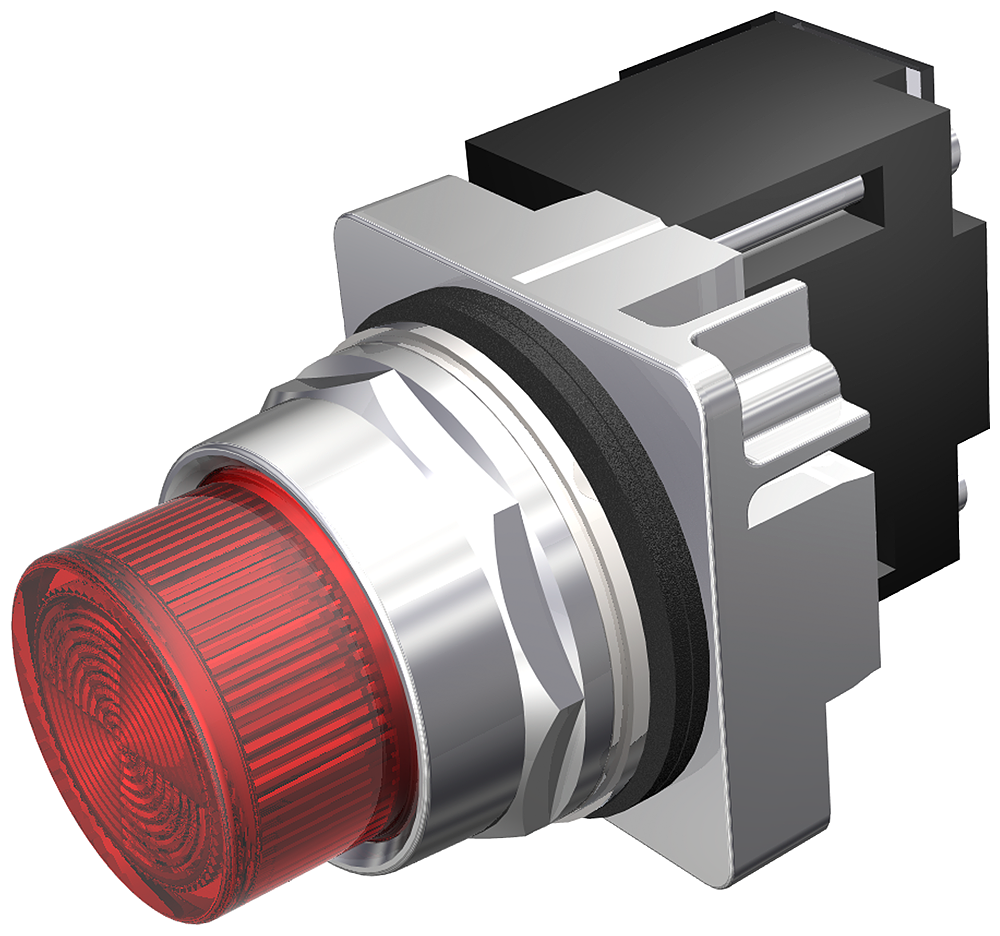

The SIEMENS 52PL4G2 pilot light is an illuminated, heavy-duty indicator designed for industrial applications. It features a 120V AC transformer for the BA9s incandescent lamp and a 30 mm round plastic lens. The metal body and bezel offer a watertight, oiltight, and corrosion-resistant construction with a chrome-plated finish.

• Heavy Duty Rated NEMA A600/P600 Contacts
• Watertight, Oiltight, Corrosion Resistant construction
• Suitable for industrial applications

Product Highlights

This pilot light provides reliable indication in demanding environments, withstanding temperatures from -35 to 70 degrees Celsius during operation.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52PL4G2
• Country of Origin: MEX

Technical Specifications

• Type: Heavy Duty Illuminated Transformer
• Lamp Input Type: 120 Volt AC Transformer
• Lamp Type: BA9s Incandescent
• Lens Style/Size: Round
• Lens Material: Plastic
• Body Material: Metal
• Bezel Material: Metal
• Enclosure: NEMA 1/3/3R/4/4X/12/13, IP20/66
• Size: 30 Millimeter
• Approval: UL, CSA
• Height: 3.49 Inch
• Surge Voltage Rating: 4 Kilovolt
• Ambient Temperature Rating: -35 to 70 Deg C (Operation), -40 to 80 Deg C (Storage)
• Mounting Type: Front
• Constructional Feature: Watertight, Oiltight, Corrosion Resistant
• Finish: Chrome Plated
• Application: Industrial
• Brand: Siemens
• Part Number #: 52PL4G2
• Voltage: 120 Volt
• Sub Brand: Command52
• Series: 52PL Series
• Supply Voltage: 120 VAC
• Termination: screw
• Standards: UL CSA
