Siemens 52C156S Selector Switch Control Station

Product Description

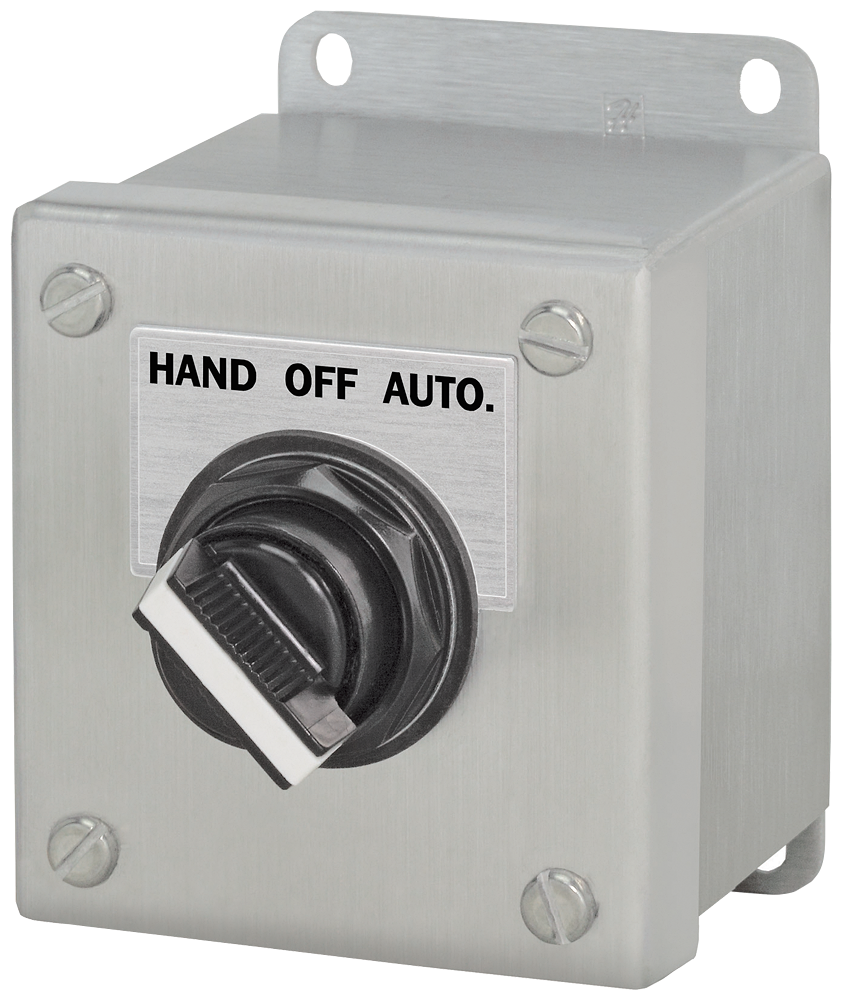

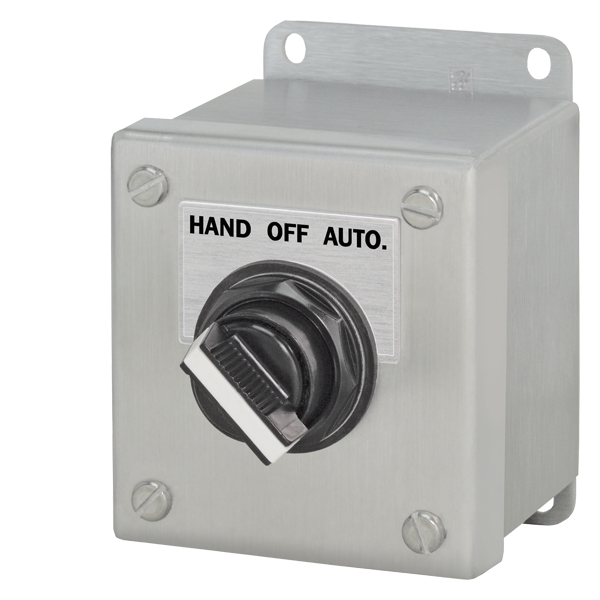

The Siemens 52C156S selector switch control station is a heavy-duty Command 52 series device. Rated at 600 VAC and 5 A, it features one operator and a 1NC-1NO contact configuration with maintained contact mode. The station has a short lever operator and HAND-OFF-AUTO legend, with screw connections and a NEMA 4/4X rating. It is designed for wall mounting.

• Class 52 pushbutton station corrosion resistant
• 30 mm enclosure type NEMA 4X 304 stainless steel with 1 command point
• Short lever 3 position, maintained, C-CAM with 1 NO-1 NC

Product Highlights

This corrosion-resistant control station is ideal for controlling the starting, stopping, reversing, or speed of applicable motors.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52C156S
• Country of Origin: USA

Technical Specifications

• Brand: Siemens
• Part Number #: 52C156S
• Contact Rating: 5 A at 600 V AC
• UNSPSC: 39121565
• Enclosure: NEMA 4X
• NEMA: 4X
• Size: 30 MM Mount Hole Diameter
• Type: Class 52, Heavy Duty, 3 Position Selector Switch
• Sub Brand: Command52
• Actuator Color: Black
• Actuator Type: Knob
• Contact Form: 1 NC + 1 NO
• Electrical Rating: 7200 VA(Make), 720 VA(Break), 10 continuous amps, 50/60 Hz
• Manufacturer Part Number: 52C156S
• Material: Stainless Steel
• Mounting Type: Surface Mount
• Number of Positions: 3
• Operation: Maintained
• Primary Type: Push Button Station
• Series: 52C Series
• Standards: CSA UL NEMA 4X
