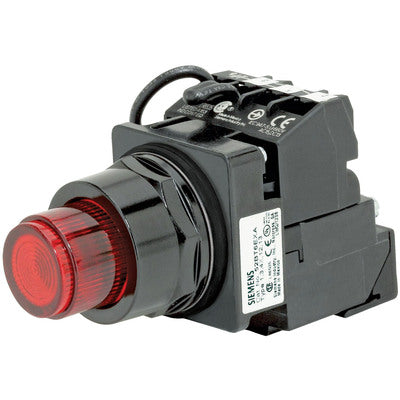

Siemens 52BT6M2A Pushbutton Extended Operating Cap Red Plastic LED Module Power Source NEMA 4X

Product Description

The SIEMENS 52BT6M2A is an illuminated pushbutton with a 30.0 mm size and NEMA 4X rating. It features an extended operating cap, red color, and plastic bezel/housing. The power source is an LED module with a voltage of 120V AC. It is corrosion resistant and part of the Class 52 series.

• Corrosion Resistant
• Extended Operating Cap
• LED Module Power Source

Product Highlights

The SIEMENS 52BT6M2A is an illuminated pushbutton with an extended operating cap, LED module, and NEMA 4X rating.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52BT6M2A
• Country of Origin: Mexico

Technical Specifications

• Type: Illuminated Pushbutton/Press-Test Light Operator
• Size: 30mm
• NEMA: 4X
• Operating Cap: Extended
• Color: Red
• Bezel/Housing: Plastic
• Power Source: LED Module
• Voltage: 120V AC
• Lamp Type: LED
• UNSPSC Code: 39120000
• Brand: SIEMENS
• Manufacturer Part Number: 52BT6M2A
• Unit of Measure: EA
• UPC Code: 662643874693
• Primary brand: Siemens
• Main function: Pilot light
• Product series / family name: Class 52
• Functions: Modular factory-assembled NEMA pilot indicator light
• Design: integrated LED light module grooved cap (concentric rings) push-to-test function extended full-voltage input heavy-duty
• Supply voltage (AC): 120Vac
• Light Color: Red light
• Shape: Round
• Diameter: 30mm installation
• Connection type: Screw-clamp connections
• Mounting mode: Flush
• Contacts type: 1NO+1NC contacts
• Degree of protection: IP66 NEMA 1 NEMA 12 NEMA 13 NEMA 3 NEMA 3R NEMA 4 NEMA 4X
• Material: Metal bezel with rugged corrosion resistant BlackMax epoxy coating Plastic cap Metal body
• Coating material: Gold plated contacts
• Ambient air temperature for operation: -35...+70 °C
• Ambient air temperature for storage: -40...+85 °C
• Chemical resistance: Oil tight and corrosion resistant
• Mechanical durability (at no load): 300 000 operations
• Order code / Manufacturer SKU: 52BT6M2A
• Manufacturer product status: Phasing out
• Equivalent to: 52BT6M2A
• Compliant with standard(s): CSA UL Listed
• Location of origin: Mexico
