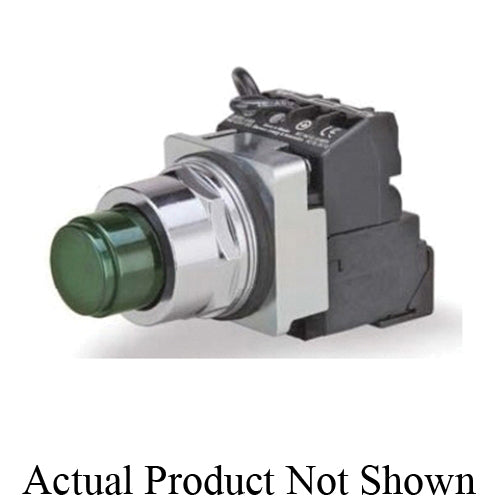

Siemens 52bt6l9a Illuminated Pushbutton 30mm Led Amber

Product Description

The SIEMENS 52bt6l9a is a 30 mm illuminated pushbutton unit designed for industrial control panel applications. It features an extended button actuator with a plastic lens and a corrosion-resistant light module that supports push-to-test lamp verification. The contact configuration is 1NO-1NC momentary with two positions, and illumination is provided by an LED lamp in amber. The housing is metal with a BlackMax epoxy-coated finish. It is rated for harsh environments with NEMA 1, 3, 3R, 4, 4X, 12, and 13 enclosure types as well as IP20 and IP66 ingress protection. Electricians and industrial controls technicians are the primary installers.

This pushbutton is suited for use on machine tool panels, motor control centers, and industrial automation equipment where a ruggedized, illuminated operator interface is required. The NEMA 4X and IP66 ratings make it appropriate for washdown environments and outdoor enclosures. The amber LED coloring is commonly used for caution or status indication in control circuits. Its corrosion-resistant construction supports installations in chemical processing, food processing, and other demanding industrial settings.

Key Features

• 30 mm mounting footprint with extended button actuator and plastic lens
• Amber LED illumination with push-to-test corrosion-resistant light module
• 1NO-1NC momentary contact configuration rated NEMA A600/P600
• Positively driven contacts with bifurcated movable contacts for reliable circuit continuity
• Touchsafe terminals reduce accidental contact risk during wiring
• NEMA 1/3/3R/4/4X/12/13 and IP20/IP66 rated — no boots required for Type 4
• Metal body with BlackMax epoxy-coated finish and attractive chrome plating

Compatibility

Designed as an OEM-style replacement or new-install illuminated pushbutton for 30 mm industrial control panel cutouts in NEMA-rated enclosures.

Installation Notes

Installation is typically performed by a licensed electrician or qualified industrial controls technician. De-energize and lock out the control panel per OSHA LOTO procedures before installing or replacing the pushbutton. Octagonal mounting nuts are included for panel mounting; use appropriate torque as specified by the panel manufacturer. Wiring should comply with the NEC and any applicable local codes for control circuit conductors.

Technical Specifications

• Mounting Size: 30 mm
• Contact Configuration: 1NO-1NC
• Contact Action: Momentary
• Number of Positions: 2
• Lamp Type: LED
• Lens Color: Amber
• Actuator Style: Extended Button
• Contact Rating: NEMA A600/P600
• Enclosure Rating: NEMA 1/3/3R/4/4X/12/13, IP20, IP66
• Body Material: Metal, BlackMax/Epoxy Coated
• Operating Temperature: -35 to 70 degrees F
• Storage Temperature: -40 to 85 degrees F
• Certifications: UL Listed, CSA Certified (A600/P600)

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52bt6l9a
