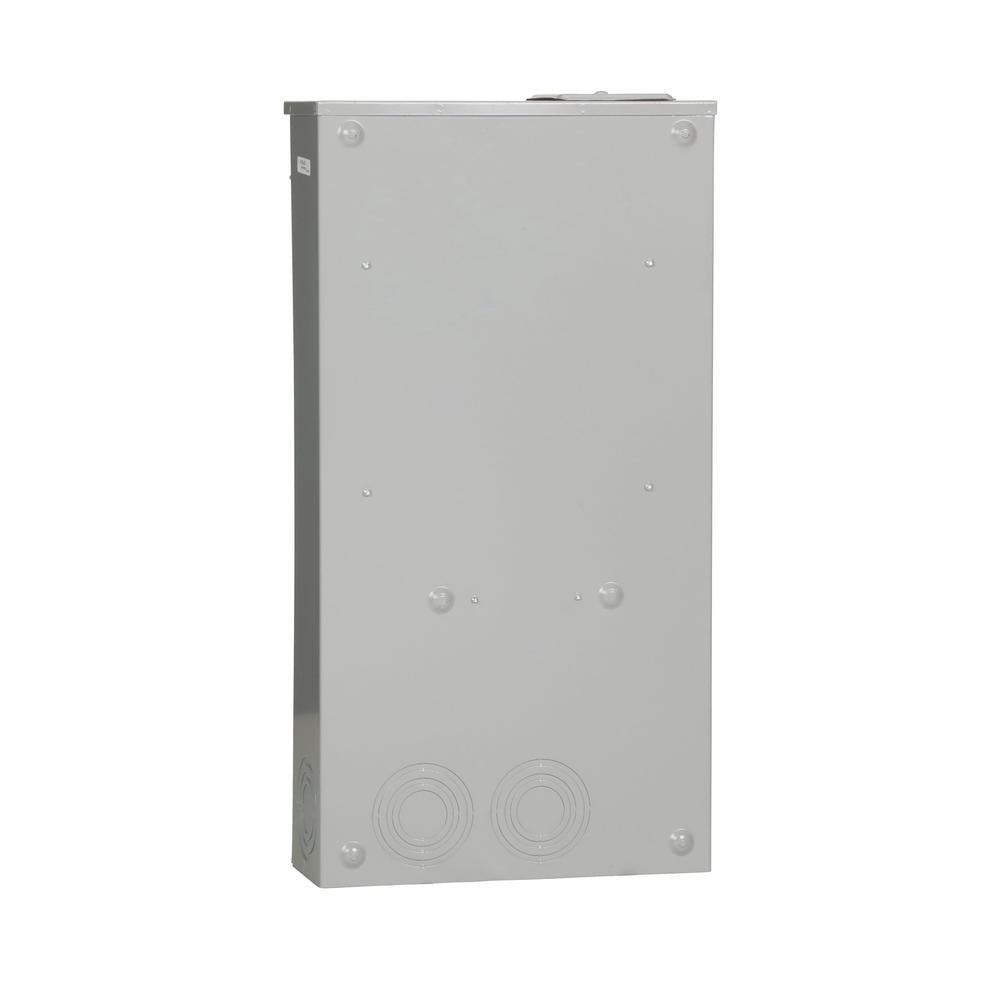

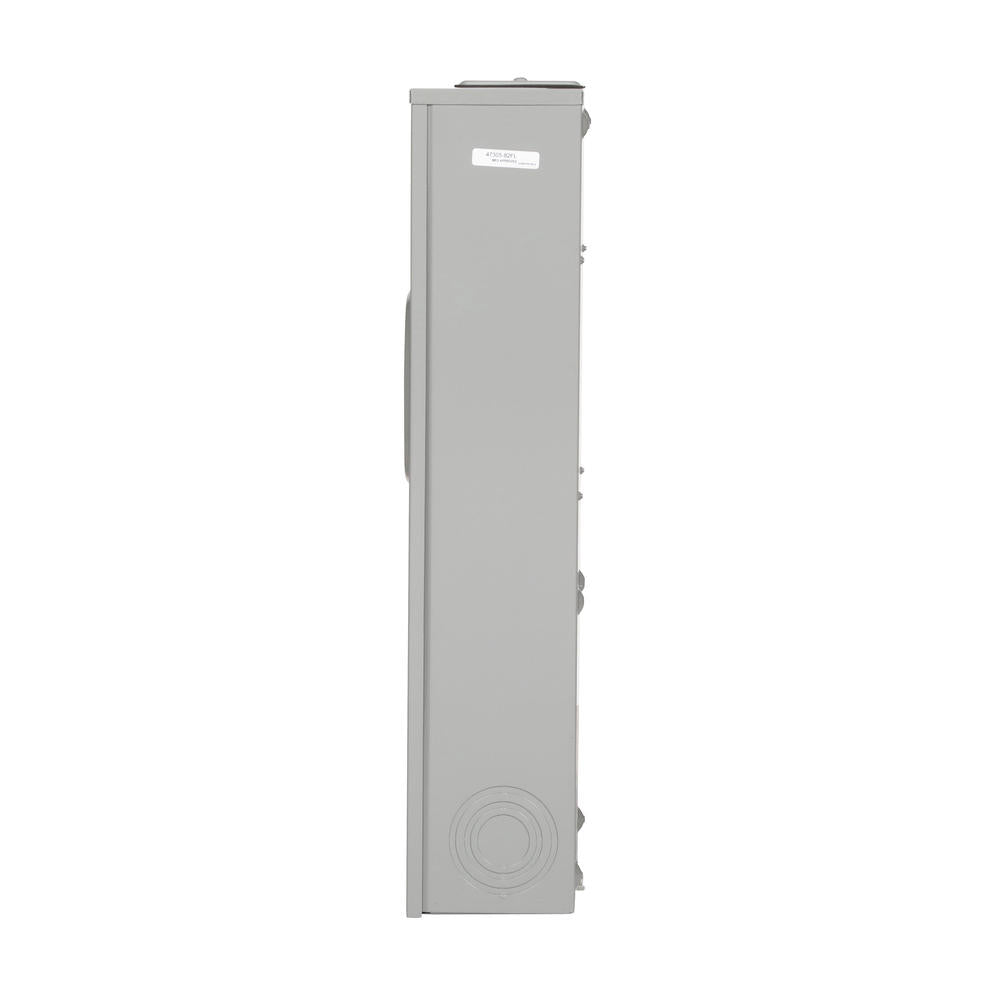

Siemens 47305-82FL Talon 1-Position Meter Socket 320A (1-Position)

Product Description

Siemens 47305-82FL is a Talon 1-position, ringless 5-jaw meter socket rated 320 A and 600 VAC for single-phase, 3-wire metering. It includes a cover lever bypass and is configured for overhead, underground, or sidewire applications. The unit ships with an HD-type hub cover plate, a ground, and a 5th terminal installed at the 9:00 o'clock position in a NEMA 3R outdoor steel enclosure.

• Rated 320 A (continuous) and 600 VAC for single-phase, 3-wire metering with a 5-jaw ringless design
• Cover lever bypass (100% rated) with clamping action on the meter; 5th terminal at 9:00 o'clock and supplied ground
• HD-type hub opening with cover plate installed; suitable for overhead, underground, and sidewire applications; NEMA 3R outdoor enclosure

Product Highlights

Single-position Talon meter socket, 5-jaw ringless design, 320 A/600 VAC rating, lever bypass, NEMA 3R outdoor enclosure

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 47305-82FL
