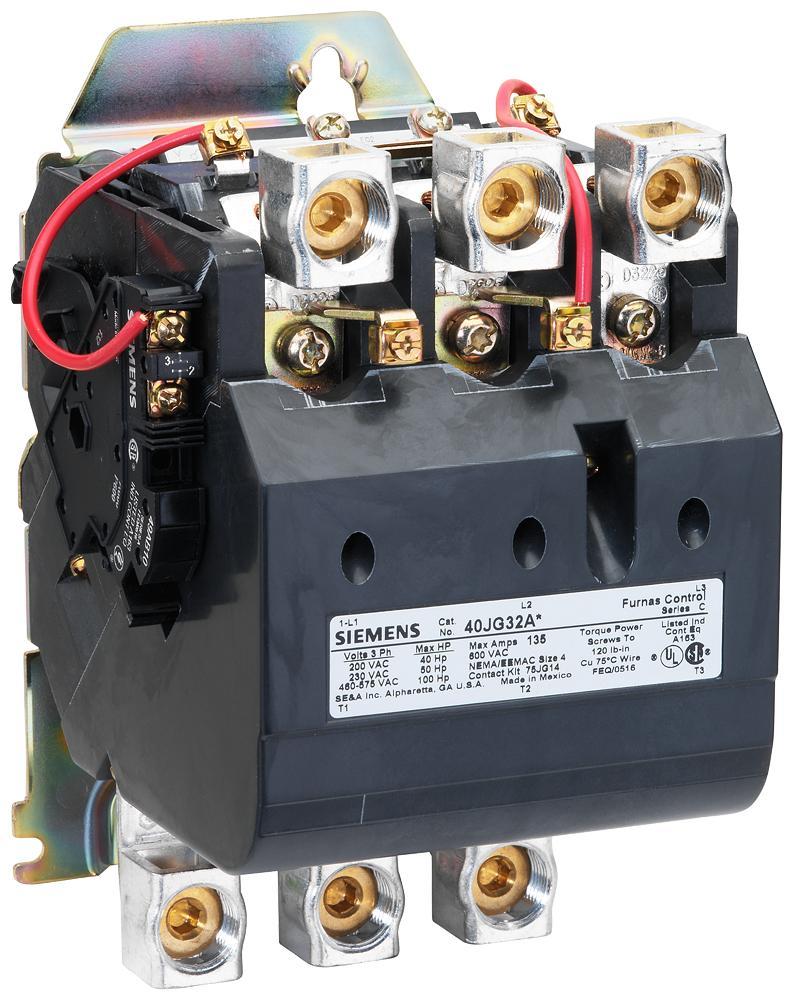

Siemens 40JG32AA NEMA Contactor 110-120/220-240VAC

Product Description

The Siemens 40JG32AA is a NEMA contactor with a 110 to 120/220 to 240 V AC coil and a maximum load current of 135 A. It features a non-reversing contact and an open enclosure. This contactor is suitable for surface mounting and has dimensions of 7.82 in H x 6.75 in W x 5.75 in D. Use cases include motor starting, lighting, and other electrical loads.

• Three phase full voltage
• 5000000 mechanical service life of the main contacts typical
• 1NO contact configuration

Product Highlights

NEMA contactor with 110 to 120/220 to 240 V AC coil, 135 A maximum load current, and open enclosure.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 40JG32AA
• Country of Origin: US

Technical Specifications

• Brand: Siemens
• MPN: 40JG32AA
• UPC: Does not apply
• Coil Power Rating: 510 VA Pickup, 51 VA Holding
• Coil Voltage: 110 to 120/220 to 240 V AC
• Enclosure Type: Open
• Operating Temperature: -20 to 40 deg C
• Size: SZ 4
• Maximum Load Current: 135 A
• Frequency: 60 Hz
• Contact: Non-Reversing Contact
• Contact Configuration: 1NO Contact Configuration
• Terminal: Screw Terminal
• Mounting Type: Surface Mounting
