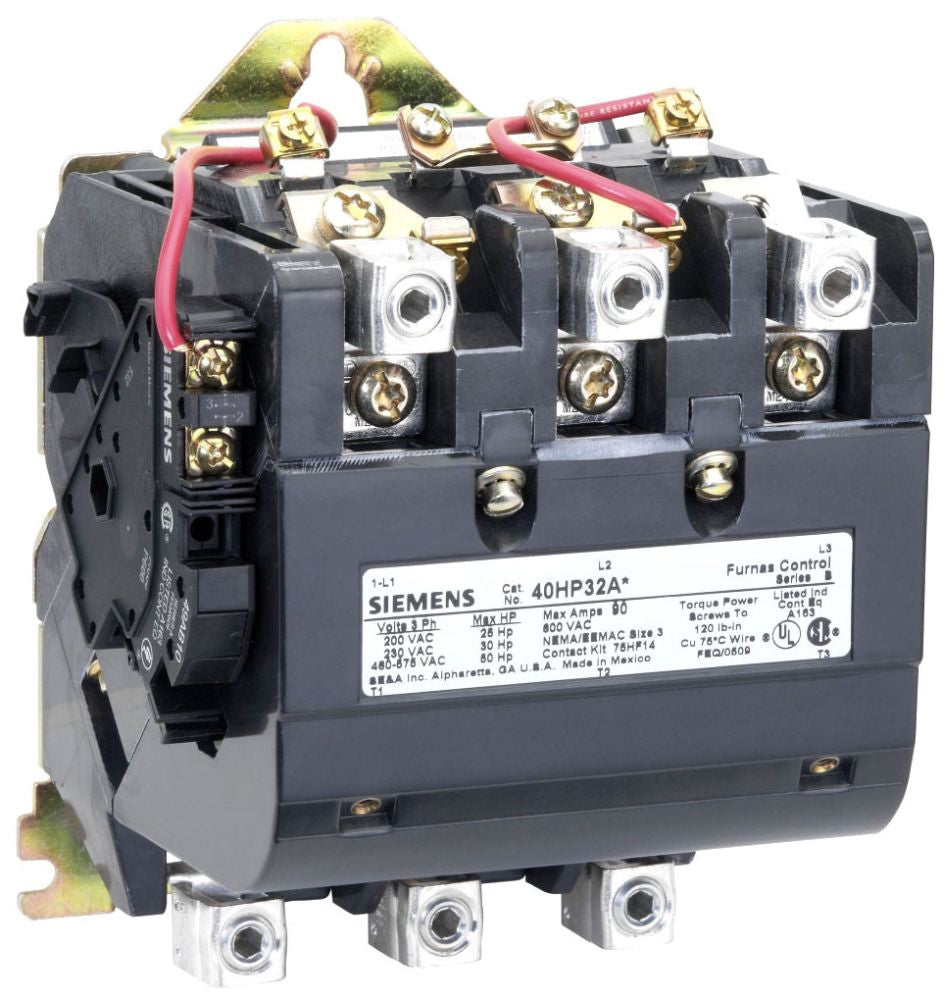

Siemens 40HP32AF Contactor, Sz3,3ph,Opn,120v

Product Description

The SIEMENS 40HP32AF is a NEMA magnetic contactor that connects and disconnects power to motors, machinery, and other high-current equipment in a single direction. It combines with overload relays to create motor load starters and provide overload protection. Compatible auxiliaries can be added to increase the functionality of contactors.

• NEMA Size 3
• Coil Voltage 110/120V AC
• Full Load Current - Inductive 90 A

Product Highlights

This Siemens contactor is ideal for use in various industrial applications requiring reliable power control.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 40HP32AF
• Country of Origin: MEX

Technical Specifications

• Buy Line: SIE
• Country Of Origin: MEX
• Manufacturer Part Number: 40HP32AF
• Series: 40
• Contactor Style: NEMA
• Reversing Capability: Non-Reversing
• Number of Poles: 3
• Main Power Pole Contact Form: 3NO
• Phase: Three
• Includes Auxiliary Contacts: Yes
• Auxiliary Contacts Included: 1NO
• NEMA Size: 3
• Full Load Current - Inductive: 90 A
• Coil Voltage: 110/120V AC
• Frequency: 50/60 Hz
• Nominal Coil Voltage @ 60Hz: 120V AC
• Maximum Voltage Rating: 600V AC
• Horsepower @ Three Phase - 208V AC: 25 hp
• Horsepower @ Three Phase - 240V AC: 30 hp
• Horsepower @ Three Phase - 480V AC: 50 hp
• Horsepower @ Three Phase - 600V AC: 50 hp
• Embedded Surge Suppressor - NEW: No
• Wire Termination Type: Screw
• NEMA Enclosure Rating: No Enclosure
• Overall Height: 6.13 in
• Overall Width: 5.5 in
• Overall Depth: 5.06 in
• Mounting Style: Surface
• Mounting Postion: Vertical
• Mechanical Operating Durability: 5,000,000
• Response Time: 14 to 19 msec (OFF-Delay Time); 26 to 41 msec (ON-Delay Time)
• Minimum Operating Temperature: -4 00b0F
• Maximum Operating Temperature: 104 00b0F
• Standards: REACH Art 33
• UNSPSC: 39121529
• Auxiliary Contact Form: 1NO
• Frame / Series / Class / Code: Class 40
• Full Load Amps: 90 A
• HP @ 3 Phase - 208V: 25 hp
• HP @ 3 Phase - 240V: 30 hp
• HP @ 3 Phase - 480V: 50 hp
• HP @ 3 Phase - 575V: 50 hp
• Height: 6.13 in
• Hz: 60
• NEMA Contactor Size: 3
• Reversing: No
• Width: 5.13 in
• Input Voltage: 460 V, 230 V, 575 V, 200 V
