Siemens 3VA5560-5EC32-0AA0 3VA5,FS 600A

Product Description

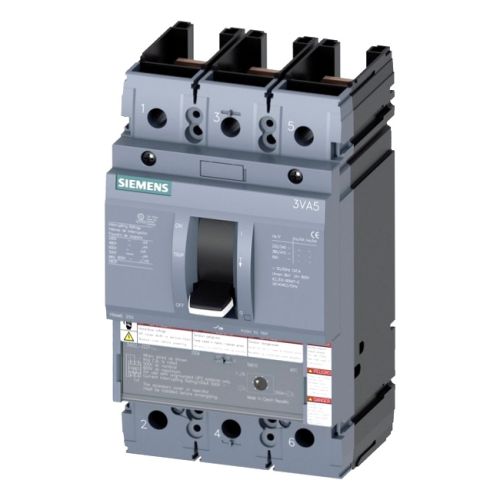

The SIEMENS 3VA5560-5EC32-0AA0 is a 3VA5, FS molded case circuit breaker with 600A amperage. Designed for reliable performance at 480 and 600 V, this 600 A circuit breaker features robust interrupt capabilities and a thermal magnetic trip for superior protection. Perfect for a variety of applications, it combines durability with easy installation.

• 3 Pole
• Suitable for Reverse Fed Applications
• Thermal Magnetic Trip

Product Highlights

This circuit breaker is engineered for heavy-duty industrial applications and fits Siemens P5 panelboards and switchboards.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3VA5560-5EC32-0AA0
• Country of Origin: Mexico

Technical Specifications

• Number of Poles: 3 Pole
• Brand: Siemens
• Sub Brand: Molded Case Circuit Breakers
• Amperage: 600A
• Voltage: 600VAC
• Voltage Type: AC
• Poles: 3
• Frame Type: 3VA
• Frame: 3VA55 800 A
• Trip Type: TM230 Thermal Magnetic
• Mounting Type: Fixed/Adjustable
• Enclosure Type: IP40
• Voltage Rating: 480, 600
• Connection Type: Lug Terminal/Nut Keeper
• Frequency Rating: 50 to 60
• Temperature Rating: -25 to 70
• Type: UL Molded Case
• Series: 3VA5
• Amperage Rating: 600
• Phase: 3
• AIC Rating: 85kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 50kA @ 500VDC
• Mounting Style: Panel Mount
• Terminal Type: Nut Keeper
• For Use With: Siemens P5 Panelboards, Switchboards
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Adjustable Magnetic
• Available Options: Auxiliary Switch, Shunt Trip, Undervoltage Release, Alarm Switch, Motor Operator, Handle Lock, Padlock Attachment
• Accessories: Nut Keeper Kit
• Standards: IEC 60947-2, UL 489, HACR
• Approval: ABS, CE, CSA, EAC, IEC, RCM, UL, VDE
• Temp Rating: -25C to 70C
• Construction Features: HACR Rated, Reverse Feed, Current Limiting
• Supplier: Siemens Energy
• Part No: 3VA5560-5EC32-0AA0
• Unit of Measure: Per Each
• RoHS: Yes
