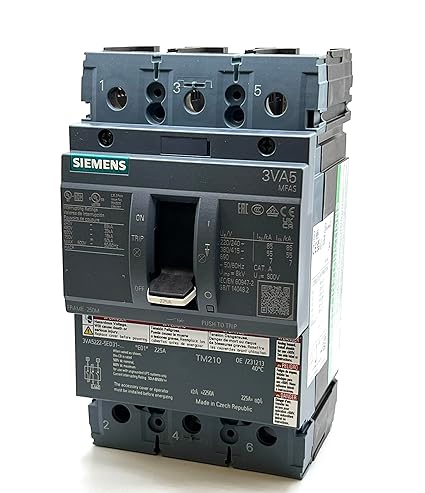

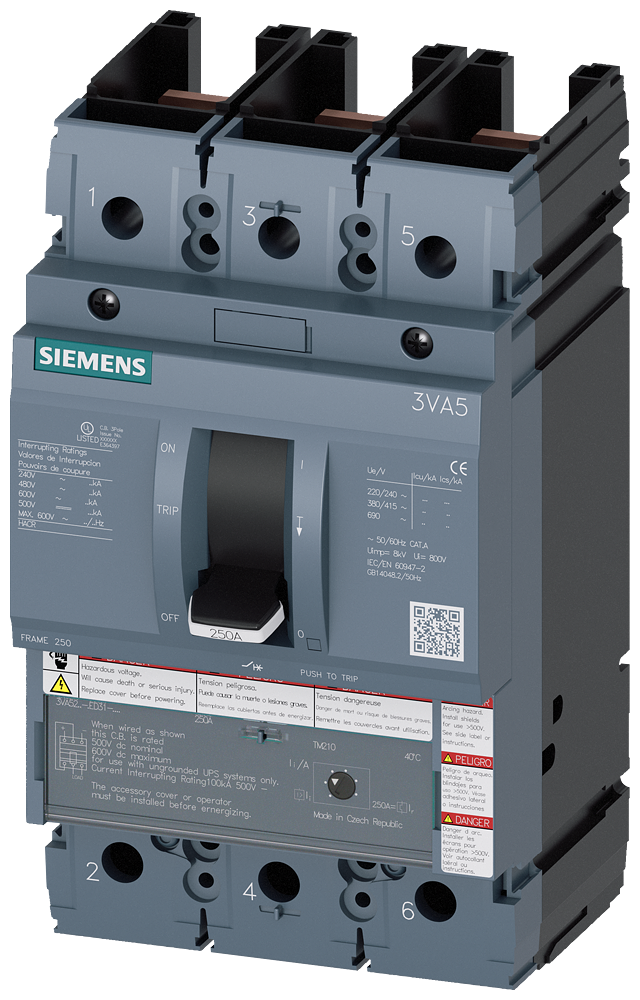

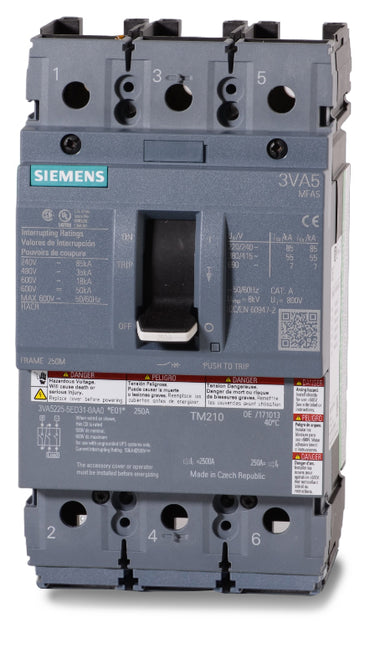

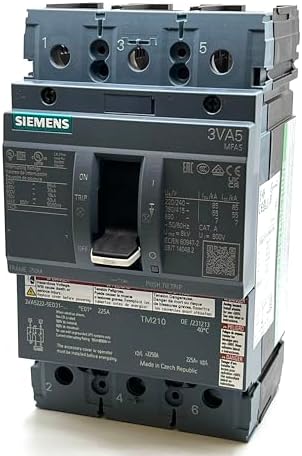

Siemens 3va5225-5ed31-0aa0 brkr 3va52 3

Product Description

The Siemens 3VA5225-5ED31-0AA0 BRKR 3VA52 3 is designed for heavy-duty power distribution, providing reliable protection for commercial, industrial, and marine environments. It installs into Siemens P1, P2, and P3 panelboards or motor control centers. The breaker features a TM210 trip unit with fixed thermal and magnetic settings and a Class M breaking capacity of 35kA at 480VAC.

• Designed for heavy-duty power distribution
• Provides reliable protection for commercial, industrial, and marine environments
• Installs into Siemens P1, P2, and P3 panelboards or motor control centers

Product Highlights

This Siemens breaker is ideal for power distribution, offering reliable protection and easy installation in various environments.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3VA5225-5ED31-0AA0
• Country of Origin: Czech Republic

Technical Specifications

• Type: Main Breaker
• Brand: Siemens
• Frame: 250A
• Width: 6.300 in
• Height: 5.91 Inch
• Length: 9.65 Inch
• Current: 250 Amp
• Voltage: 480 Volt
• Sub Brand: 3VA
• Trip Type: TM210 FIXED THERMAL FIXED MAGNETIC
• Number of Poles: 3 Pole
• Interrupt Rating: 35 kAIC
• Amperage: 250A
• AIC Rating: 85kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 50kA @ 750VDC
• Mounting Style: Panel Mount
• Terminal Type: Lugs
• For Use With: Siemens P1, P2, P3 Panelboards, SB Switchboards, Motor Control Centers
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Available Options: Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Rotary Handle, Padlock Attachment, Handle Lock
• Accessories: None (No Lugs Included)
• Standards: IEC 60947-2, UL 489, CSA C22.2 No. 5
• Approval: CE, CSA, EAC, UL, VDE
• Temp Rating: -25C to 70C
• Construction Features: HACR Rated, Current Limiting, Reverse Feed, Non-Interchangeable Trip
• Circuit Breaker Type: Standard
• Enclosure Type: IP40
• Frequency Rating: 50/60 Hz
• Mounting Type: Fixed
• Temperature Rating: -25 to 70 °C
• Amperage Rating: 250 A
• Voltage Rating: 690 VAC/750 VDC V
• Current Rating: 201-250 A
• Number of Phases: 3
• Alternate Catalog Number: 3VA5225-5ED31-0AA0
• Catalog Number: 3VA5225-5ED31-0AA0
• Connection: punched copper bar without any lug
