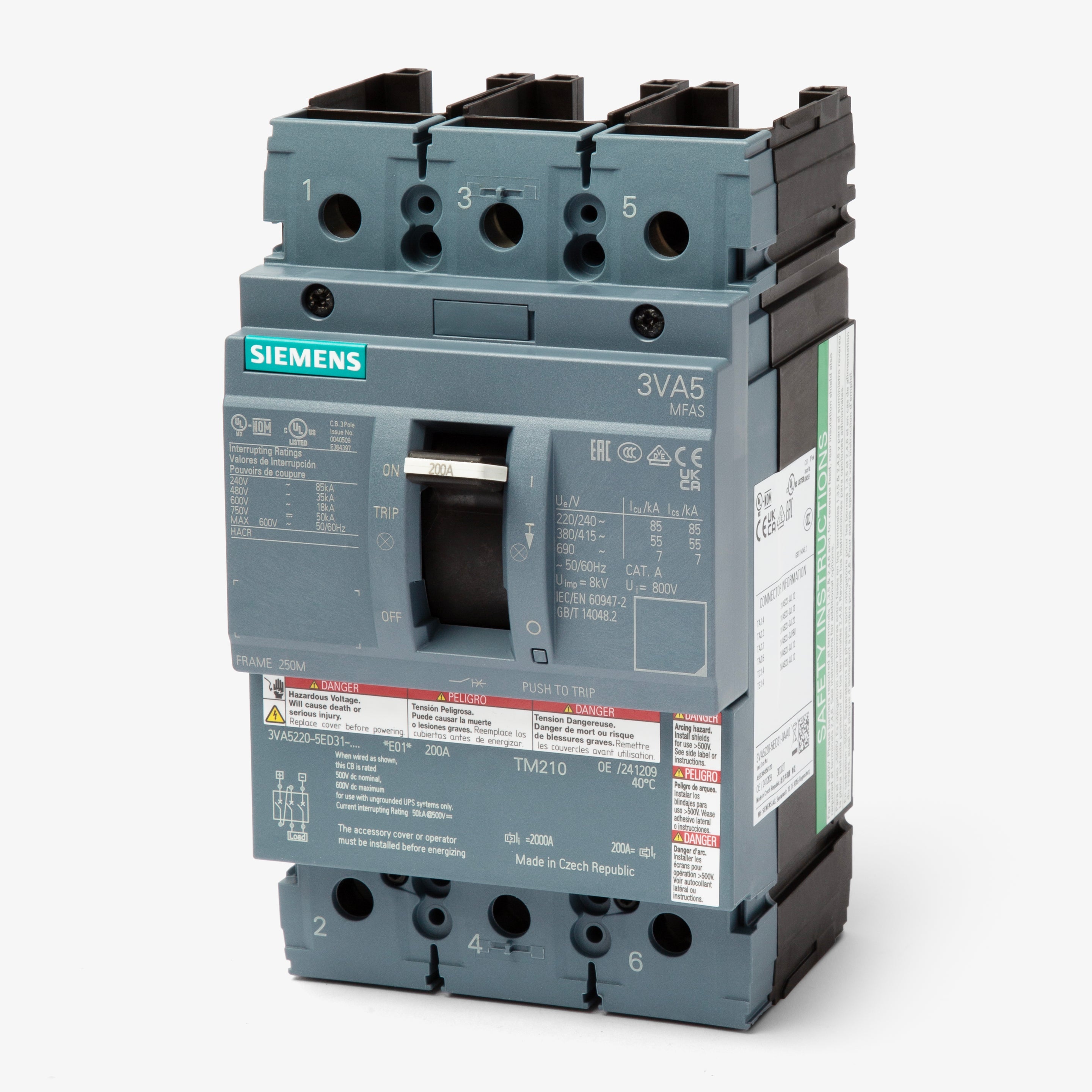

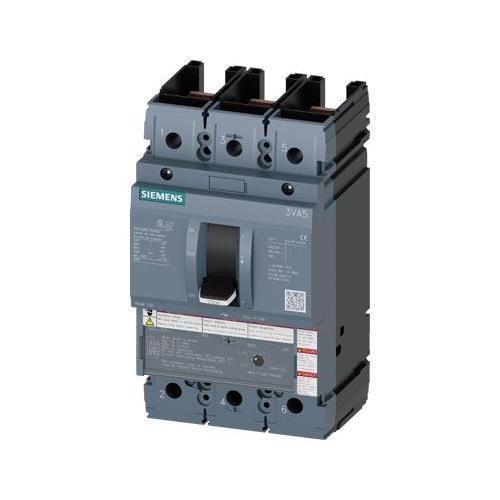

Siemens 3VA5220-5ED31-0AA0 Molded Case Circuit Breaker 200A

Product Description

The SIEMENS 3VA5220-5ED31-0AA0 is a low voltage UL molded case circuit breaker with a thermal-magnetic trip unit. This 3VA52 frame has a medium (class M) breaking capacity. It is a 200A 3-pole breaker with a TM210 trip unit, featuring fixed thermal and magnetic settings. It provides reliable protection for commercial, industrial, and marine environments.

• Feed-Thru connection
• 200 Amp
• 3 Pole

Product Highlights

The Siemens 3VA5220-5ED31-0AA0 circuit breaker is a reliable solution for circuit protection, featuring a compact design and easy-to-fit internal accessories.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 3VA5220-5ED31-0AA0

Technical Specifications

• Part Number: 3VA5220-5ED31-0AA0
• Manufacturer: Siemens / ITE
• Family: 3VA
• Pole: 3
• Amp: 200
• Volt: 600
• Phase: 3
• Category: Molded Case Circuit Breakers

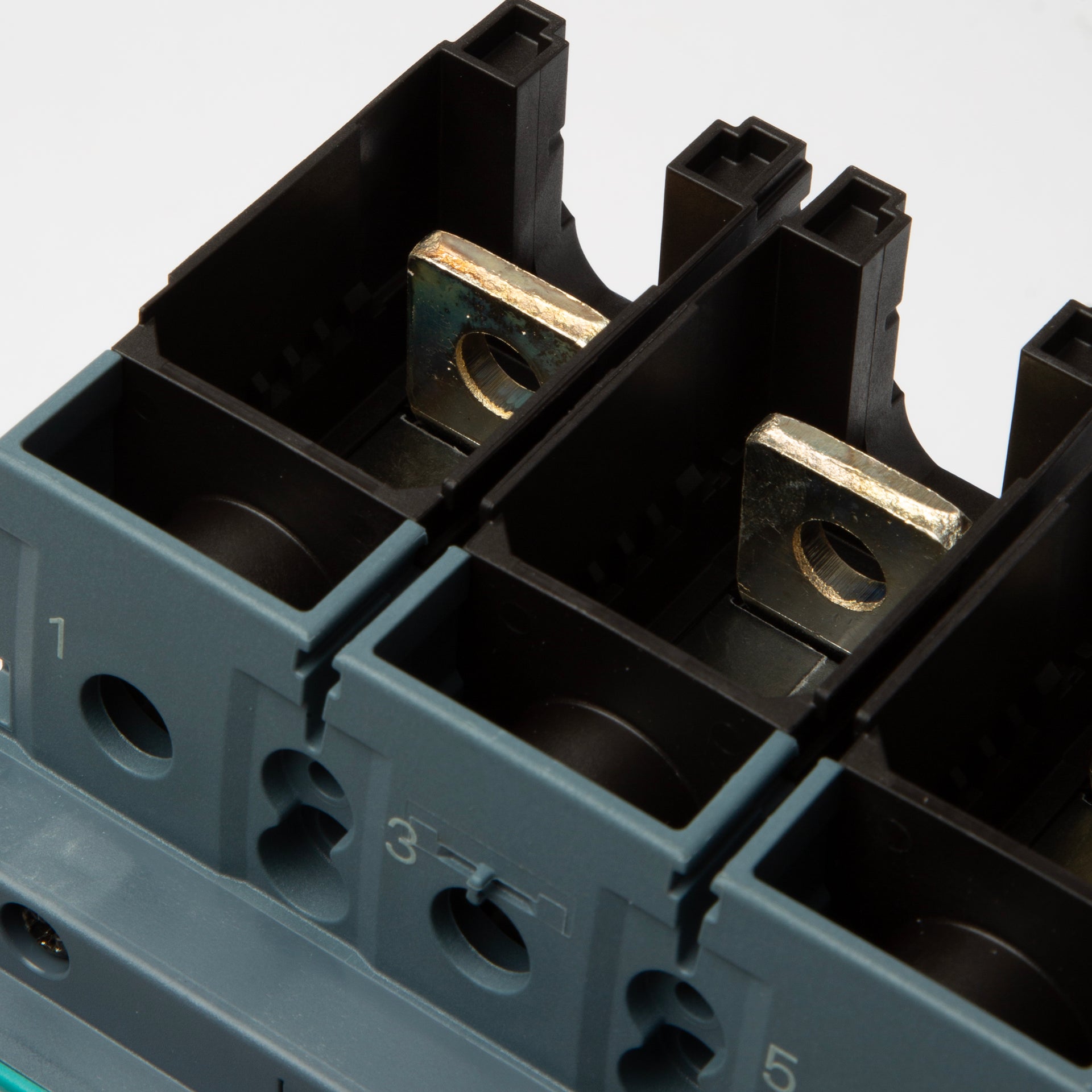

• Connection: Feed-Thru
• Protection: Thermal Magnetic
• AIC Ratings: 35kA@480V
• Brand: Siemens
• Series: 3VA5
• Amperage: 200A
• Voltage: 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC, 500VDC, 750VDC
• Poles: 3
• AIC Rating: 85kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 50kA @ 250VDC, 50kA @ 500VDC, 50kA @ 750VDC
• Mounting Style: Panel Mount
• Terminal Type: Lugs
• For Use With: Siemens 3VA Panelboards, Switchboards, Motor Control Centers
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Available Options: Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Handle Lock, Padlock Attachment, Busbar System, DIN Rail Adapter
• Accessories: Nut Keeper Plate
• Standards: IEC 60947-2, UL 489, HACR
• Approval: ABS, CE, CSA, cULus, DNV, EAC, GL, Lloyd's, RCM, UL, VDE
• Temp Rating: -25C to 70C
• Construction Features: HACR Rated, Reverse Feed
• Current Rating: 200 A
• Max Operating Temperature: 70 00b0C
• Min Operating Temperature: -25 00b0C
• Number of Poles: 3
• Voltage Rating (AC): 690 V
• Voltage Rating (DC): 750 V
• Environmental Classification: RoHS
• Enclosure Type: IP40
• Frequency Rating: 50/60
• Interrupt Rating: 35
• Mounting Type: Fixed
• Temperature Rating: -25 to 70
• Trip Type: Thermal Magnetic
• Voltage Rating: 690 VAC/750 VDC
